Sony MHC-V73D Service Manual

MHC-V73D
5
Sony CONFIDENTIAL
For Authorized Servicer
SERIAL NO.
MODEL NO. :
MHC-V73D

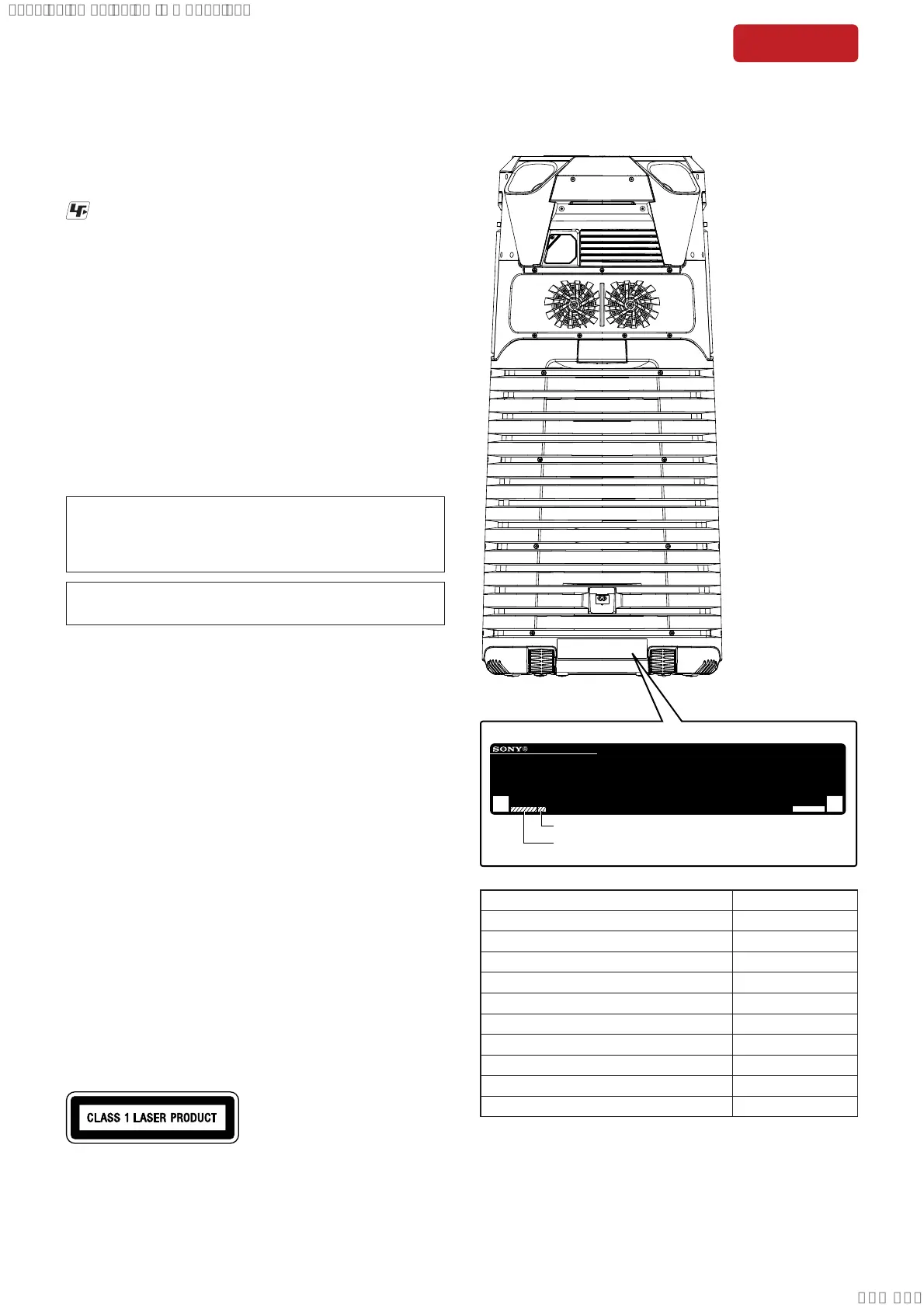

MODEL NUMBER LABEL
Destination Code
PART No.
– Rear view –
SECTION 1
SERVICING NOTES
SECTION 1
SERVICING NOTES
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the
leadfree mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to fl ow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specifi ed herein may result in hazardous
radiation exposure.
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suff er electrostatic
break-down because of the potential diff erence generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The fl exible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc refl ective surface by the objective lens in the optical pickup
block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
CAUTION
Caution – use of controls or adjustments or performance of proce-
dures other than those specifi ed herein may result in hazardous ra-
diation exposure.
This appliance is classifi ed as a CLASS 1 LASER product under
IEC 60825-1:2014.
When unpacking the carton, be sure that two people handle the unit.
Dropping the unit may cause personal injury and/or property dam-
age.
For customers in EA
CAUTION
Risk of explosion if the battery is replaced by an incorrect type.
Do not expose batteries or appliances with battery-installed to ex-
cessive heat, such as sunshine and fi re.
MODEL IDENTIFICATION
Model Part No.
LA9
5-014-070-0[]
AEP
5-014-070-1[]
AUS
5-014-070-3[]
E4
5-014-070-4[]
E12
5-014-070-5[]
RU
5-014-070-7[]
MY
5-014-070-8[]
AR
5-014-070-9[]
BR
5-014-072-2[]
EA
5-014-072-3[]
SYSSET
2020/06/1902:21:42(GMT+09:00)

Sony MHC-V73D Specifications

General

Type	Freestanding Public Address (PA) system
Control type	Buttons
Light effects	Yes
Product color	Black
Audio formats supported	MP3
Speaker type	-
Number of woofer drivers	1
Number of tweeter drivers	4
Wi-Fi	No
Bluetooth range	- m
Connectivity technology	Wired & Wireless
Power source type	AC
Power consumption (standby)	0.5 W
Frequency range	- Hz
RMS rated power	- W
Woofer diameter	300 mm
Tweeter diameter	40 mm
Country of origin	European Union

Weight and Dimensions

Depth	370 mm
Width	428 mm
Height	921 mm
Weight	21200 g
Package depth	416 mm
Package width	504 mm
Package height	997 mm
Package weight	2500 g
