Index to parts and controls
Refer to the pages indicated in parentheses ( ) for details.

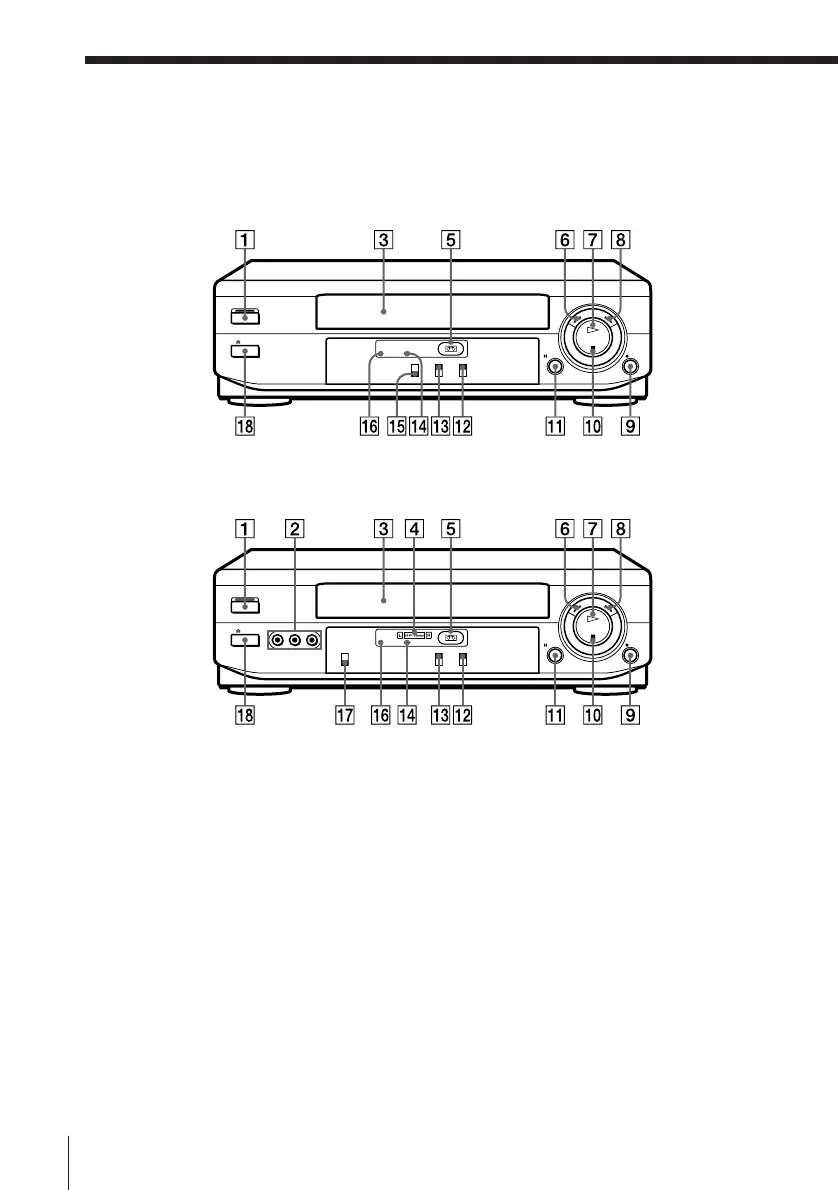

Front panel (SLV-XA147JE/MJ/PS)
Front panel (SLV-XF247ME/PS)
1 ON/STANDBY switch/indicator (8)
2 LINE 2 IN VIDEO/AUDIO L/R jacks
(SLV-XF247ME/PS only) (18)
3 Tape compartment
4 Hi-Fi Stereo/L/R indicators (SLV-
XF247ME/PS only) (13)
5 Tape operation indicators
6 03 REW button (11, 15)
7 · PLAY button (10)
8 )# FF button (11, 15)
9 r REC button (19)
!º p STOP button (11)
!¡ P PAUSE button (11)
!™ NTSC PB switch (11)
!£ COLOR SYSTEM switch (11)
!¢ REC (recording) indicator
!∞ TAPE SPEED switch (SLV-XA147JE/
MJ only) (19)
!§ Remote sensor (5)
!¶ INPUT SELECT switch (SLV-
XF247ME/PS only) (19)
!• § EJECT button (11)
REC
REC
