Sony MPK-THH - Page 2

– 2 –
MPK-THH
1
(Note)
2
21
23
26
24
25
4
4
3
5
4
14
(Note)
14
(Note)
6
7
8
9
12
12
10
11
13
13
15
16
17
18
19
20
20
Front Case Section
(See Page 3)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

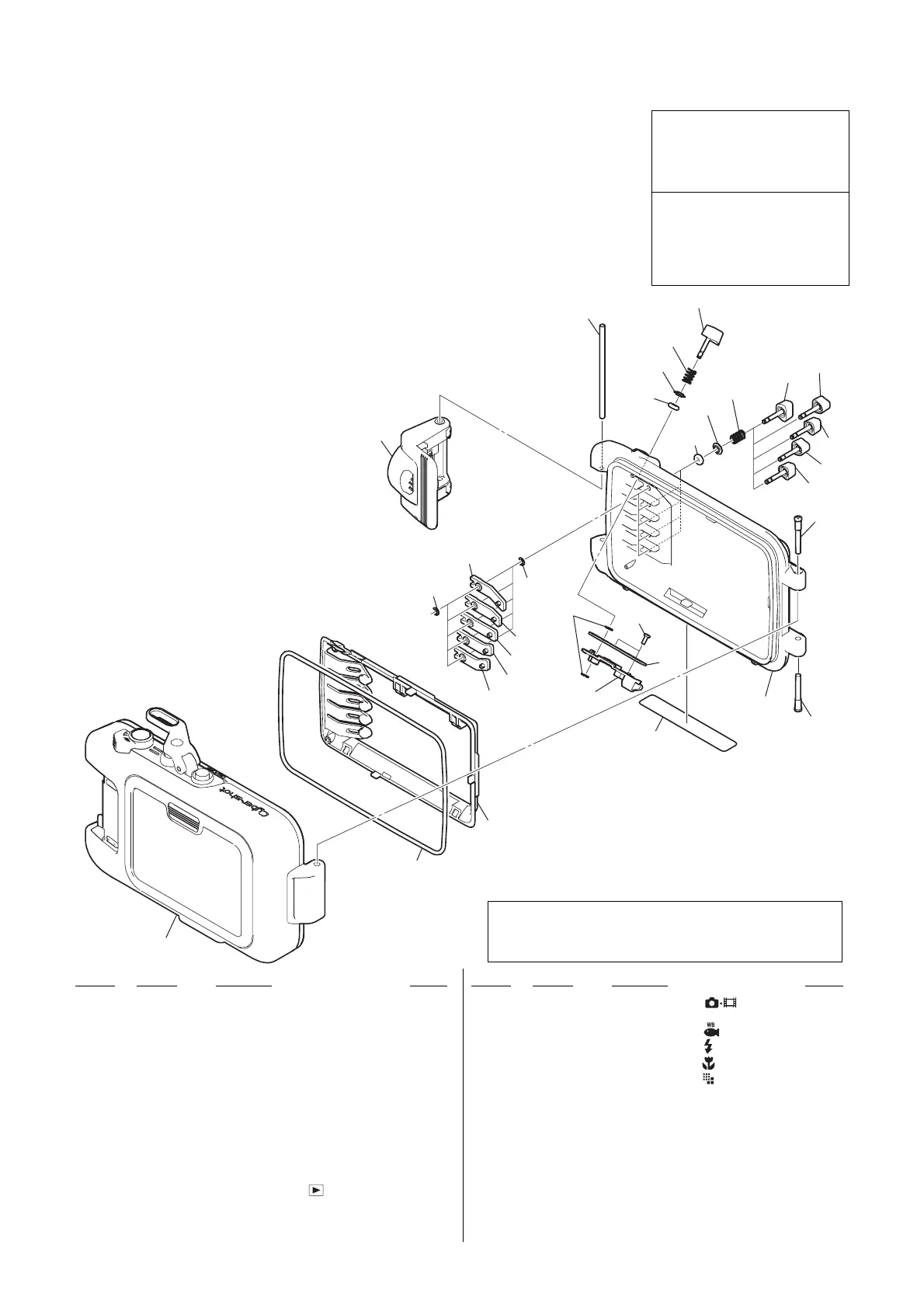

1-1. REAR CASE BLOCK
NOTE:
• -XX and -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Accessories are given in the last of the electrical
parts list.
• Abbreviation
CH : Chinese model
CND : Canadian model
0 1 4-115-566-01 O RING, MAIN (Note)
2 4-136-935-01 ATTACHMENT (R)
3 A-1703-787-A BUCKLE ASSY
4 2-589-173-01 RING (DIA. 1.5), E
5 4-115-555-01 LEVER (A), BUTTON
6 4-115-556-01 LEVER (B), BUTTON
7 4-115-557-01 LEVER (C), BUTTON
8 4-115-558-01 LEVER (D), BUTTON
9 4-115-559-01 LEVER (E), BUTTON
10 4-119-161-01 SHAFT (DIA. 2.5X55), BUCKLE
11 4-115-553-01 PUCH BUTTON C ( )
12 4-147-497-01 SPRING, PUCH BUTTON
13 4-115-536-01 RETAINER, O RING
0 14 3-099-234-01 O RING (P2-A) (Note)
15 4-115-551-01 PUCH BUTTON A ( )
16 4-115-552-01 PUCH BUTTON B ( )
17 4-115-552-11 PUCH BUTTON B ( )
18 4-115-552-21 PUCH BUTTON B ( )
19 4-115-552-31 PUCH BUTTON B ( )
20 3-099-285-01 SHAFT, HINGE
21 4-115-550-01 CASE, REAR
23 4-136-936-01 REINFORCEMENT (PLAY)
24 4-136-937-01 LEVER (PLAY), BUTTON
25 4-119-159-01 SCREW (1.7X4 #0-3), TP
∗ 26 3-209-949-01 LABEL, O RING CAUTION (US, CND, AEP)
∗ 26 3-209-950-01 LABEL, O RING CAUTION (CN) (CH)
The marked “0” are parts in relation
to waterproof.
Replace these components with Sony
parts.
Be sure to check up waterproof after
repair.
La 0 marquée sont des pièces par
rapport à imperméable à l’eau.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Soyez sûr de vérifier vers le haut
d’imperméable à l’eau après la
réparation.
Note: When putting grease the O ring (Ref. No. 1 and 14), always
use the grease of the blue tube of the accessory. When using
the grease of the yellow tube and the grease of the other Inc.,
it hurts a O ring and it causes the water leakage.
