128
Executing a Transition
Chapter 3 Signal Selection and Transitions
In a non-sync state, two lit LEDs indicate the position from which a normal
transition can be carried out. This is either at one end position or both end
positions of the fader lever travel.
Moving the fader lever toward the position of the lit LEDs does not carry out a
transition, but when the fader lever reaches the end position the non-sync state
is released, and it is now possible to carry out the next transition.
• If the fader lever is moved in the direction away from the lit LEDs, this
carries out the next transition, over the remaining part of the fader lever
travel.
• Even in a non-sync state, you can carry out an auto transition by pressing the
[AUTO TRANS] button. During the auto transition, the indicators show the
transition progress in the usual way, but when the transition completes, they
once again indicate the non-sync state.
Fader Lever Operation in Bus Fixed Mode
Flip-flop mode and bus fixed mode
The following describes the difference between flip-flop mode and bus fixed
mode, taking an M/E bank as an example; the functionality is the same,
however, on the PGM/PST bank.
Normally, when a background transition is carried out on an M/E bank, the
signals selected on the A and B rows of cross-point buttons are interchanged at
the end of the transition. That is to say, except during a transition, the

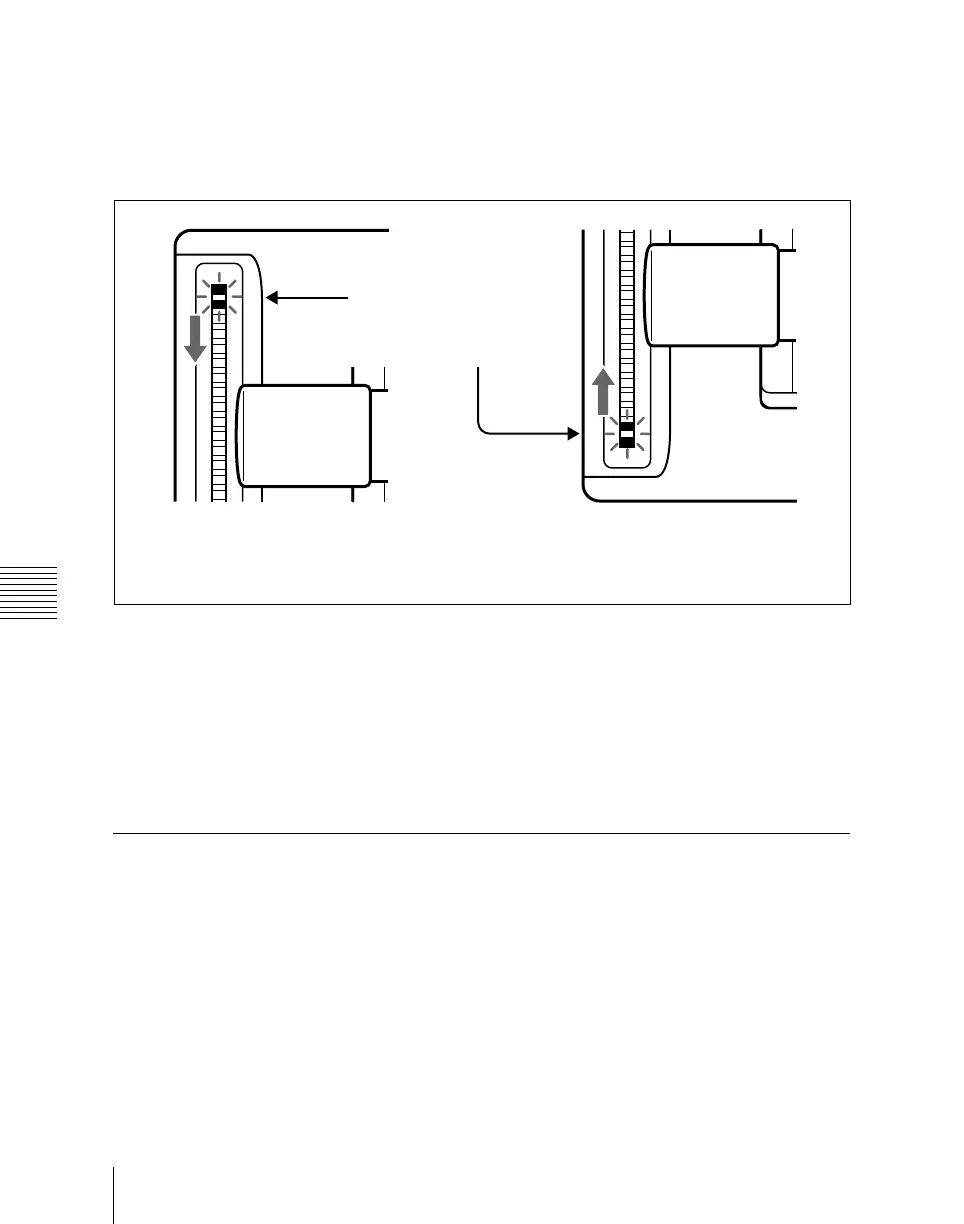

Manual transition completed as auto
transition when moving the fader
lever upward: Top two LEDs light.
Manual transition completed as
auto transition when moving the
fader lever downward: Bottom two
LEDs light.
Once the fader lever is moved
to this position, the non-sync
state ends, and the next
transition (direction shown by
the arrow) is possible.
To Next Page
