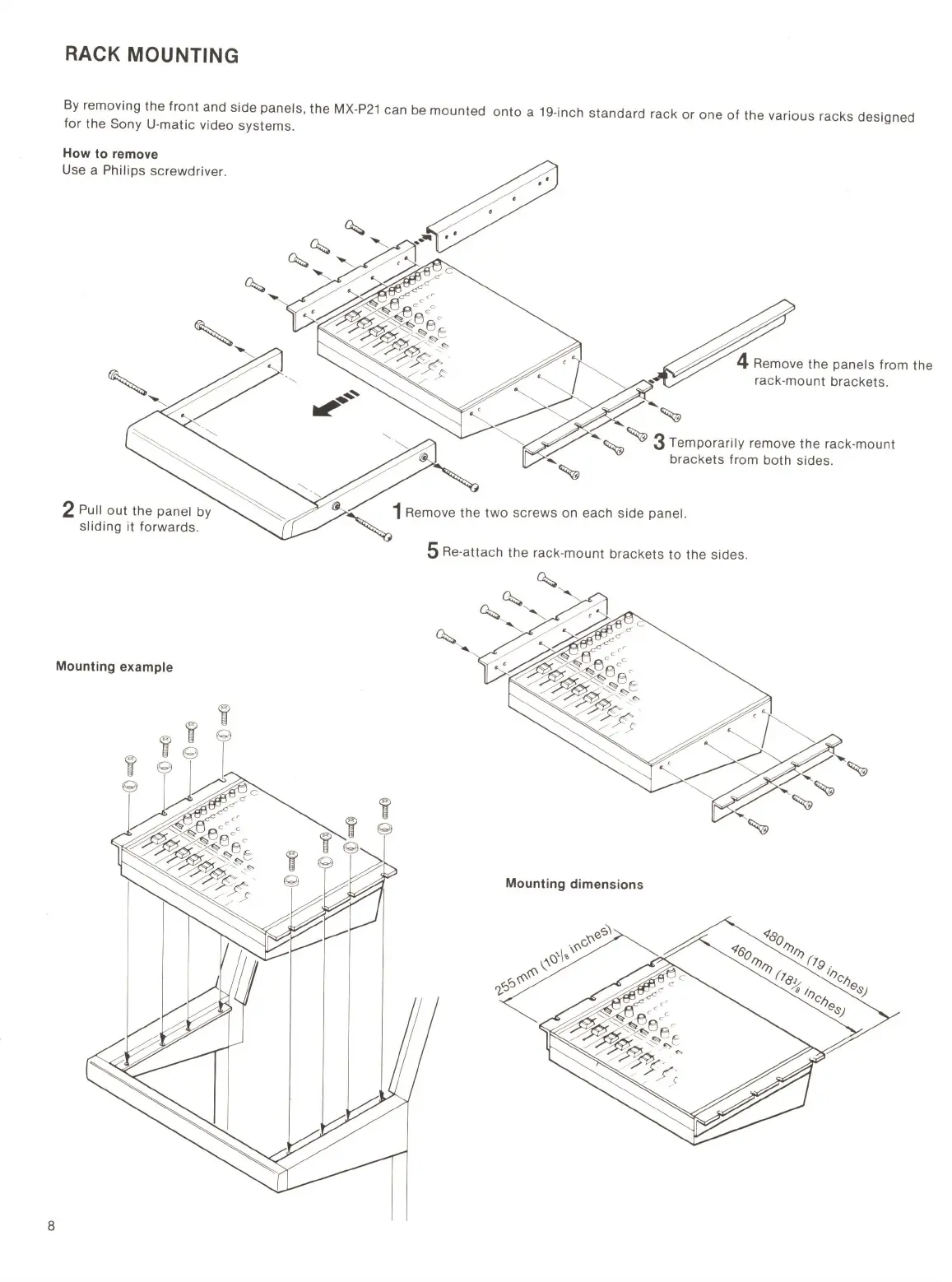

RACK MOUNTING
By removing the
front
and side
panels
, the MX-P21 can be
mounted
onto
a 19-inch
standard
rack
or
one
of
the
various
racks
designed
for
the Sony U-matic video
systems.
How to remove
Use a Philips screwdriver.
2
Pull
out
the panel by
sliding
it
forwards.
Mounting example
8
¾
¾¾
C c'
-...C
C C
~
et
C
.....
::-,,
e
>
~~
-v_,
(;;:>
/
'
4
Remove the panels from the
rack-mount brackets.
...._
......___
, '
3
Temporarily
remove the rack-mount
brackets
from
both
sides.
1
Remove
the
two
screws
on each side panel.
5
Re
-attach
the
rack-mount
brackets
to
the sides.
i
Q
Mounting dimensions
