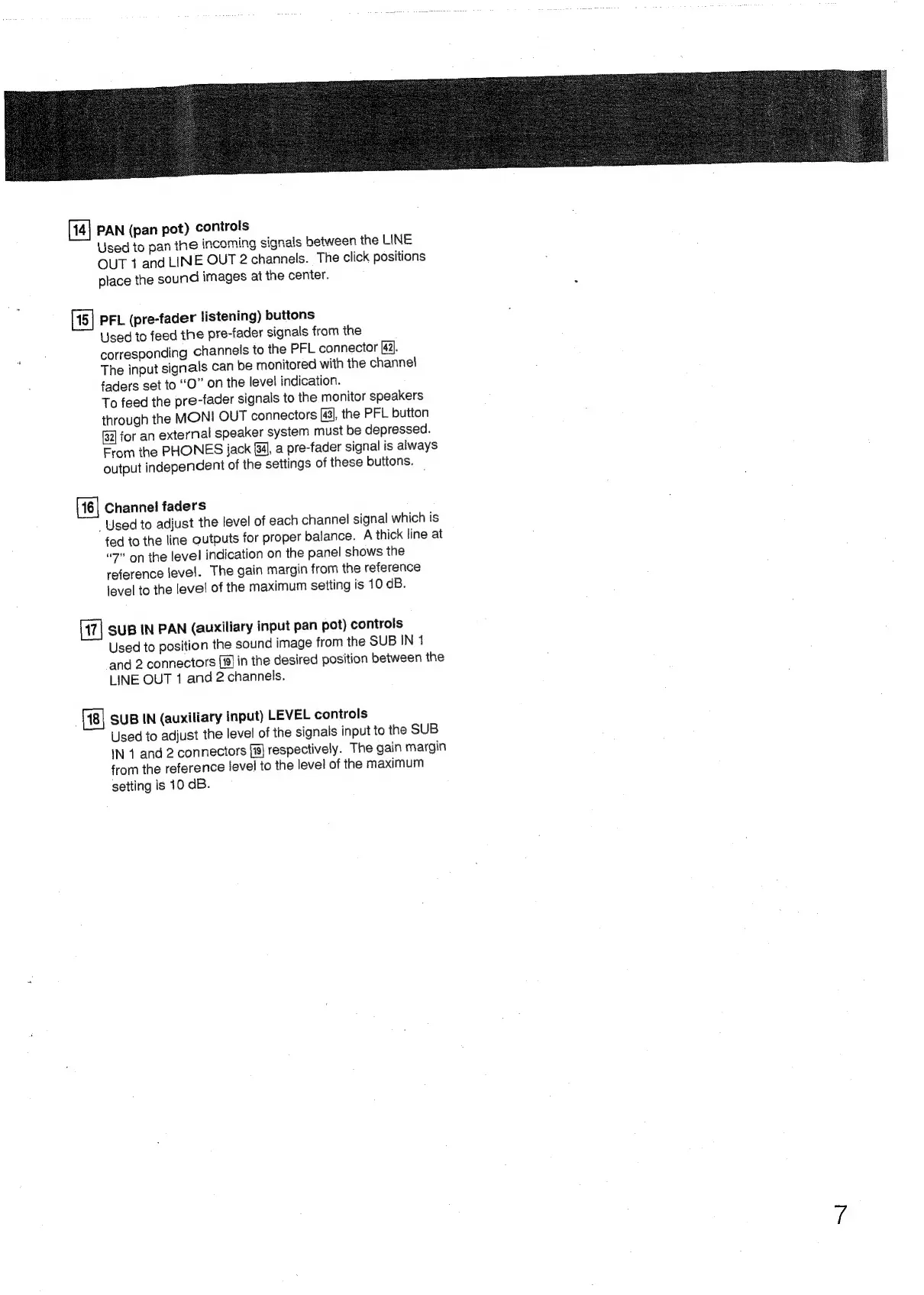

Sony MXP-210 - Page 7

PAN
(pan
pot)
controls
Used
to
pan
the
incoming
signals
between
the
LINE
OUT
1
and
LINE
OUT
2
channels.
The
click
positions
place
the
sound
images
at
the
center.
[15]
PFL
(pre-fader
listening)
buttons
Used
to
feed
the
pre-fader
signals
from
the
corresponding
channels
to
the
PFL
connector
[42].
The
input
signals
can
be
monitored
with
the
channel
faders
set
to
“O”
on
the
level
indication.
To
feed
the
pre-fader
signals
to
the
monitor
speakers
through
the
MONI
OUT
connectors
[43],
the
PFL
button
2]
for
an
external
speaker
system
must
be
depressed.
From
the
PHONES
jack
(34),
a
pre-fader
signal
is
always
output
independent
of
the
settings
of
these
buttons.
(16
|
Channel
faders
Used
to
adjust
the
level
of
each
channel
signal
which
is
fed
to
the
line
outputs
for
proper
balance.
A
thick
line
at
“7"
on
the
level
indication
on
the
panel
shows
the
reference
level.
The
gain
margin
from
the
reference
level
to
the
level
of
the
maximum
setting
is
10
dB.
SUB
IN
PAN
(auxiliary
input
pan
pot)
controls
Used
to
position
the
sound
from
the
SUB
IN
1
and
2
connectors
[19]
in
the
desired
position
between
the
LINE
OUT
1
and
2
channels.
SUB
IN
(auxiliary
input)
LEVEL
controls
Used
to
adjust
the
level
of
the
signals
input
to
the
SUB
IN
1
and
2
connectors
[18]
respectively.
The
gain
margin
from
the
reference
level
to
the
level
of
the
maximum
setting
is
10
dB.
