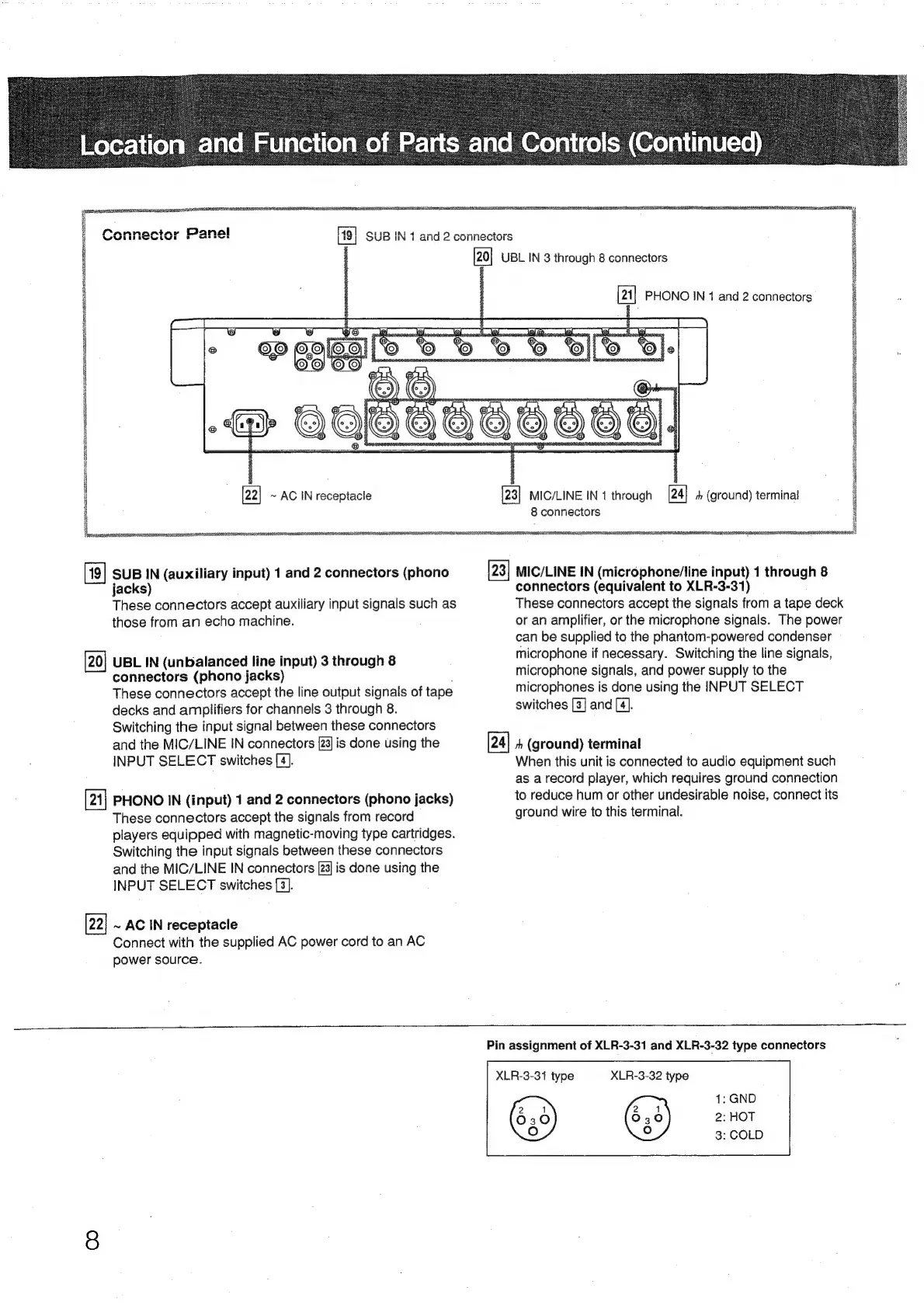

Connector Panel [49] SUB IN 1 and 2 connectors
UBL IN 3 through 8 connectors
[21] PHONO IN 1 and 2 connectors
[22] ~ AC IN receptacle
SUB IN (auxiliary input) 1 and 2 connectors (phono
jacks)
These connectors accept auxiliary input signals such as
those from an echo machine.
UBL IN (unbalanced line input) 3 through 8
connectors
(phono
jacks)
These connectors accept the line output signals of tape
decks and amplifiers for channels 3 through 8.
Switching the input signal between these connectors
and the MIC/LINE IN connectors [23] is done using the
INPUT SELECT switches [4].
[21] PHONO IN (input) 1 and 2 connectors (phono jacks)
These connectors accept the signals from record
players equipped with magnetic-moving type cartridges.
Switching the input signals between these connectors
and the MIC/LINE IN connectors [23] is done using the
INPUT SELECT switches [3].
[22] ~ AC IN receptacle
Connect with the supplied AC power cord to an AC
power source.
[23] MIC/LINE IN 14 through 4 (ground) terminal
8 connectors
$B anna: nian armen er Re RET
[23] MIC/LINE IN (microphone/line input) 1 through 8
connectors (equivalent to XLR-3-31)
These connectors accept the signals from a tape deck
or an amplifier, or the microphone signals. The power
can be supplied to the phantom-powered condenser
microphone if necessary. Switching the line signals,
microphone signals, and power supply to the
microphones is done using the INPUT SELECT
switches [3] and [4].
> (ground) terminal
When this unit is connected to audio equipment such
as a record player, which requires ground connection
to reduce hum or other undesirable noise, connect its
ground wire to this terminal.
Pin assignment of XLR-3-31 and XLR-3-32 type connectors
XLR-3-31 type XLR-3-32 type
1: GND
2: HOT
3: COLD
