Sony NW-HD3 - HDD Unit; Position of Ferrite Core

NW-HD3
8

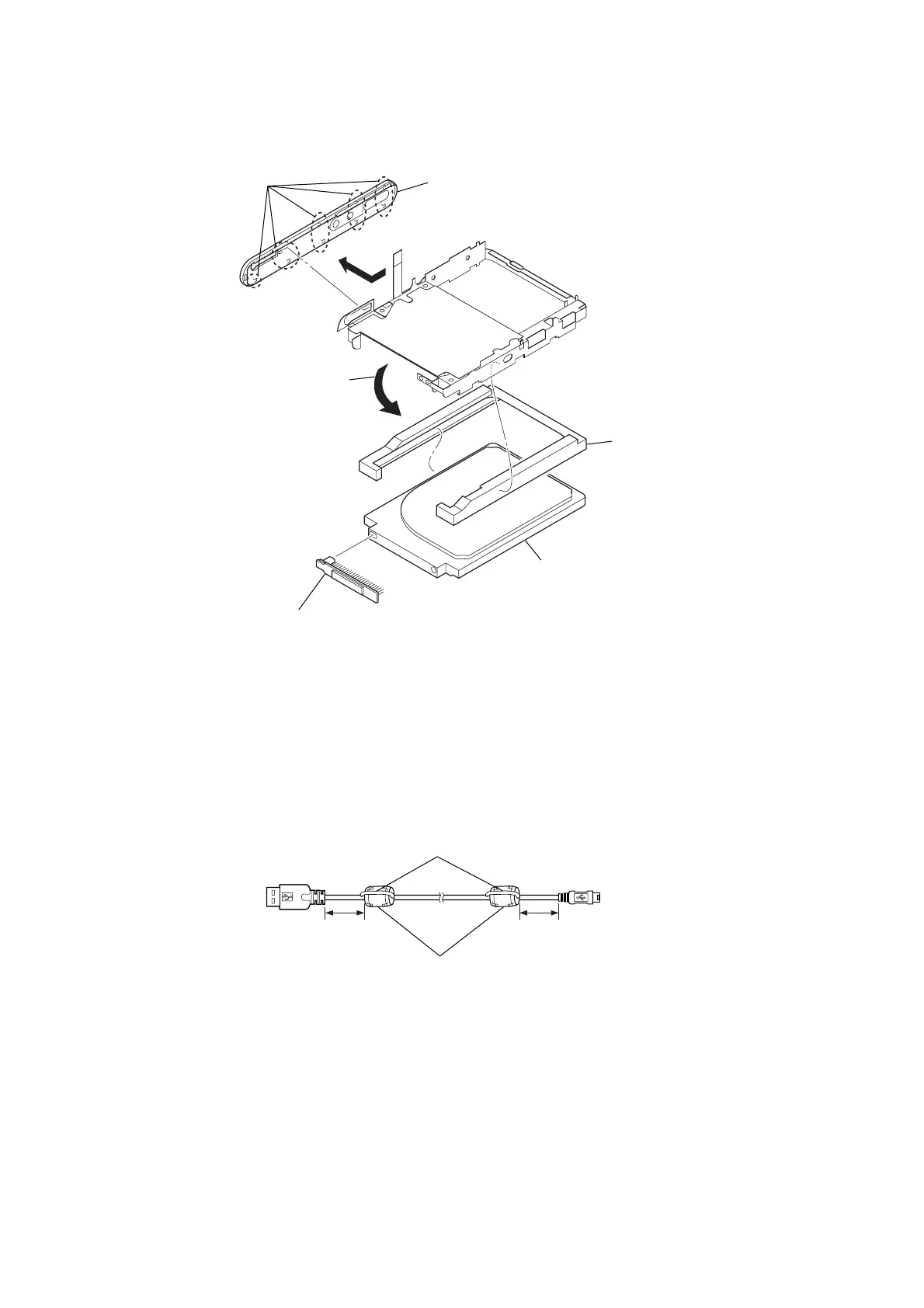

3-6. HDD UNIT
nine claws
A
B
2 Remove the HDD unit
in the direction of arrow
B .
3 insulato
r
5 HDD unit
1 Remove the cabinet (upper) sub assy
in the direction of arrow
A .
(nine claws)
4 HDD board
Note : Extraction and insertion of a HDD board is
performed perpendicularly.
3-7. POSITION OF FERRITE CORE
A cable is rolled once.
clamp filter (ferrite core)
(Part No. 1-543-798-11)
50mm50mm
