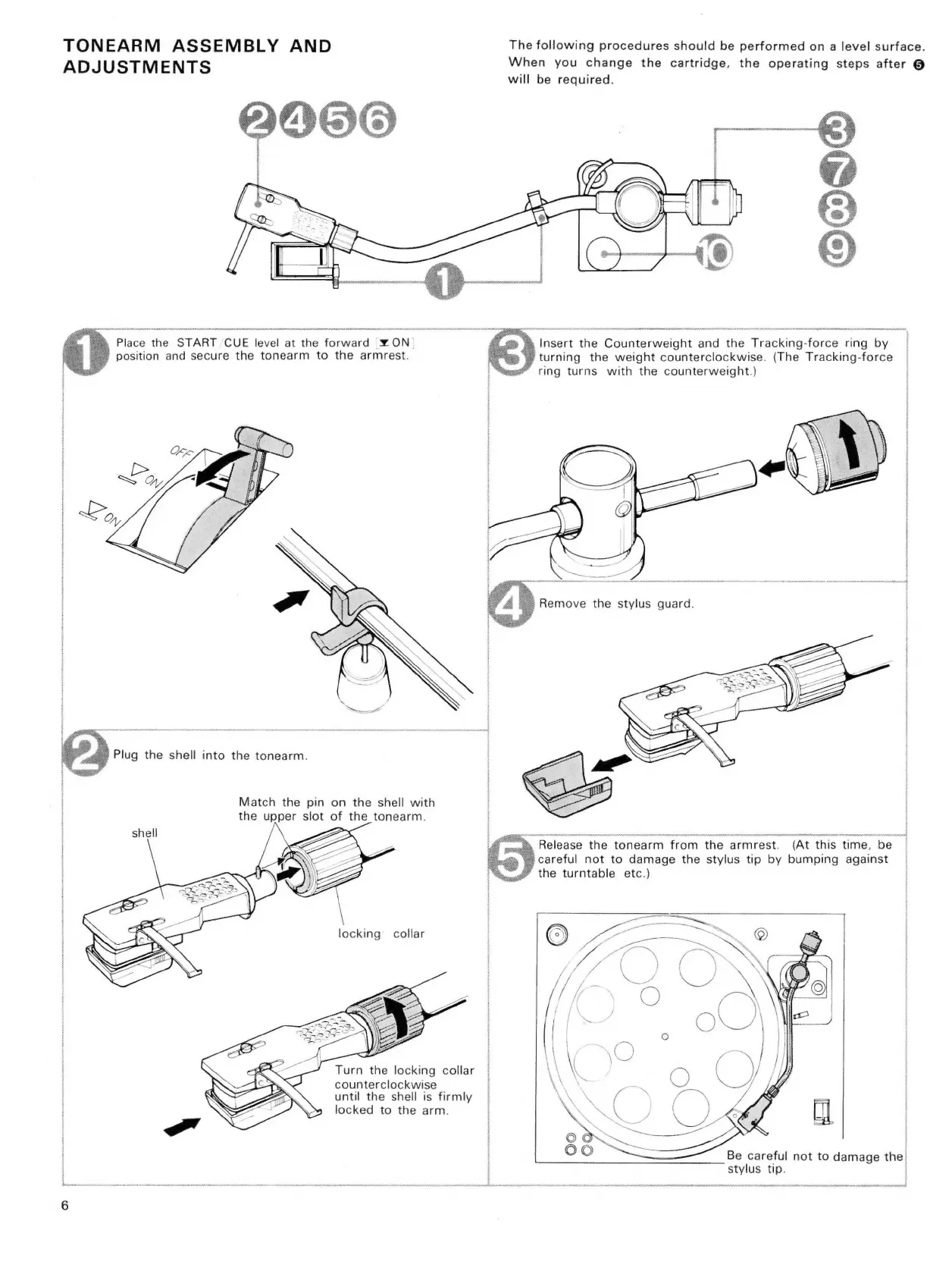

Sony PS-4750 - TONEARM ASSEMBLY AND ADJUSTMENTS

TONEARM ASSEMBLY AND The following procedures should be performed on a level surface.
ADJUSTMENTS
When
you
change
the
cartridge,
the
operating
steps
after
@
will
be
required.
nsert the Counterweight and the Tracking-force ring by
urning the weight counterclockwise. (The Tracking-force
ring turns with the counterweight.)
Place the START CUE level at the forward SON
position and secure the tonearm to the armrest.
Plug the shell into the tonearm.
Match the pin on the shell with
the upper slot of the tonearm.
Turn the locking collar
counterclockwise i y
until the shell is firmly : \
locked to the arm. i
Be careful not to damage the
stylus tip. i
