Sony PS-LX310BT Service Manual

PS-LX310BT
4
Sony CONFIDENTIAL
For Authorized Servicer
SECTION 1
SERVICING NOTES
The SERVICING NOTES contains important information for servicing. Be sure to read this section before repairing the unit.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to fl ow) than
ordinary solder so use caution not to let solder bridges occur
such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
MODEL IDENTIFICATION
When identifying the destination of this unit, check the Part No. and
destination code printed on the model number label on the bottom
side of the main unit.
Note: The Part No. suffi x printed on the model number label may be
changed in the midway of production.

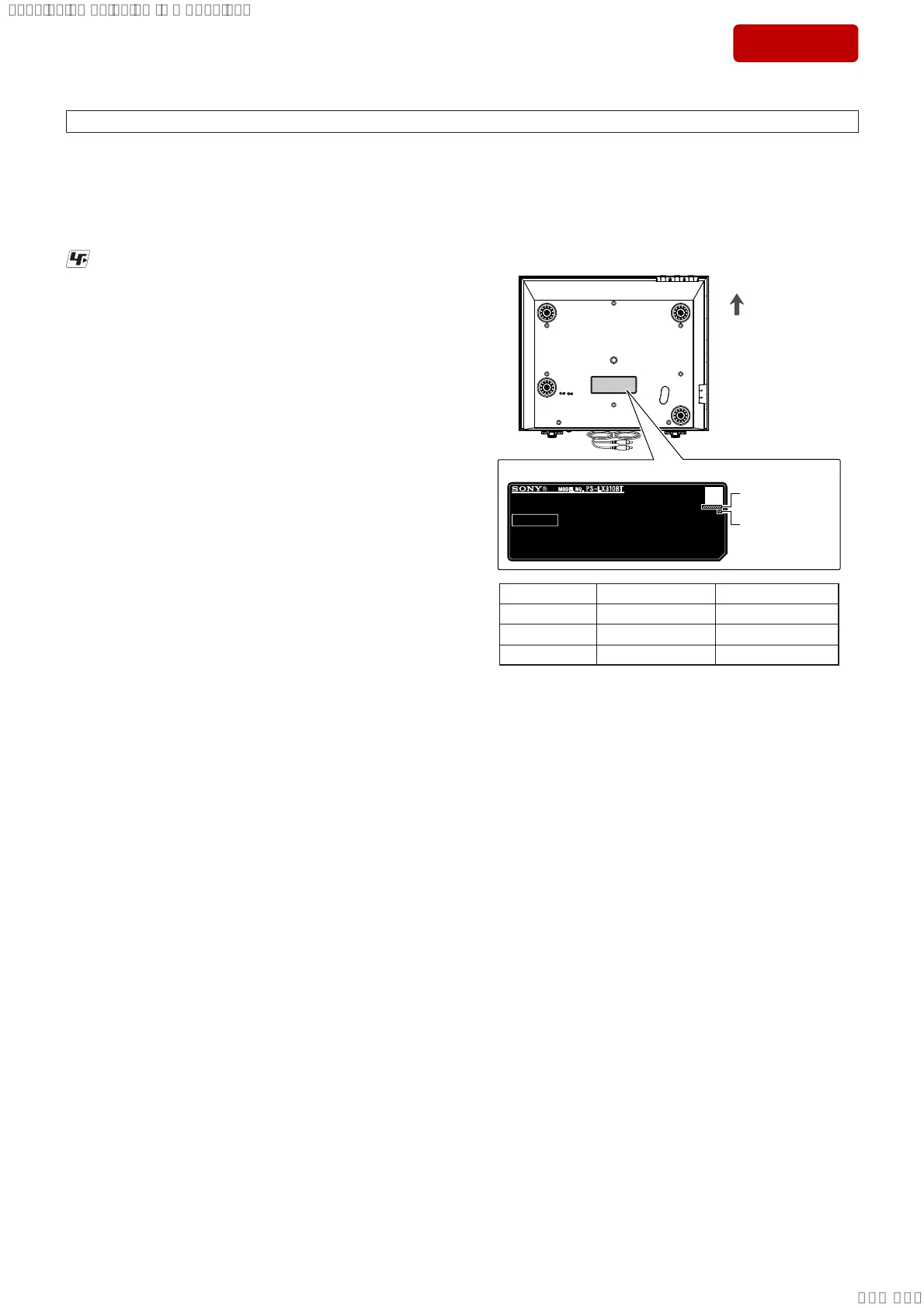

– Bottom view –
front side
Model number label
Part No.
Destination code
Part No.
Destination code Destination
5-000-939-01
UC2 US, CND
5-000-939-11
CEL AEP
5-000-939-21
CEK UK
DESTINATION ABBREVIATIONS
The following abbreviations for model destinations are used in this
service manual.
• Abbreviations
AEP : European area (Except for UK, Ireland), East European
area, CIS area (Moldova) and Middle East area (Israel)
models
CND : Canadian model
UK : European area (UK, Ireland) model
SYSSET
2019/02/2300:40:47(GMT+09:00)

Sony PS-LX310BT Specifications

General

Drive System	Belt Drive
Bluetooth	Yes
Speeds	33 1/3, 45 RPM
Phono Preamp	Built-in
USB Output	No
Platter	Aluminum die-cast
Tonearm	Static balance
Motor	DC motor
Phono Output	Yes
Line Output	Yes
Cartridge Type	MM (Moving Magnet)
Auto Start	Yes
Auto Stop	Yes
Bluetooth Version	4.2
Bluetooth Profiles	A2DP, AVRCP
Dimensions	430 mm x 108 mm x 367 mm
Weight	3.5 kg
Cartridge	AT3600L
Power Supply	DC 12 V
