Sony PS-X50 - Section 2 Disassembly; Component Removal Procedures

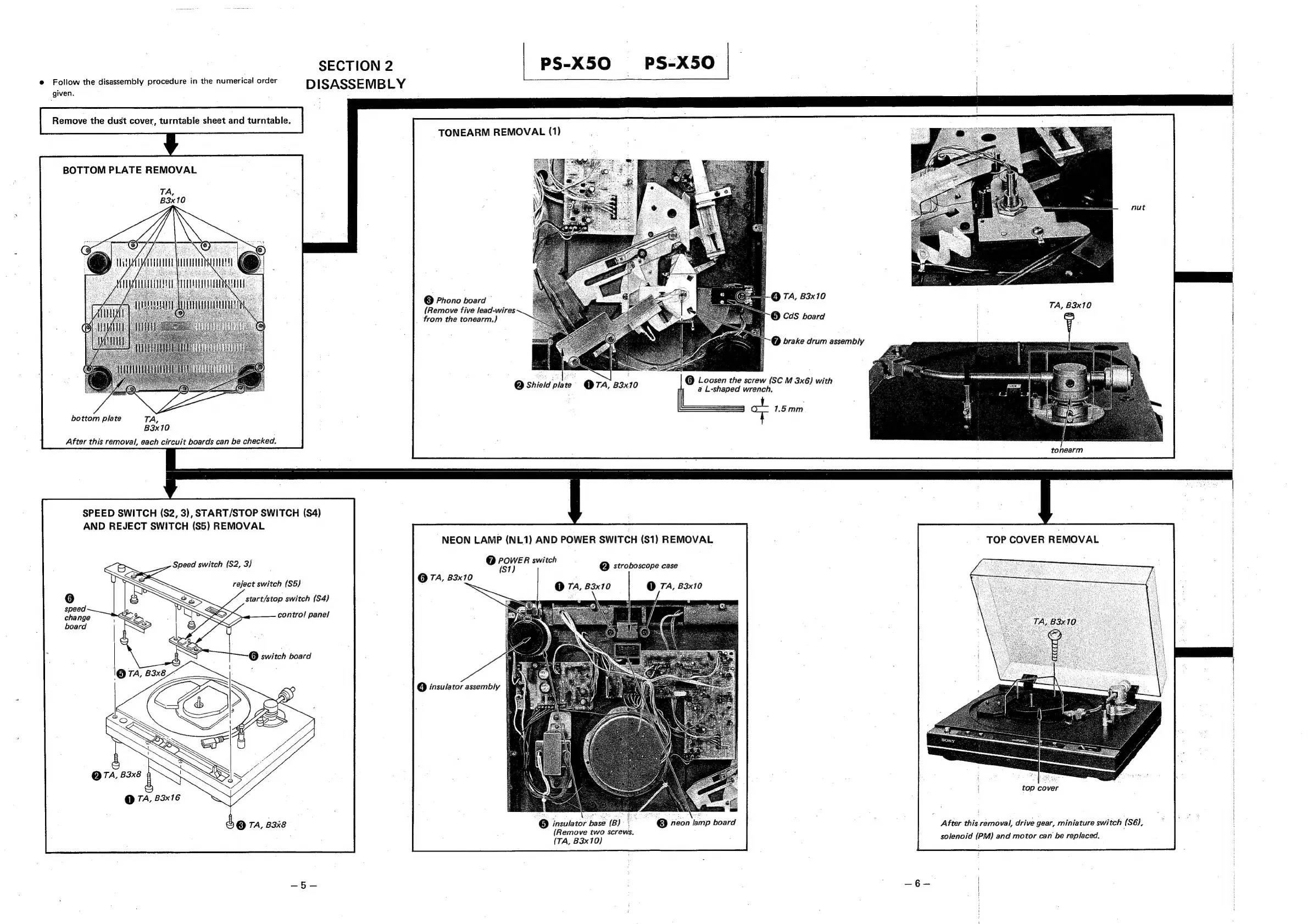

SECTION 2
e Follow the disassembly procedure in the numerical order DISASSEMBLY
given.
Remove the dust cover, turntable sheet and turntable.
TONEARM REMOVAL (1)
BOTTOM PLATE REMOVAL
TA,
B3x10
@
Phono
board
Q
TA,
83x10
(Remove five lead-wires
from the tonearm.)
© CUS board
@ brake drum assembly
@ Loosen the screw (SC M 3x6) with
a L-shaped wrench,
= 1.5mm
@ Shield plate’ QTA, B3x10
TA,
B3x10
After this removal, each circuit boards can be checked.
bottom plate
tonearm
|
SPEED SWITCH (S2, 3), START/STOP SWITCH (S4)
AND REJECT SWITCH ($5) REMOVAL
NEON LAMP (NL1) AND POWER SWITCH ($1) REMOVAL TOP COVER REMOVAL
@ POWER switch
Speed switch (S2, 3) (S1) @ stroboscope case
; TA, B3x10
reject switch (S5) ® @ TA, 83x10 @ TA, 83x10
start/stop switch (S4)
contro! panel
@ insulator assembly
top cover
After this removal, drive gear, miniature switch (S6),
solenoid (PM} and motor can be replaced.
@ insulator base (8) @ neon lamp board
{Remove two screws,
(TA, B3x10)
