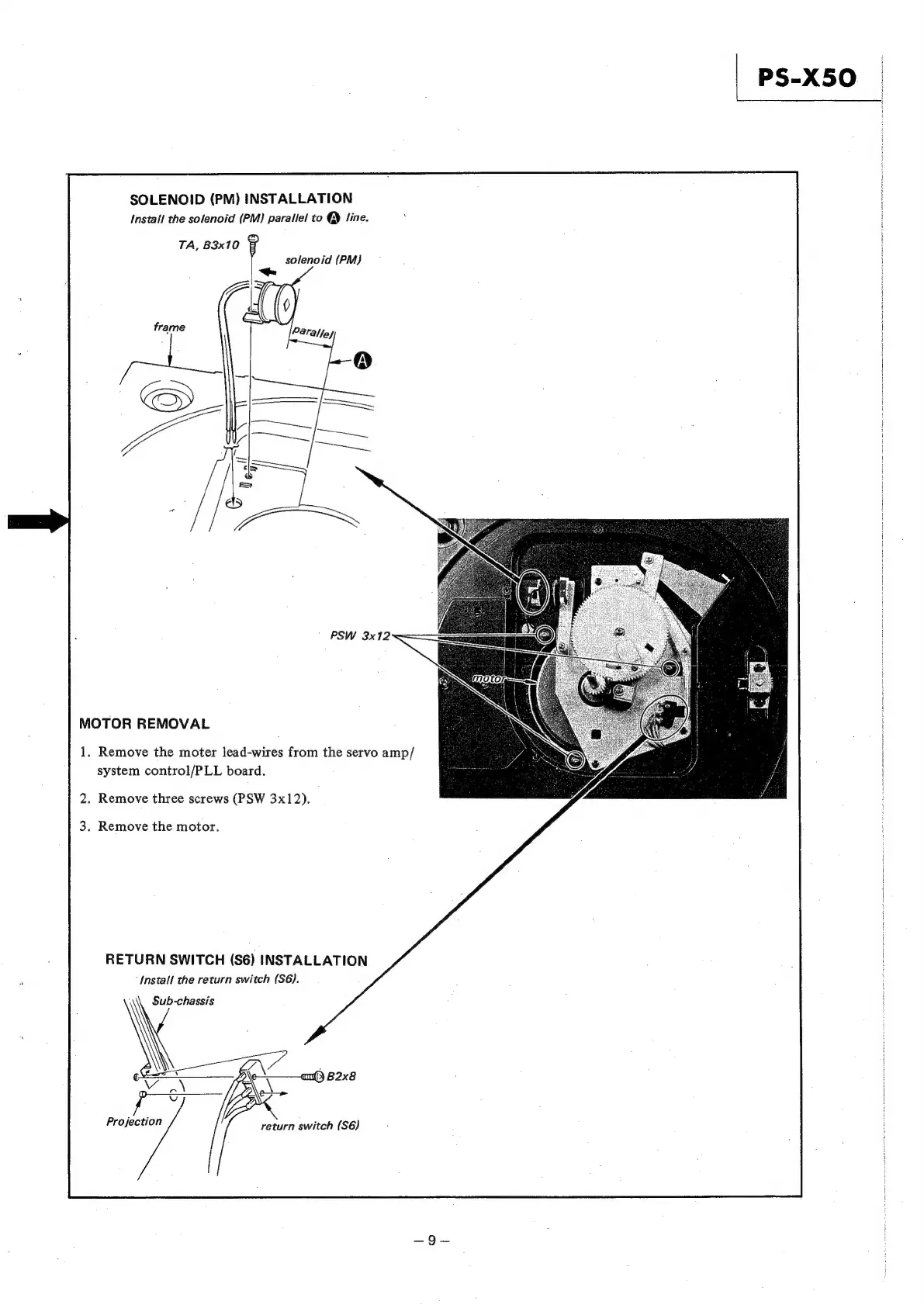

SOLENOID (PM) INSTALLATION
Install the solenoid (PM) parallel to @ line. .
TA, B3x10 f
solenoid {PM}
MOTOR REMOVAL
1. Remove the moter lead-wires from the servo amp/
system control/PLL board.
2. Remove three screws (PSW 3x12).
3. Remove the motor.
RETURN SWITCH (S6) INSTALLATION
‘Install
the
return
switch
(S6).
i
Sub-chassis
Vv
Projection return switch (S6)
