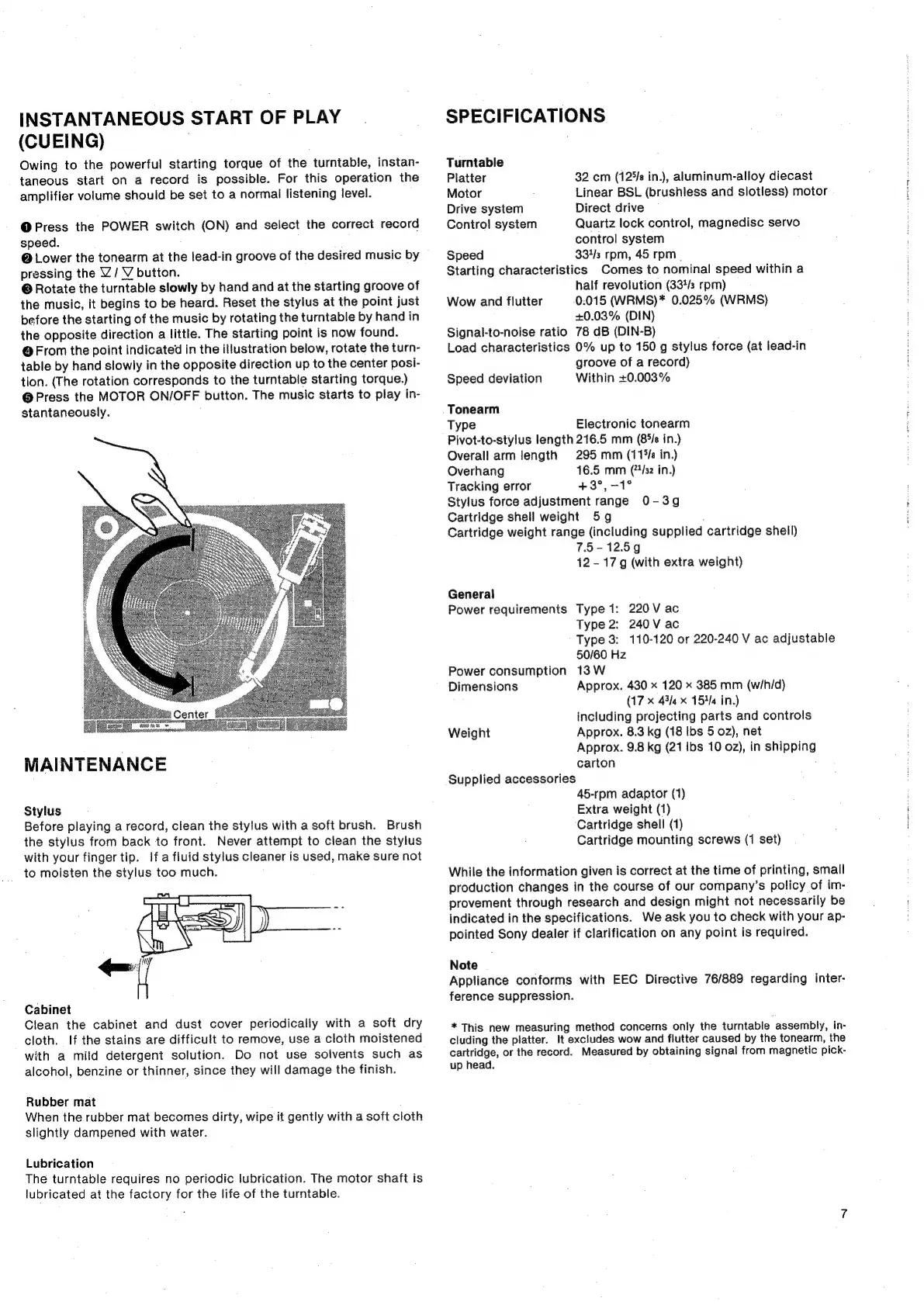

Sony PS-X500 - Page 7

INSTANTANEOUS
START
OF
PLAY
(CUEING)
,
Owing
to
the
powerful
starting
torque
of
the
turntable,
instan-
taneous
start
on
a
record
is
possible.
For
this
operation
the
amplifier
volume
should
be
set
to
a
normal
listening
level.
@Press
the
POWER
switch
(ON)
and
select
the
correct
record
speed.
,
@
Lower
the
tonearm
at
the
lead-in
groove
of
the
desired
music
by
pressing
the
Y/
VY
button.
®
Rotate
the
turntable
slowly
by
hand
and
at
the
starting
groove
of
the
music,
it
begins
to
be
heard.
Reset
the
stylus
at
the
point
just
before
the
starting
of
the
music
by
rotating
the
turntable
by
hand
in
the
opposite
direction
a
little.
The
starting
point
is
now
found.
@From
the
point
indicated
in
the
illustration
below,
rotate
the
turn-
table
by
hand
slowly
in
the
opposite
direction
up
to
the
center
posi-
tion.
(The
rotation
corresponds
to
the
turntable
starting
torque.)
@
Press
the
MOTOR
ON/OFF
button.
The
music
starts
to
play
in-
stantaneously.
MAINTENANCE
Stylus
Before playing a record, clean the stylus with a soft brush. Brush
the stylus from back to front. Never attempt to clean the stylus
with your finger tip. If a fluid stylus cleaner is used, make sure not
to moisten the stylus too much.
Cabinet
Clean the cabinet and dust cover periodically with a soft dry
cloth.
If
the
stains
are
difficult
to
remove,
use
a
cloth
moistened
with a mild detergent solution. Do not use solvents such as
alcohol, benzine or thinner, since they will damage the finish.
Rubber mat
When the rubber mat becomes dirty, wipe it gently with a soft cloth
slightly dampened with water.
Lubrication
The turntable requires no periodic lubrication. The motor shaft is
lubricated at the factory for the life of the turntable.
SPECIFICATIONS
Turntable
Platter 32 cm (125/s in.), aluminum-alloy diecast
Motor Linear BSL (brushless and slotless) motor
Direct drive
Quartz lock control, magnedisc servo
control system
Speed 3343 rpm, 45 rpm
Starting characteristics Comes to nominal speed within a
half revolution (33%/3 rpm)
0:015 (WRMS)* 0.025% (WRMS)
+0.03% (DIN)
Signal-to-noise ratio 78 dB (DIN-B)
Load characteristics 0% up to 150 g stylus force (at lead-in
groove of a record)
Within +0.003%
Drive system
Control system
Wow and flutter
Speed deviation
Tonearm
Type Electronic tonearm
Pivot-to-stylus length 216.5 mm (8*/s in.)
Overall arm length 295 mm (11%/s in.)
Overhang 16.5 mm (24/32 in.)
Tracking error +3°,-1°
Stylus force adjustment range O-3g
Cartridge shell weight 5g p
Cartridge weight range (including supplied cartridge shell)
7.5-12.5g
12-17 (with extra weight)
General
Power requirements Type 1: 220V ac
Type 2: 240 V ac
Type 3: 110-120 or 220-240 V ac adjustable
50/60 Hz
Power consumption 13W
Dimensions Approx. 430 x 120 x 385 mm (w/h/d)
(17 x 43/4 x 1544 in.)
including projecting parts and controls
Weight Approx. 8.3 kg (18 Ibs 5 02), net
Approx. 9.8 kg (21 Ibs 10 02), in shipping
carton :
Supplied accessories
45-rpm adaptor (1)
Extra weight (1)
Cartridge shell (1)
Cartridge mounting screws (1 set)
While
the
information
given
is
correct
at
the
time
of
printing,
small
production
changes
in
the
course
of
our
company’s
policy
of
im-
provement
through
research
and
design
might
not
necessarily
be
indicated
in
the
specifications.
We
ask
you
to
check
with
your
ap-
pointed
Sony
dealer
if
clarification
on
any
point
is
required.
Note
Appliance
conforms
with
EEC
Directive
76/889
regarding
inter-
ference suppression.
* This new measuring method concerns only the turntable assembly, in-
cluding
the
platter.
It
excludes
wow
and
flutter
caused
by
the
tonearm,
the
cartridge,
or
the
record.
Measured
by
obtaining
signal
from
magnetic
pick-
up head.
