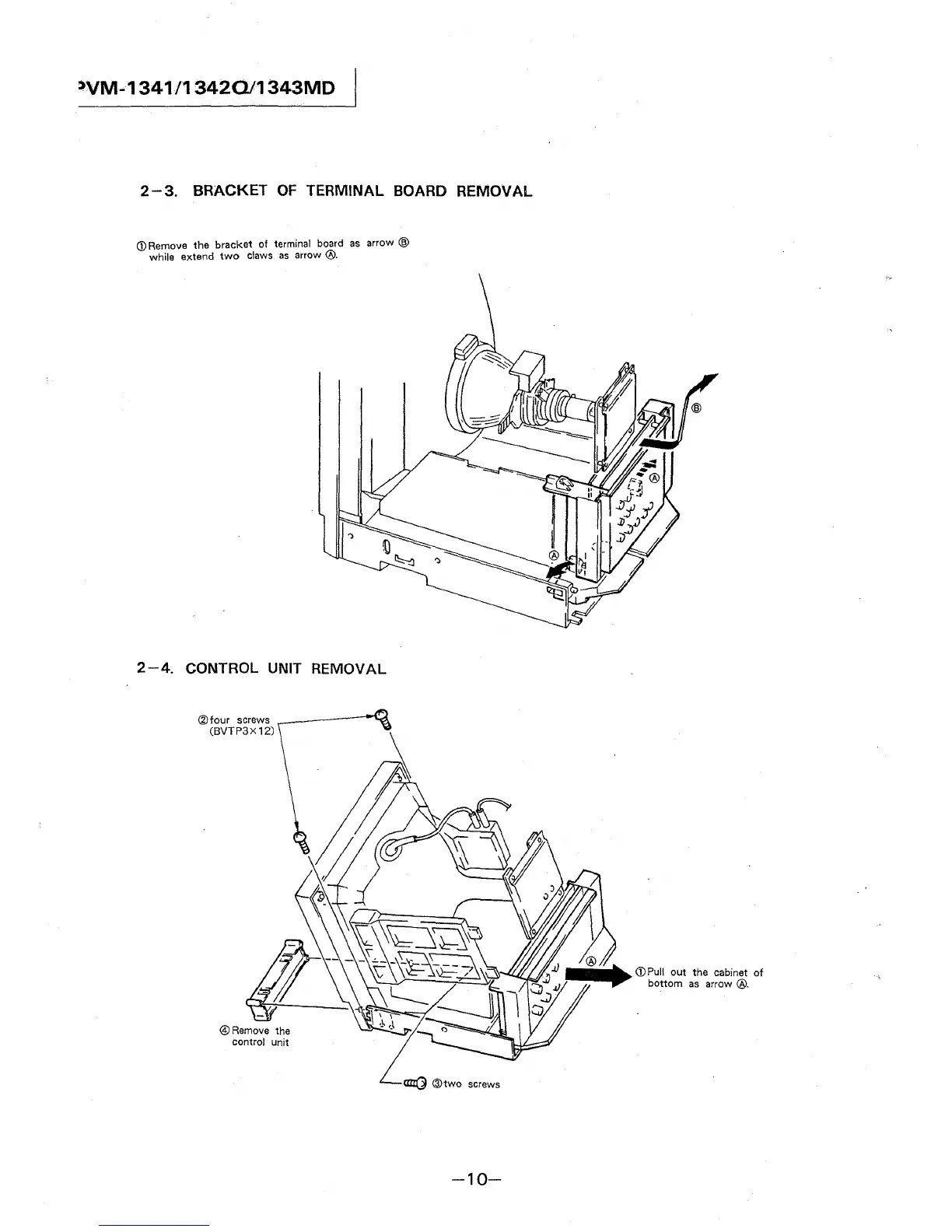

>VM-1341/13420/1343MD
2-3. BRACKET OF TERMINAL BOARD REMOVAL
(D Remove the bracket of terminal board as arrow @
while extend two claws as arrow @.
2-4. CONTROL UNIT REMOVAL
cmQ ®·two screws
-10-
<D Pull out the cabinet of
bottom as arrow @.
