Sony PVM-1341 - Picture Tube Removal; Picture Tube and Anode Cap Removal Procedure

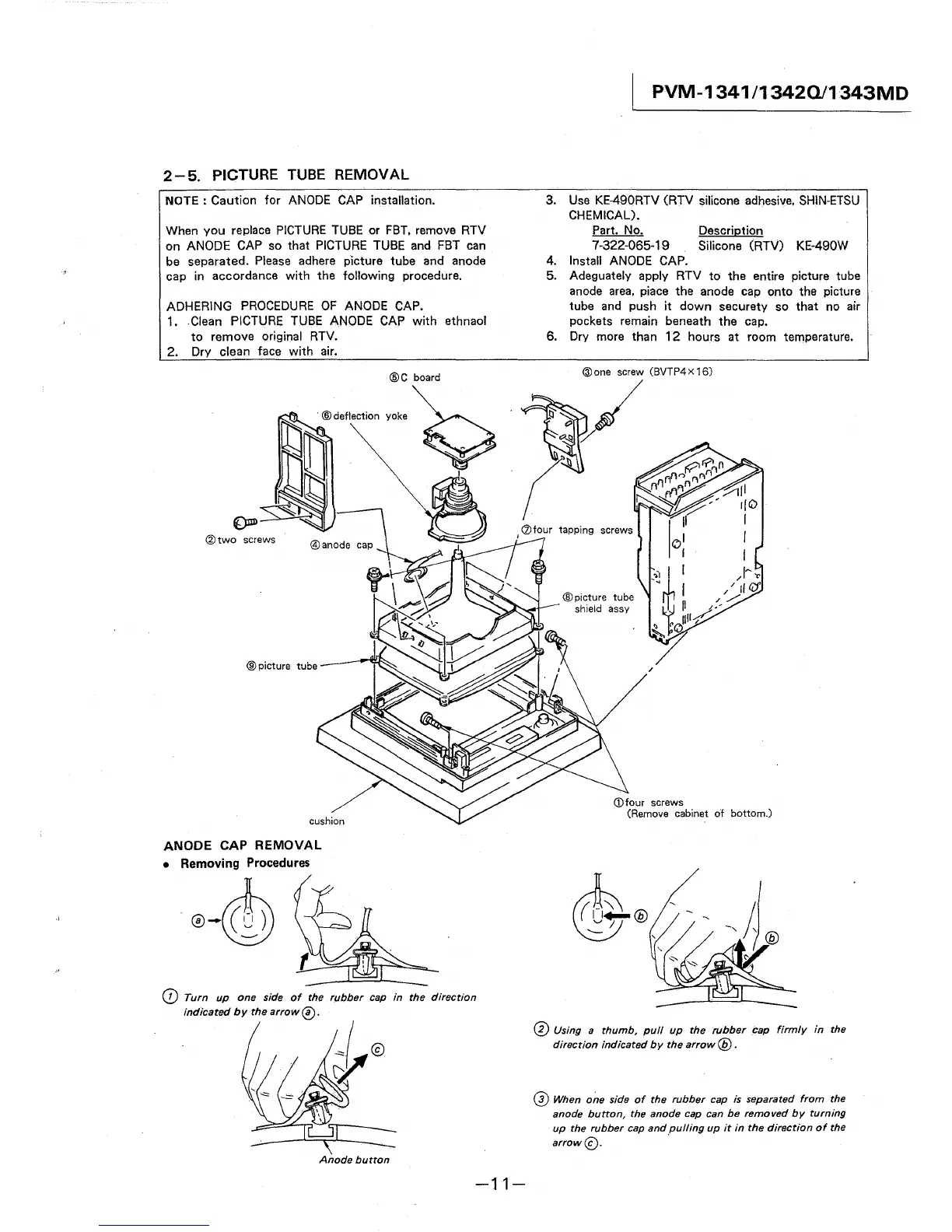

2-5. PICTURE TUBE REMOVAL
NOTE : Caution for ANODE CAP installation.
When you replace PICTURE TUBE or FBT, remove RTV
on ANODE CAP so that PICTURE TUBE and FBT can
be separated. Please adhere picture tube and anode
cap in accordance with the following procedure.
ADHERING PROCEDURE OF ANODE CAP.
1 .. Clean PICTURE TUBE ANODE CAP with ethnaol
to remove original RTV.
2. Dry clean face with air.
@two screws
@picture tube
cushion
ANODE CAP REMOVAL
• Removing Procedures
(D Turn up one side of the rubber cap in the direction
indicated by the arrow@.
Anode button
-11-
PVM-1341 /1342Q/1343MD
3. Use KE-490RTV (RTV silicone adhesive, SHIN-ETSU
CHEMICAL).
Part. No.
7-322-065-19
4. Install ANODE CAP.
Description
Silicone (RTV) KE-490W
5. Adeguately apply RTV to the entire picture tube
anode area, piace the anode cap onto the picture
tube and push it down securety so that no air
pockets remain beneath the cap.
6. Dry more than 12 hours at room temperature.
G)four screws
(Remove cabinet of bottom.)
0 Using a thumb, pull up the rubber cap firmly in the
direction indicated by the arrow@.
@ When o~e side of the rubber cap is separated from the
anode button, the anode cap can be removed by turning
up the rubber cap and pulling up it in the direction of the
arrow@. ·
