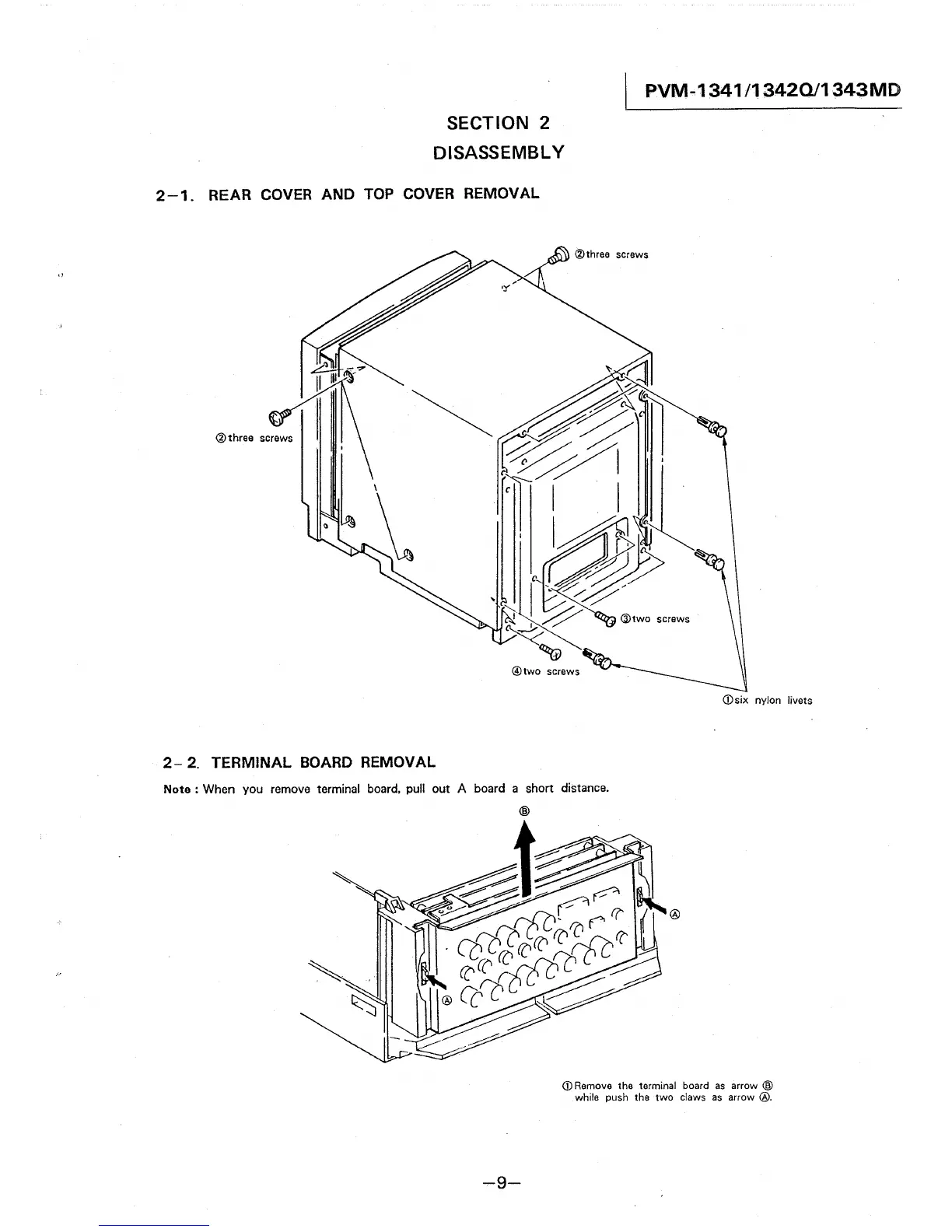

SECTION 2
DISASSEMBLY
2-1. REAR COVER AND TOP COVER REMOVAL
©two screws
2- 2. TERMINAL BOARD REMOVAL
Note : When you remove terminal board, pull out A board a short distance.
PVM-1341 /13420/1343MD
Ci) six nylon livets
Ci) Remove the terminal board as arrow @
while push the two claws as arrow ®·
-9-
