Adjustment Using the Menus
29
An OLED panel can provide superior video
responsiveness and scan driving, reproducing images
with little contouring or afterimaging. However, scan
driving can cause flicker when input signals have a low
vertical frequency (24P/PsF, 50I, etc.). Set FLICKER
FREE to ON to greatly reduce this phenomenon.
With this mode set to ON, quick-moving images may
exhibit contours or an afterimage.

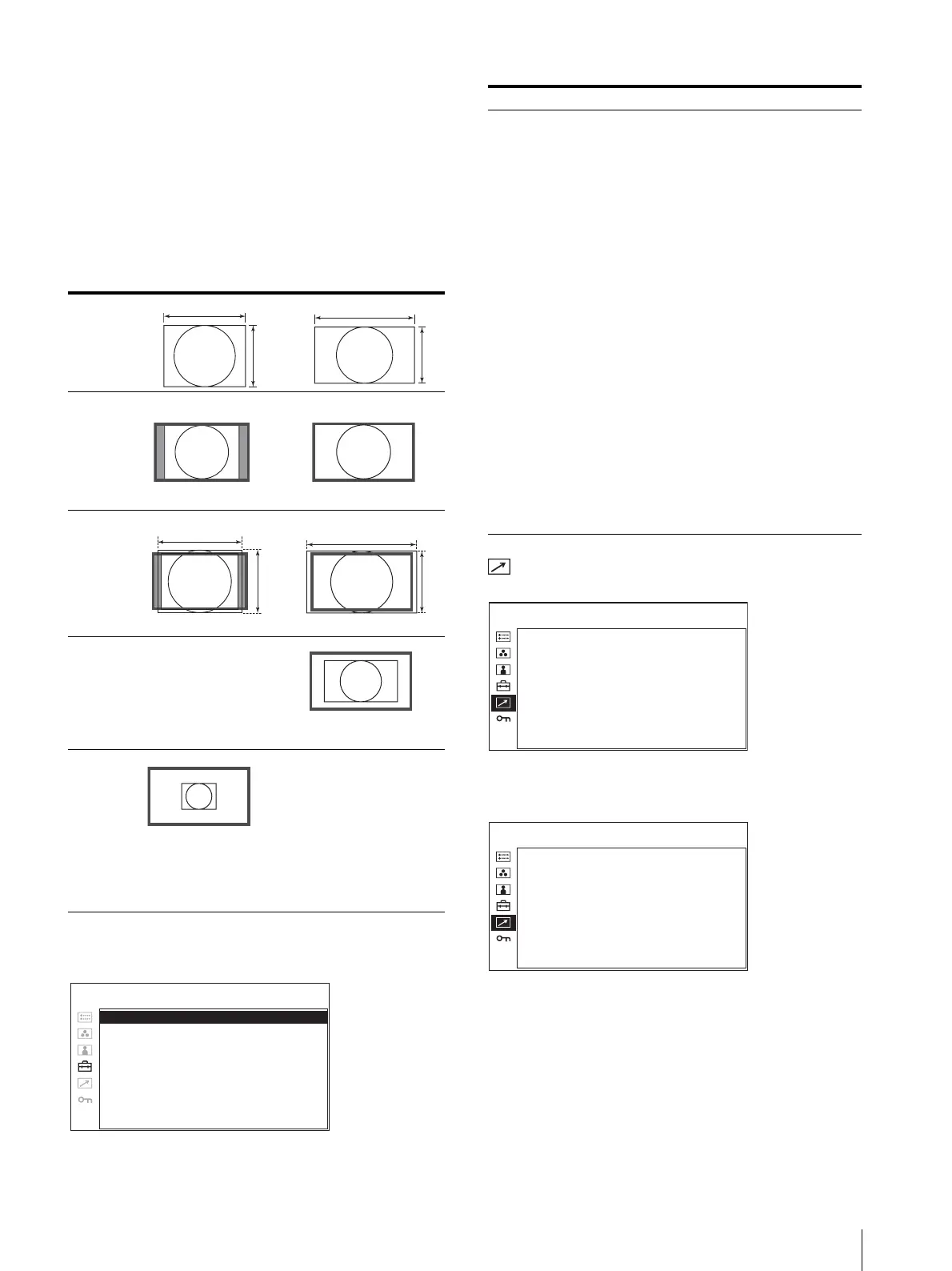

Scan mode image
AUDIO SETTING
REMOTE menu
PARALLEL REMOTE
1440 × 1080 1920 × 1080
1512 × 1080 1920 × 1080
–
1280 × 720
645 × 484 (480i, 480p)
768 × 576 (575i, 576p)
–
To display in 4:3 aspect ratio, images are adjusted
horizontally with scale handling.
INPUT
4
3
16
9
NORMAL
(zeroscan)
4:3
16:9
OVER
(5% over scan)
4
3
16
9
NATIVE
(720p)
NATIVE
(480i, 575i,
480p, 576p)
SDI AUDIO SETTING: xxx
3G/HD/SD: xxx
SPEAKER OUTPUT: xxxxxx
USER CONFIG – AUDIO SETTING
Submenu Setting
SDI AUDIO SETTING Sets the audio channel when SDI
signal is input.
• 3G/HD/SD: Selects from among
channels CH1 to CH16, odd
channel + even channel
(CH1+CH2,
CH3+CH4···CH15+CH16)
and OFF.
You can display the L/R audio
levels of the selected channels on
the display when the WFM/ALM
display is enabled (see WFM/ALM
(waveform monitor and audio level
meter) DISPLAY SETTING on
page 27).
• SPEAKER OUTPUT: Select an
audio format to output from
speakers, headphone jack,
and AUDIO OUT
connector.
EMBEDDED: Outputs an
audio signal embedded in
SDI.
ANALOG: Outputs an
audio signal that comes from
the AUDIO IN connector.
PARALLEL REMOTE:
SERIAL REMOTE: xxxxxxx
MONITOR:
CONTROLLER:
CONNECTION: xxx
REMOTE
PARALLEL REMOTE:
1 PIN:
2 PIN:
3 PIN:
4 PIN:
6 PIN:
7 PIN:
8 PIN:
FORCED TALLY: xxx
REMOTE – PARALLEL REMOTE
