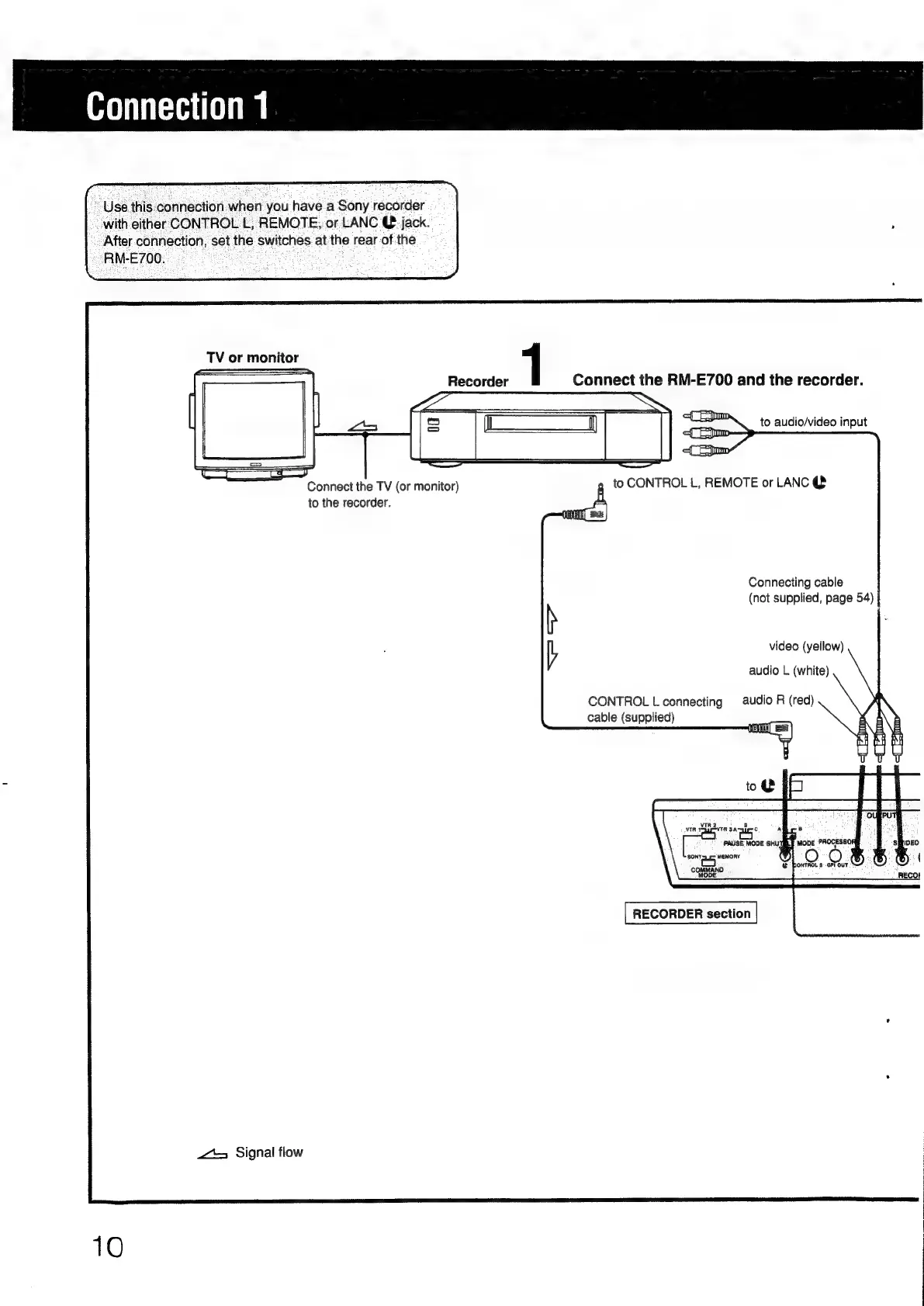

“ Use this connection when you have a Sony recorder
_with either CONTROL L, REMOTE, or LANC © jack.
. After connection, set the switches at the rear of the
RM-E700..
TV or monitor
Connect the TV (or monitor)
to the recorder.
Connecting cable
(not supplied, page 54) }
video (yellow)
audio L (white)
So
CONTROL L connecting audio R (red)
cable (supplied)
SONY, MEMORY
COMMANO
5 Signal flow
10
