2
Connecting cable
V (not supplied, page 54)
audio R (red)
audio L (white)
video (yellow)
nine
[im
i mz
= MES
Note on models SLV-50, SLV-70HF, SLV-401 and SLV-
402VPS
When you use the above model for the recorder, the editing
is not possible with the CONTROL L or LANC © connection.
To edit, use the Connection 2 (Control S connection).

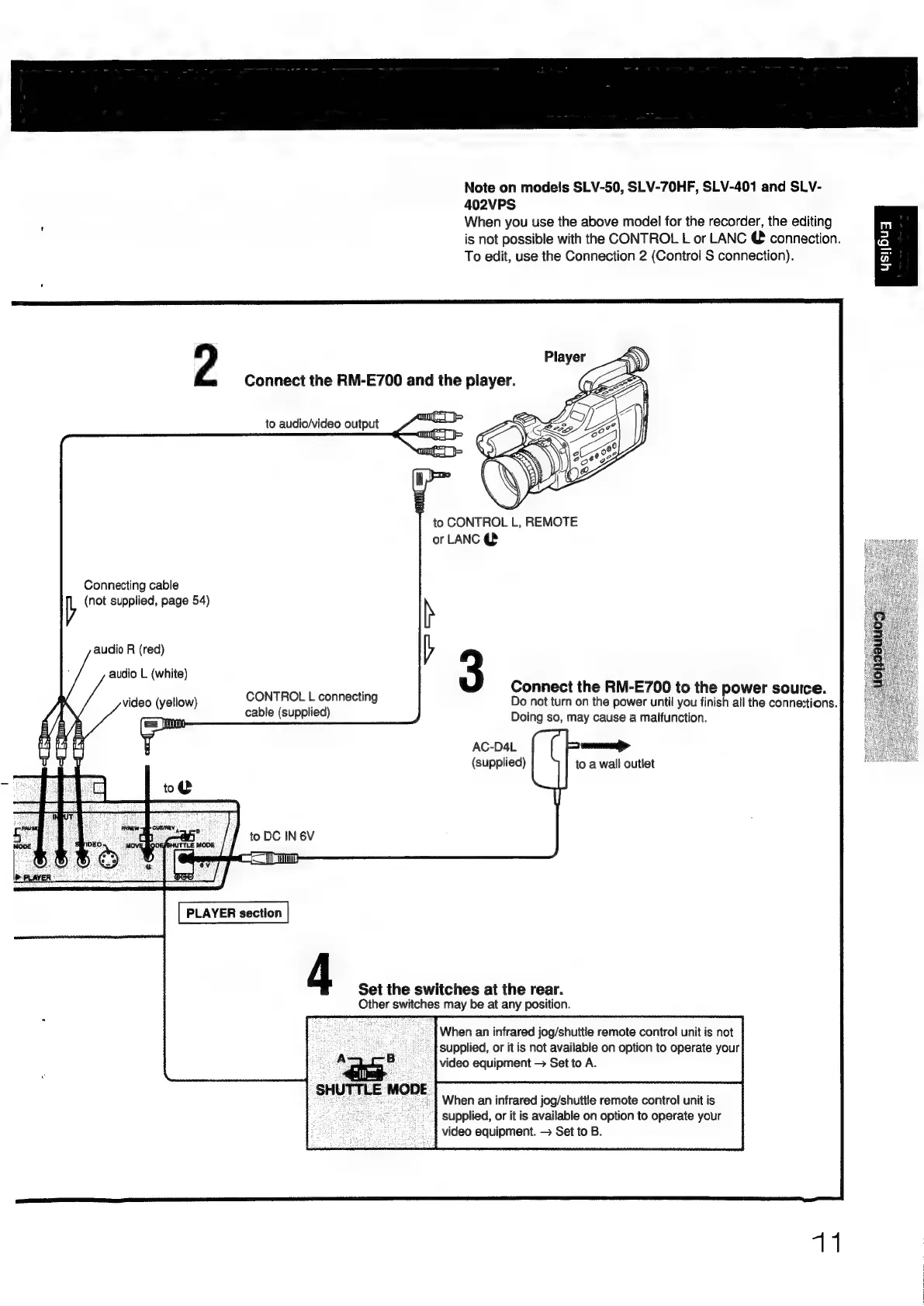

Connect the RM-E700 and the player.
to
audio/video
output
adi
am
|
Ie
an {
to CONTROL L, REMOTE
or LANC @
h
3 Connect the RM-E700 to the power source.
Do not turn on the power until you finish all the connections.
Doing so, may cause a malfunction.
AC-D4L Farce
(supplied) to a wall outlet
I
CONTROL L connecting
cable (supplied)
to DC IN 6V
oe a TTT
PLAYER section
4 Set the switches at the rear.
Other switches may be at any position.
When an infrared jog/shuttle remote control unit is not
supplied, or it is not available on option to operate your
SAS B= __| video equipment > Set to A.
SHUTTLE MODE
8 esos When an infrared jog/shuttle remote control unit is
: é supplied, or it is available on option to operate your
video equipment. — Set to B.
