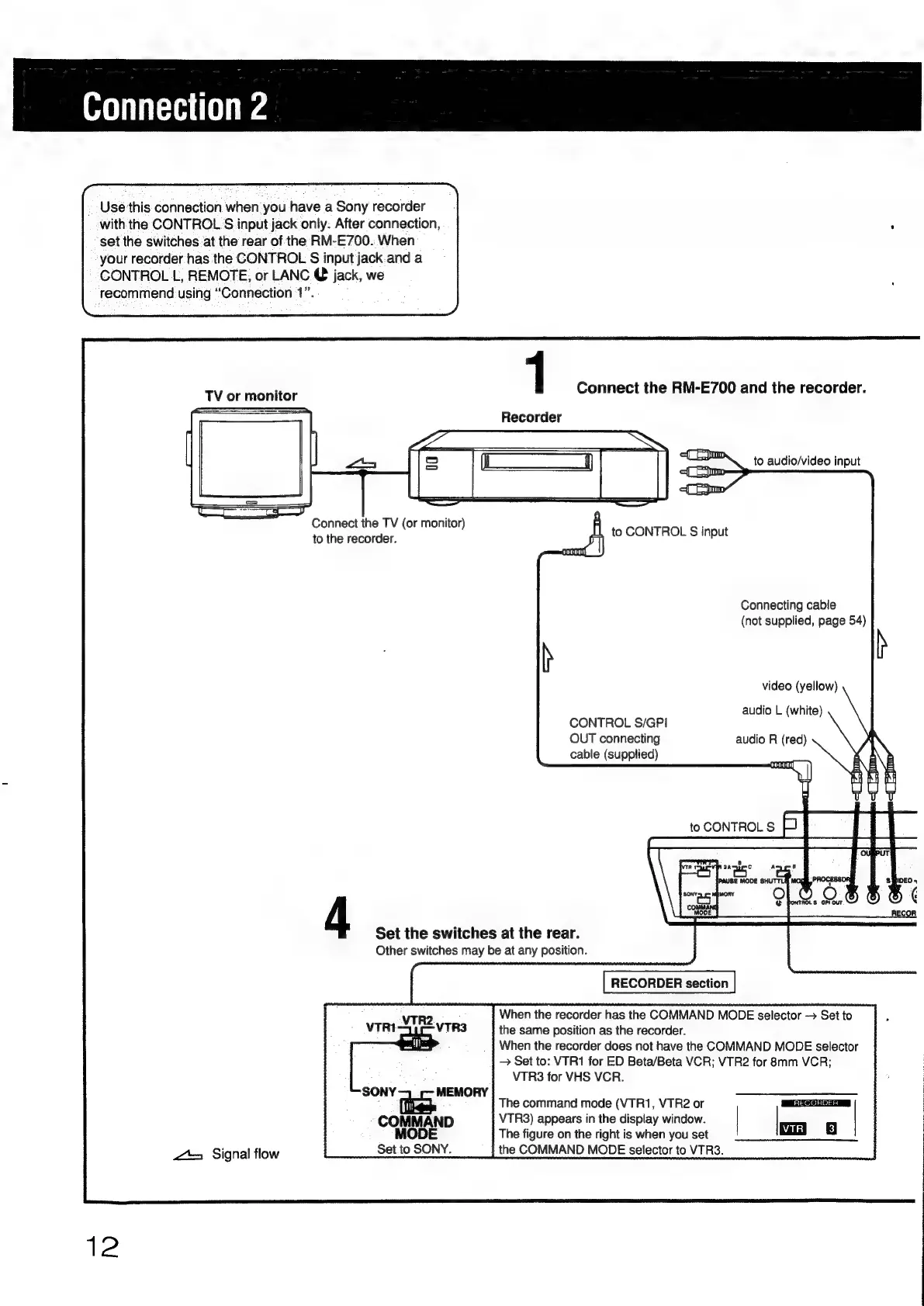

. Use this connection when you have a Sony recorder
with the CONTROL S input jack only: After connection, ;
set the switches at the rear of the RM-E700.:When
your recorder has the CONTROL S input jack.and a
CONTROL L, REMOTE, or LANC @ jack, we
recommend using “Connection 1”.
TV or monitor 1 Connect the RM-E700 and the recorder.
Recorder
to audio/video input
Connect the TV (or monitor) B :
to the recorder. sy to CONTROL S input
COCU)
Connecting cable
(not supplied, page 54)
video (yellow)
audio L (white)
CONTROL S/GPI
OUT connecting audio R (red)
cable (supplied)
tocontrocs PY ff |
ee ee
ct
= PAUSE MODE SHUTTLM Gh, PROCESSOR SHIDEO 4
“ear OL RG © © €
MOOE RECOR
4 Set the switches at the rear.
Other switches may be at any position.
RECORDER section
When the recorder has the COMMAND MODE selector — Set to
the same position as the recorder.
When the recorder does not have the COMMAND MODE selector
— Set to: VTR1 for ED Beta/Beta VCR; VTR2 for 8mm VCR;
VTR3 for VHS VCR.
SONY MEMORY
The command mode (VTR1, VTR2 or
COMMAND VTR3) appears in the display window. |
MODE The figure on the right is when you set
Set to SONY. the COMMAND MODE selector to VTR3.
<4 Signal flow
