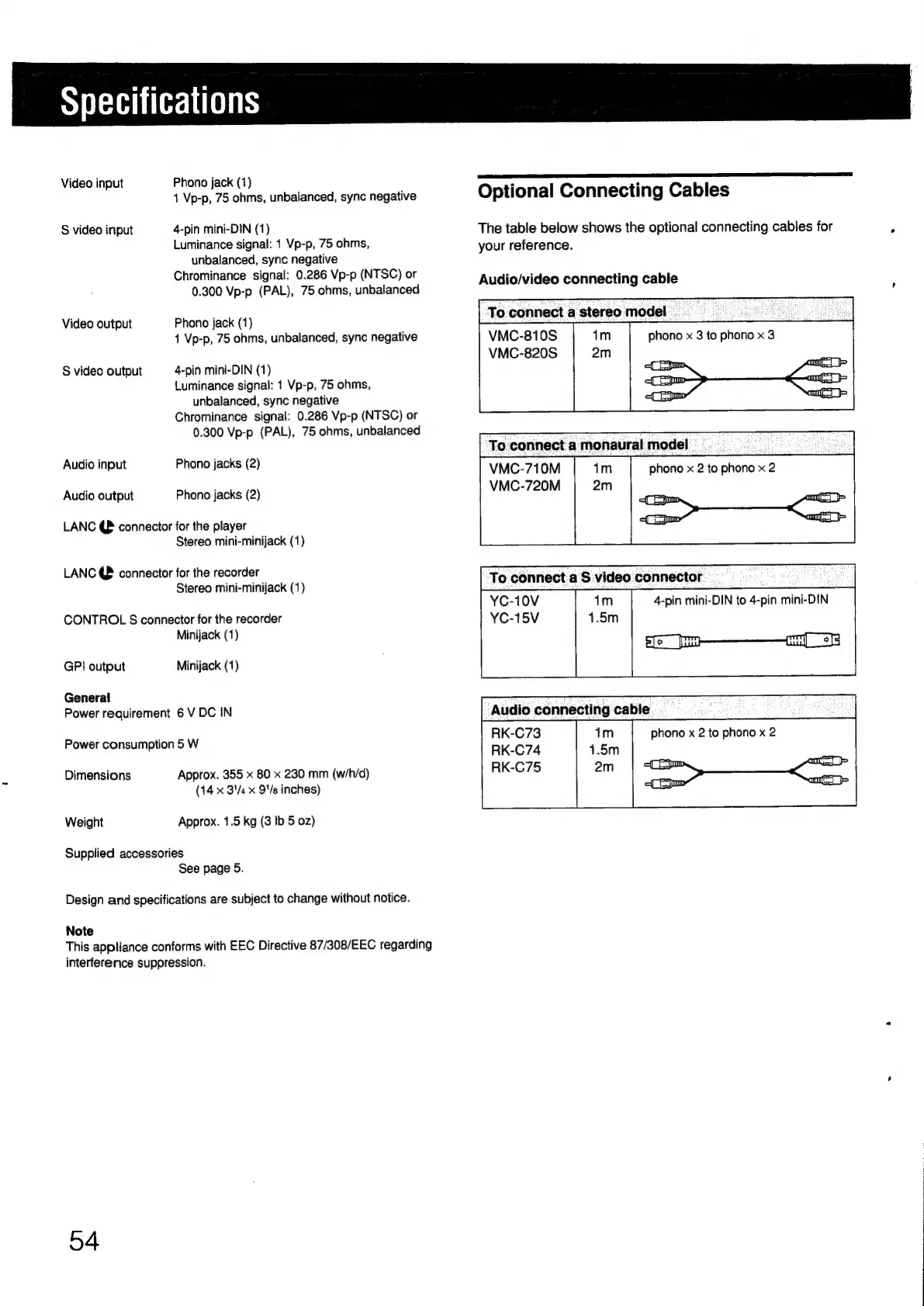

Specifications
Video input Phono jack (1)
1 Vp-p, 75 ohms, unbalanced, sync negative
S video input 4-pin mini-DIN (1)
Luminance signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
Chrominance signal: 0.286 Vp-p (NTSC) or
0.300 Vp-p (PAL), 75 ohms, unbalanced
Video output Phono jack (1)
1 Vp-p, 75 ohms, unbalanced, sync negative
4-pin mini-DIN (1)
Luminance signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
Chrominance signal: 0.286 Vp-p (NTSC) or
0.300 Vp-p (PAL), 75 ohms, unbalanced
S video output
Audio input Phono jacks (2)
Audio output Phono jacks (2)
LANC @ connector for the player
Stereo mini-minijack (1)
LANC @ connector for the recorder
Stereo mini-minijack (1)
CONTROL §S connector for the recorder
Minijack (1)
GPI output Minijack (1)
General
Power requirement 6 V DC IN
Power consumption 5 W
Dimensions Approx. 355 x 80 x 230 mm (w/h/d)
(14 x 31/4 x 9'/s inches)
Weight Approx. 1.5 kg (3 Ib 5 02)
Supplied accessories
See page 5.
Design and specifications are subject to change without notice.
Note
This appliance conforms with EEC Directive 87/308/EEC regarding
interference suppression.
54
Optional Connecting Cables
The table below shows the optional connecting cables for .
your reference.
Audio/video connecting cable
To.connect a stereo model _
VMC-810S
VMC-820S
phono x 3 to phono x 3
-f{ jm
To connect a monaural model
VMC-710M phono x 2 to phono x 2
VMC-720M
To connect.a $ video connector
YC-10V 1m
YC-15V
4-pin mini-DIN to 4-pin mini-DIN
B[e nw HHO:
Audio connecting cable
phono x 2 to phono x 2
