Sony RMT-V501F - Page 47

2-5
1
2
6
789 qa0qs
qd
0
34
5

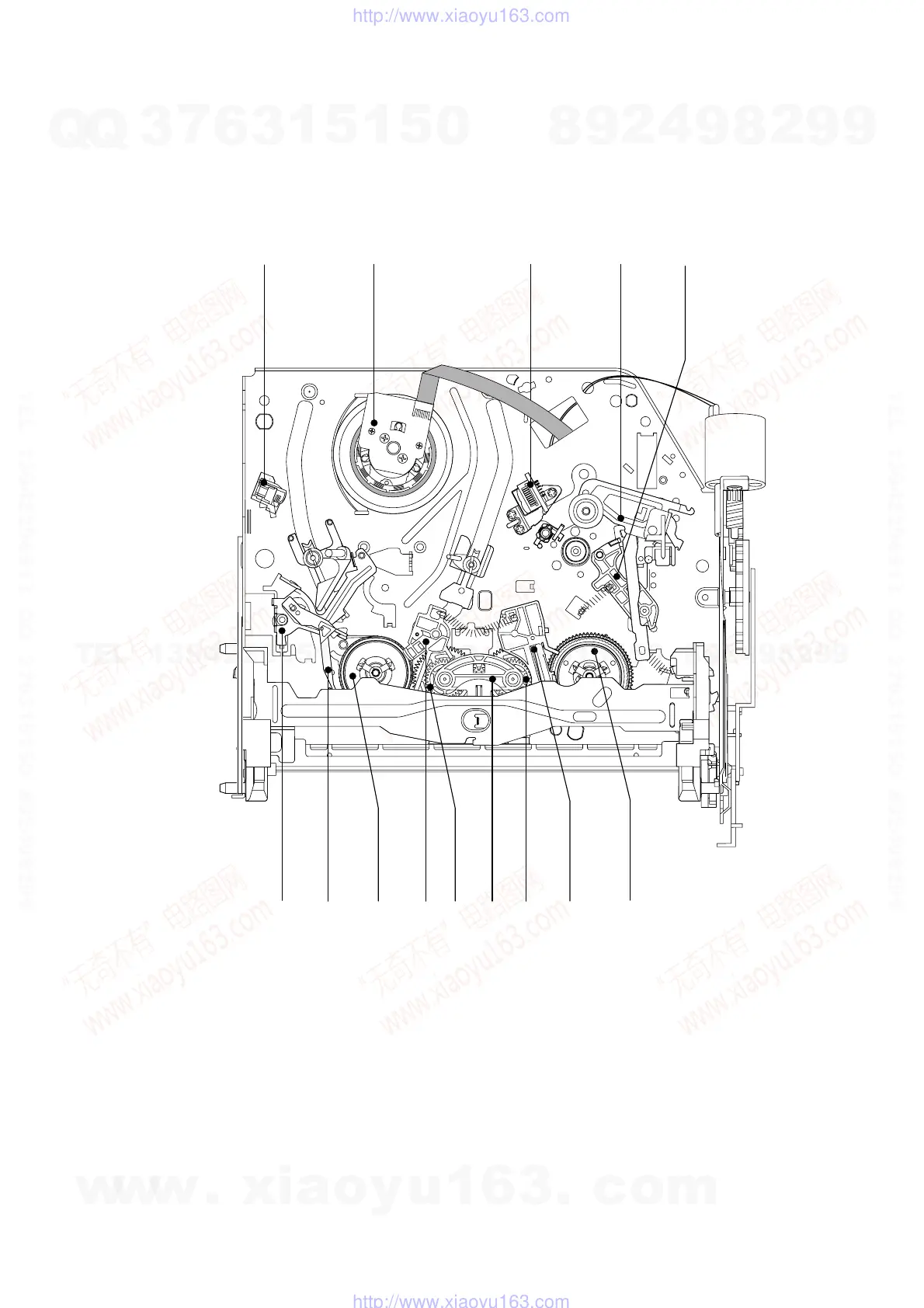

Fig. 2-9 Top Parts Location-2
1 FE HEAD
2 CYLINDER ASS’Y
3 ACE HEAD ASS’Y
4 LEVER UNIT PINCH ASS’Y
5 LEVER #9 GUIDE ASS’Y
6 LEVER TENSION ASS’Y
7 BAND BRAKE ASS’Y
8 DISK S REEL
9 LEVER S BRAKE ASS’Y
0 GEAR IDLE
qa LEVER IDLE
qs LEVER T BRAKE ASS’Y
qd DISK T REEL
