2-18
1 3 SCREWS
2 PLATE GROUND DEC
3 CYLINDER ASS'Y
2-4-23 Slider S, T Ass’y Removal
1) Move the Slider S, T Ass’y 1, 2 to slot, and then lift it to
remove. (Refer to arrow)
2-4-24 Plate Ground Deck, Cylinder Ass’y Re-
moval
1) Remove the 3 Screws 1.
2) Lift the Plate Ground Deck 2.
3) Lift the Cylinder Ass’y 3.
Assembly:
1) Match the 3 holes in the bottom of Cylinder Ass’y 3 to the 3
holes of Main Base as attending not to drop or knock the Cylinder
Ass’y 3.
2) Tighten the 1 Screw 1.
3) Match the Plate Ground Deck 2 to the Hole of Base Main.
4) Tighten the other 2 Screws 1.
Note:
1) Take care not to touch the Cylinder Ass’y 3 and the tape guide
post at reinstalling.
2) When reinstalling, Don't push down too much on Screw Driver.

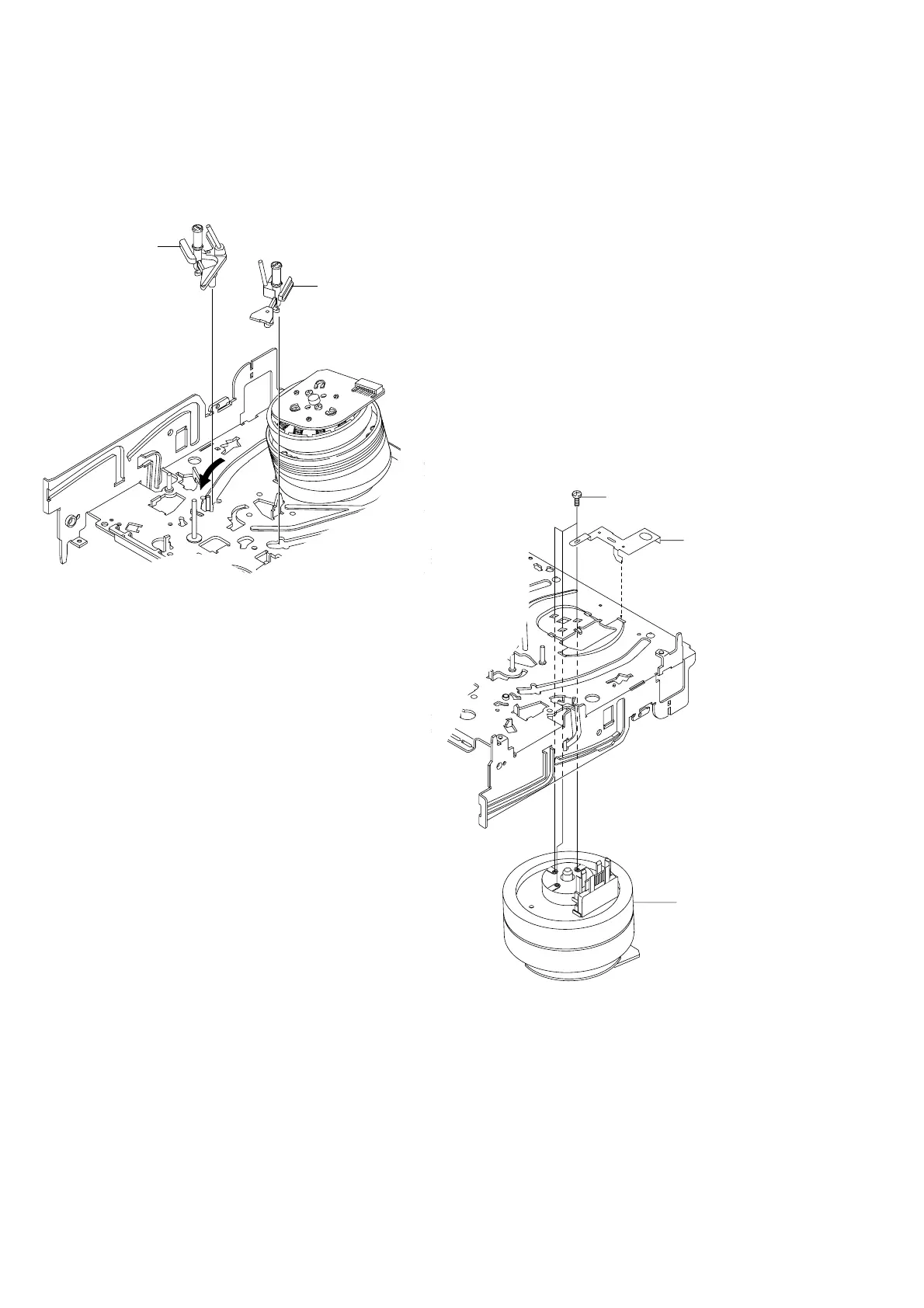

Fig. 2-37 Plate Ground Deck, Cylinder Ass’y Removal
1 SLIDER S ASS`Y
2 SLIDER T ASS`Y
Fig. 2-36 Slider S, T Ass’y Removal
