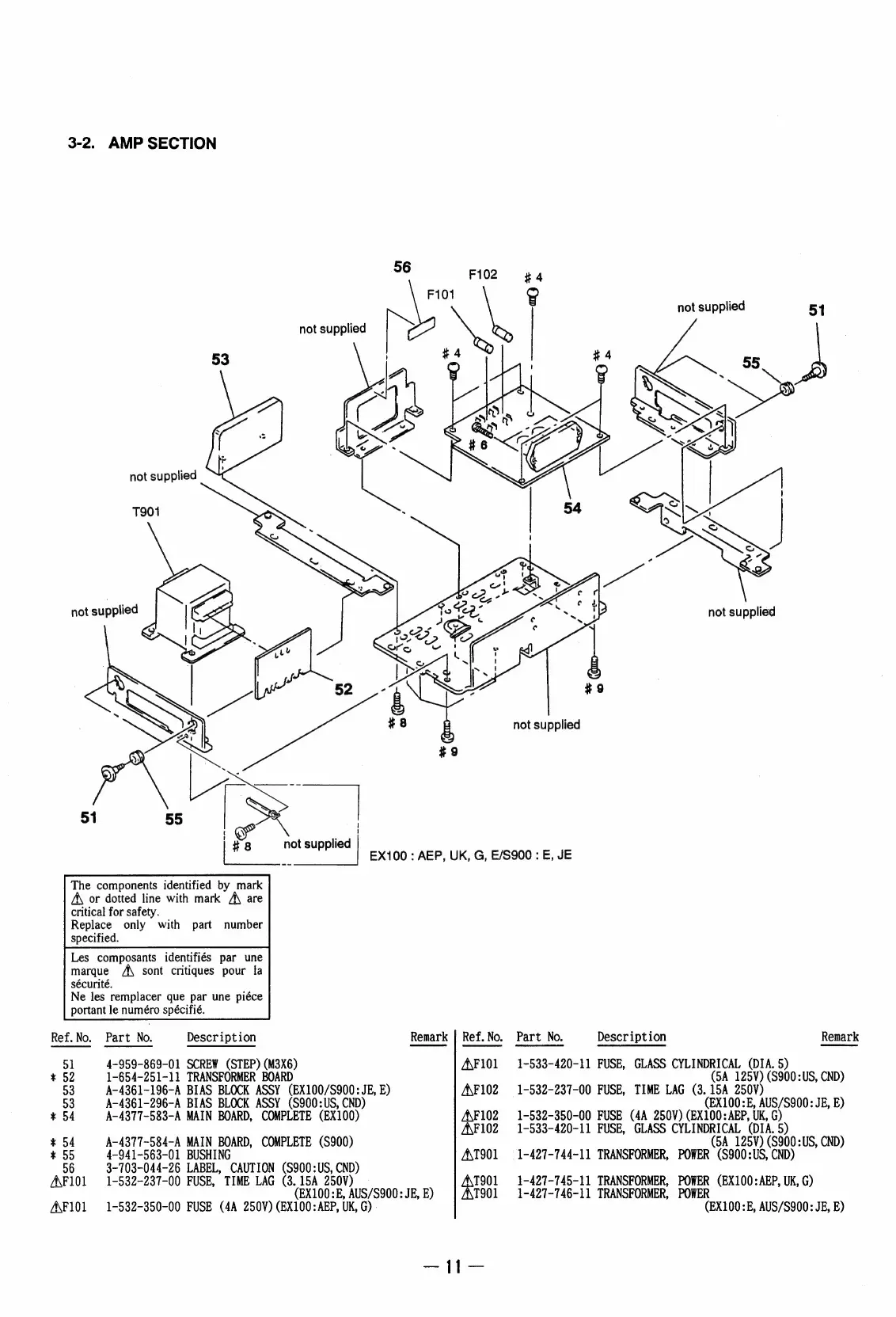

3-2. AMP SECTION
56 F102
#4
F101
g not supplied 51
not supplied re ~~
# 4 Pf
not supplied
T901
not supplied not supplied
not supplied
ad
not supplied
hee
ii
EX100
:
AEP,
UK,
G,
E/S900
:
E,
JE
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque A\ sont critiques pour la
sécurité,
Ne les remplacer que par une piéce
portant le numéro spécifié.
Ref. No. Part No. Description Remark | Ref.No. Part No. Description Remark
51 4-959-869-01 SCREW (STEP) (M3X6) AF101 1-533-420-11 FUSE, GLASS CYLINDRICAL (DIA. 5)
* 52 1-654-251-11 TRANSFORMER BOARD (5A 125V) (S900:US, CND)
53 A-4361-196-A BIAS BLOCK ASSY (EX100/S900: JE, E) AXF102 = 1-532-237-00 FUSE, TIME LAG (3. 15A 250V
53 A-4361-296-A BIAS BLOCK ASSY (S900:US, CND) (EX100:E, AUS/S900: JE, E)
x 54 A-4377-583-A MAIN BOARD, COMPLETE (EX100) A\F102 1-532-350-00 FUSE (4A 250V) (EX100: AEP, UK, G)
AF102 1-533-420-11 FUSE, GLASS CYLINDRICAL (DIA. 5)
* 54 A-4377-584-A MAIN BOARD, COMPLETE (S900) (5A 125V) (S900:US, CND)
* 55 4-941-563-01 BUSHING A\T901 =: 1-427-744-11 TRANSFORMER, POWER (S900:US, CND)
56 3-703-044-26 LABEL, CAUTION (S900:US, CND)
AF101 1-532-237-00 FUSE, TIME LAG (3. 15A 250¥) T901 | 1-427-745-11 TRANSFORMER, POWER (EX100:AEP, UK, G)
(EX100:E, AUS/S900: JE, E) T901 1-427-746-11 TRANSFORMER, POWER
AF101 1-532-350-00 FUSE (4A 250V) (EX100: AEP, UK, G) - (EX100:E, AUS/S900: JE, E)
