NOTE:
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque A\ sont critiques pour la
sécurité.
Ne les remplacer que par une piéce

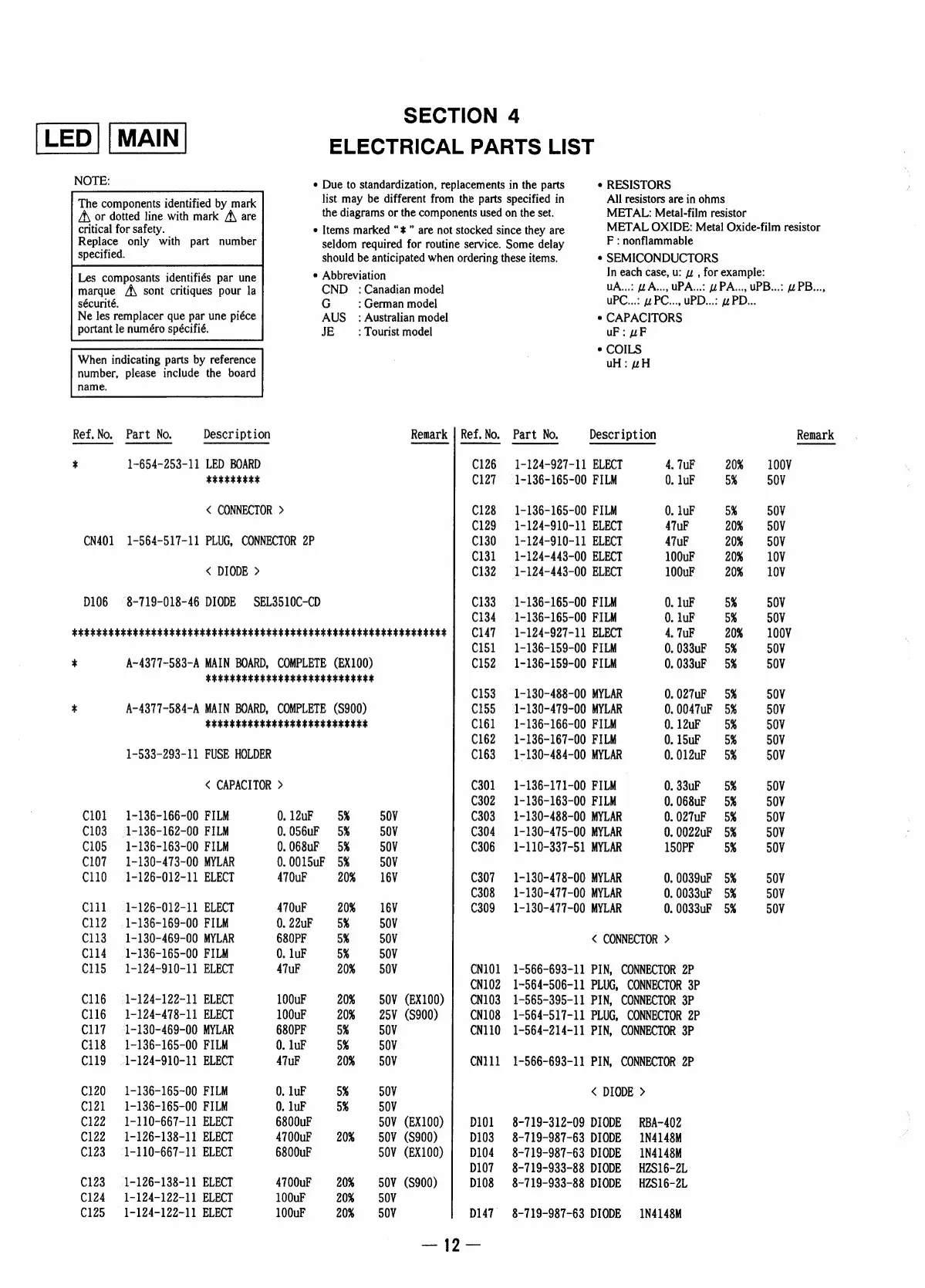

SECTION 4
ELECTRICAL PARTS LIST
« Due to standardization, replacements in the parts
list may be different from the parts specified in
the diagrams or the components used on the set.
¢ Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
¢ Abbreviation
CND_: Canadian model
G : German model
AUS _ : Australian model
¢ RESISTORS
All resistors are in ohms
METAL: Metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F : nonflammable
¢ SEMICONDUCTORS
In each case, u: uw , for example:
UA...: WA..., UPA...: @PA..., UPB...: @ PB...,
uPC...: wPC..., uPD...: PD...
¢ CAPACITORS
portant le numéro spécifié. JE : Tourist model uF: uF
¢ COILS
When indicating parts by reference uH : #H
number, please include the board
name.
Ref.No. Part No. Description Remark | Ref.No. Part No. Description Remark
x 1-654-253-11 LED BOARD C126 =1-124-927-11 ELECT 4, TuF 20% 100V
KEKEKEKEE C127. ~=—- 1-136-165-00 FILM 0. luF 5% 50V
< CONNECTOR > C128 =1-136-165-00 FILM 0. luF 5% 50V
C129 = 1-124-910-11 ELECT ATuF 20% 50V
CN401 1-564-517-11 PLUG, CONNECTOR 2P C130 =©1-124-910-11 ELECT 4TuF 20% 50V
C131 = =.1-124-443-00 ELECT 100uF 20% 10V
< DIODE > C132 =. 1-124-443-00 ELECT 100uF 20% 10V
D106 =. 8-719-018-46 DIODE SEL3510C-CD C133. =. 1-136-165-00 FILM 0. luF 5% 50V
C134 =: 1-136-165-00 FILM 0. luF 5% 50V
KEKAEKEKAKEKK REAR EEE AR EER EEE ERR EE EARS EERAEE EAA ES ERA ER ERE EE RES C147 =: 1-124-927-11 ELECT 4. TuF 20% 100V
C151 1-136-159-00 FILM 0.033uF 5% 50V
* A~4377-583-A MAIN BOARD, COMPLETE (EX100) C152 1-136-159-00 FILM 0.033uF 5% 50V
KEREKEREKEEEERE REE REE EERE EES
C153 = 1-130-488-00 MYLAR 0.027uF 5% 50V
* A-4377-584-A MAIN BOARD, COMPLETE (S900) C155 =: 1-130-479-00 MYLAR 0.0047uF 5% 50V
HERKEKERERKAREAEEERES ERASE ES C161 1-136-166-00 FILM 0. 12uF 5% 50V
C162 1-136-167-00 FILM 0. 15uF 5% 50V
1-533~-293-11 FUSE HOLDER C163 = 1-130-484-00 MYLAR 0.012uF 5% 50V
< CAPACITOR > C301 = =1-136-171-00 FILM 0. 33uF 5% 50V
C302 =1-136-163-00 FILM 0.068uF 5% 50V
C101 1-136-166-00 FILM 0. 12uF 5% 50V C303 1-130-488-00 MYLAR 0.027uF 5% 50V
C103. =: 1-136-162-00 FILM 0.056uF 5% 50V C304 = 1-130-475-00 MYLAR 0.0022uF 5% 50V
C105 1-136-163-00 FILM 0.068uF 5% 50V C306 1-110-337-51 MYLAR 150PF 5% 50V
C107 ~=1-130-473-00 MYLAR 0. 0015uF 5% 50V
C110. =. 1-126-012-11 ELECT 470uF 20% 16V C307 ~=—1-130-478-00 MYLAR 0.0039uF 5% 50V
C308 1-130-477-00 MYLAR 0. 0033uF 5% 50V
C111. =: 1-126-012-11 ELECT 470uF 20% 16V C309 =1-130-477-00 MYLAR 0. 0033uF 5% 50V
C112 = 1-136-169-00 FILM 0. 22uF 5% 50V
C113 ~=1-130-469-00 MYLAR 680PF 5% 50V < CONNECTOR >
C114 =: 1-136-165-00 FILM 0. luF 5% 50V
C115 = 1-124-910-11 ELECT ATuF 20% 50V CN101 1-566-693-11 PIN, CONNECTOR 2P
CN102 1-564-506-11 PLUG, CONNECTOR 3P
C116 =. 1-124-122-11 ELECT 100uF 20% 50V (EX100) CN103 1-565-395-11 PIN, CONNECTOR 3P
C1l16)=—- 1-124-478-11 ELECT 100uF 20% 25V (S900) CN108 1-564-517-11 PLUG, CONNECTOR 2P
C117. ~—s- 1-130-469-00 MYLAR 680PF 5% 50V CN110 1-564-214-11 PIN, CONNECTOR 3P
Cil8 = =1-136-165-00 FILM 0. luF 5% 50V
C119 =: 1-124-910-11 ELECT ATuF 20% 50V CN111 1-566-693-11 PIN, CONNECTOR 2P
C120) ~=.1-136-165-00 FILM 0. luF 5% 50V < DIODE >
C121 = 1-136-165-00 FILM 0. luF 5% 50V
C122) ~=1-110-667-11 ELECT 6800uF 50V (EX100) D101 8-719-312-09 DIODE RBA-402
C122) =1-126-138-11 ELECT 4700uF 20% 50V (S900) D103 8-719-987-63 DIODE 1N4148M
C123) =: 1-110-667-11 ELECT 6800uF 50V (EX100) D104 8-719-987-63 DIODE 1N4148M
D107 ~=8-719-933-88 DIODE 4HZS16-2L
C123) =: 1-126-138-11 ELECT 4700uF 20% 50V (S900) D108 8~719-933-88 DIODE 4HZS16-2L
C124 ~=1-124-122-11 ELECT 100uF 20% 50V
C125 = 1-124-122~11 ELECT 100uF 20% 50V D147 =8-719-987-63 DIODE 1N4148M
