SA-SS888/WS888
SECTION 2
EXPLODED VIEWS
Ref. No. Part No. Description Remark

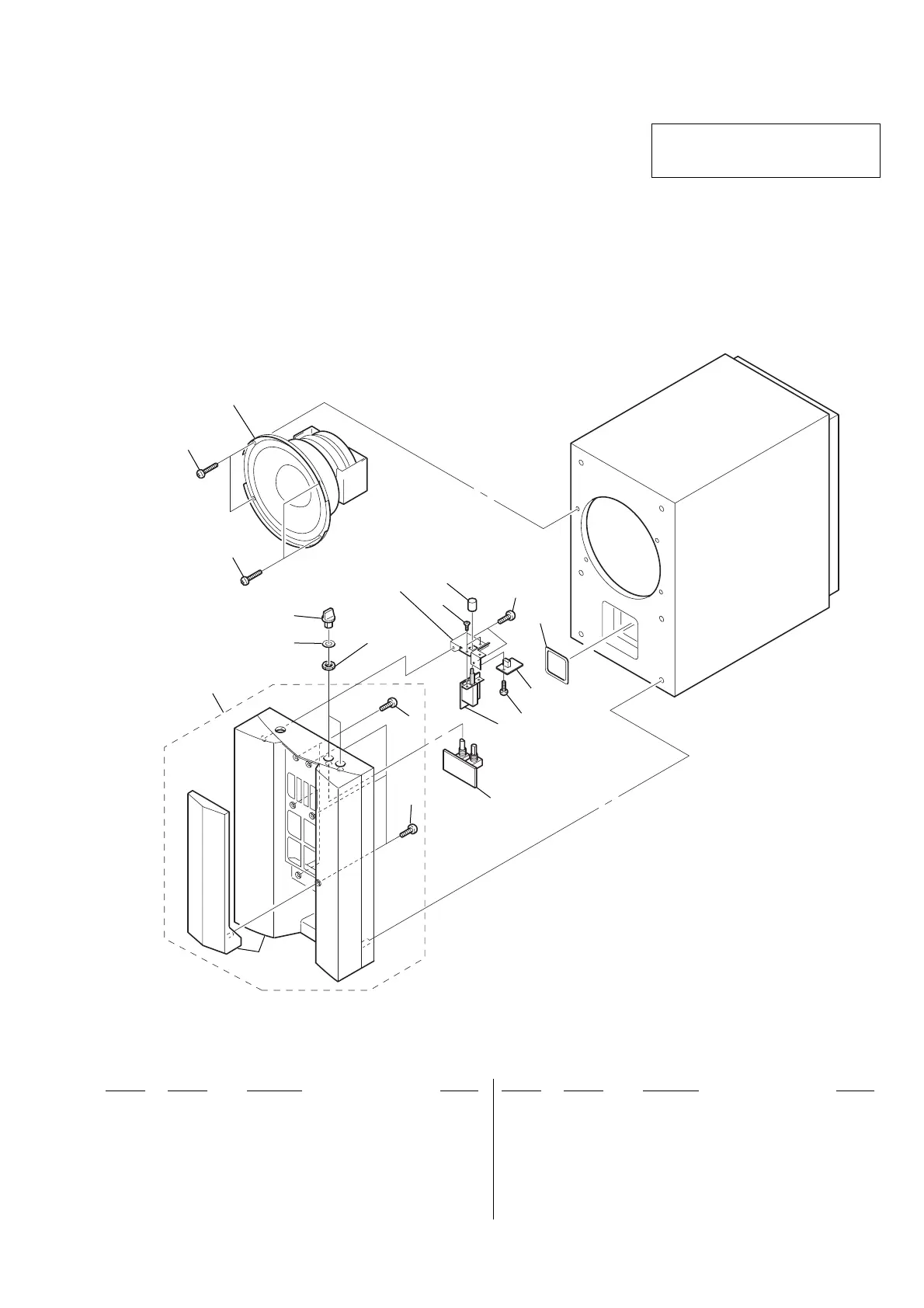

2-1. Front Panel Section (SA-WS888)
Ref. No. Part No. Description Remark
NOTE:
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
1 7-682-546-04 SCREW +P 3X5
2 X-4955-699-1 PANEL ASSY, FRONT
3 4-986-971-11 SCREW (3.5)
4 4-227-298-01 SHEET
5 4-999-482-11 KNOB (VOL)
6 4-231-866-01 PACKING
7 1-684-552-11 LED BOARD
8 1-684-553-11 POWER SWITCH BOARD
9 4-973-938-31 KNOB (A), PUSH
10 1-680-785-11 CONTROL BOARD
11 7-685-664-79 SCREW +P 4X20 TYPE1
12 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
SP1 1-529-296-12 SPEAKER (20cm)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
2
3
3
4
5
8
9
6
7
10
11
11
SP1
supplied with
RV201 and S201
12
12
1
not
supplied
not
supplied
• The mechanical parts with no reference
number in the exploded views are not supplied.
