NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
SECTION 3
EXPLODED VIEWS
8
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
• Abbreviation
CND : Canadian model
G : German model
MY : Malaysia model
SP : Singapore model

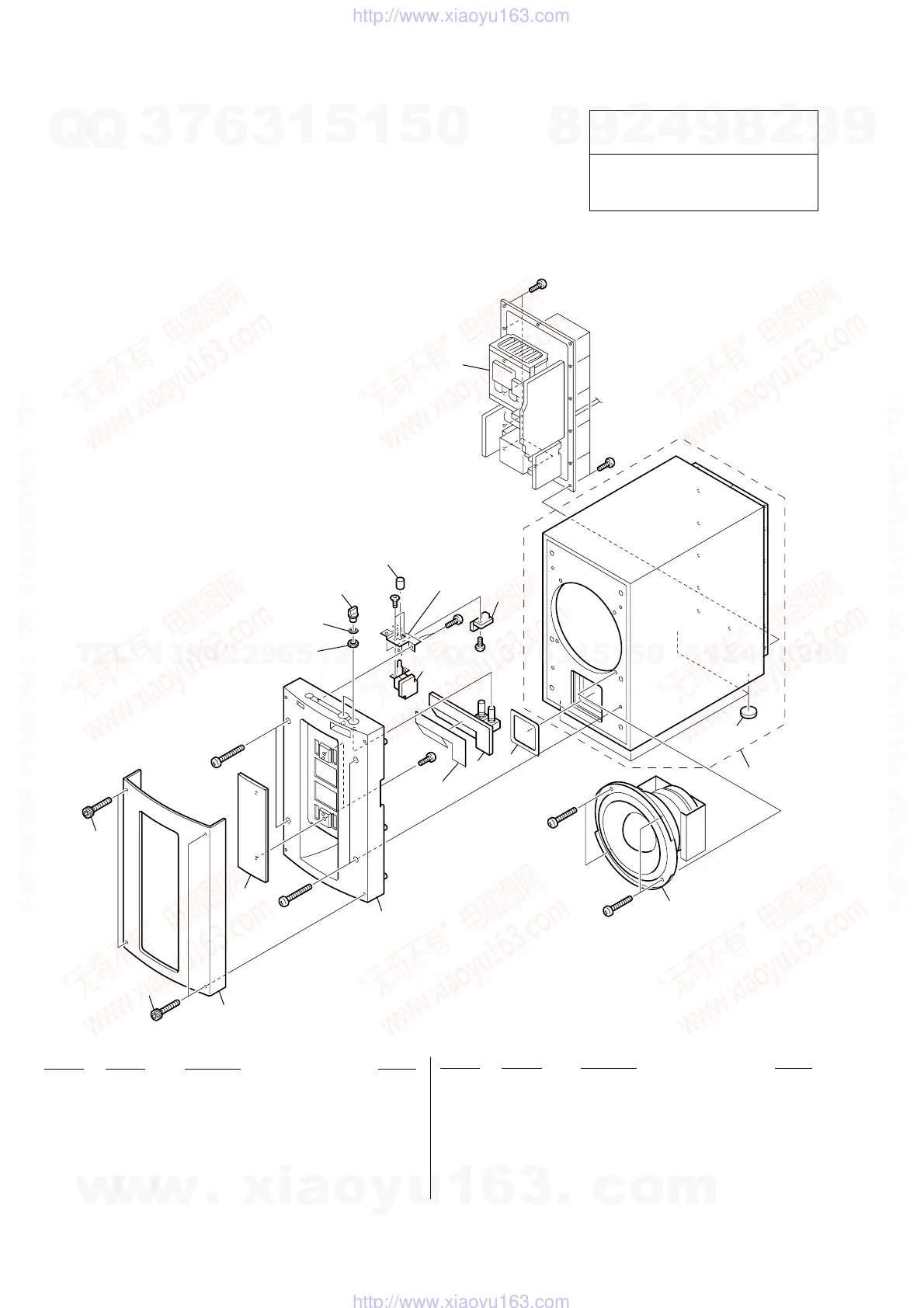

(1) FRONT PANEL SECTION
(SA-WMS815)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-222-422-01 SCREW(4X16)
2 4-220-858-01 PANEL(A), ORNAMENTAL
3 4-220-859-01 PANEL(B), ORNAMENTAL
4 X-4951-887-1 PANELASSY, FRONT
5 A-4412-008-A CABINET ASSY, SPEAKER
6 4-981-864-01 FOOT
7 4-222-467-01 PACKING
8 1-676-875-11 LEDBOARD
9 1-677-229-11 CONTROL BOARD
10 1-676-874-11 POWER SWITCH BOARD
11 4-973-938-31 KNOB(A), PUSH
12 4-999-482-11 KNOB(VOL)
13 4-217-642-01 SHEET
SP1 1-529-594-11 SPEAKER (20cm)
1
1
2
3
4
13
12
11
#2
#5
#1
#1
SP1
#2
#4
#5
#6
#6
Amplifier
section
#3
not supplied
Supplied with
RV201, S201
8
10
9
7
6
5
not supplied
