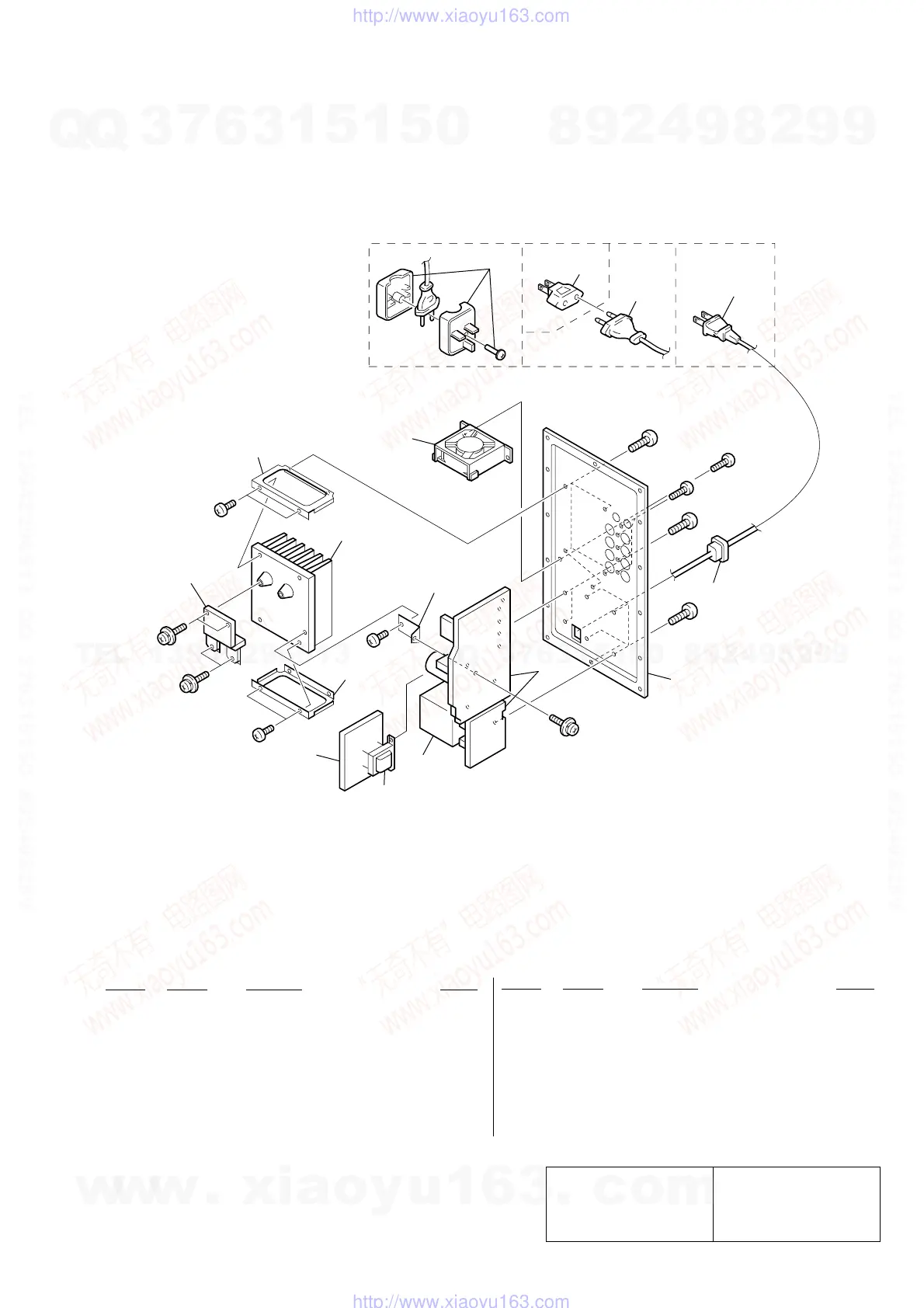

(2) AMPLIFIER SECTION
(SA-WMS815)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 1-676-873-11 POWER BOARD
52 A-4473-062-A MAINBOARD, COMPLETE
53 4-226-893-12 PANEL, REAR (US,CND)
53 4-226-893-21 PANEL, REAR (AEP,G,UK,SP,MY)
* 54 3-703-244-00 BUSHING (2104), CORD
056 1-751-520-11 CORD, POWER (UK)
056 1-769-744-11 CORD, POWER (AEP,G,SP,MY)
056 1-783-820-11 CORD, POWER (US,CND)
057 1-569-008-21 ADAPTOR, CONVERSION 2P (SP)
058 1-770-019-21 ADAPTOR, CONVERSION PLUG 3P (UK)
59 A-4473-059-A AUTOPOWER BOARD, COMPLETE
60 1-698-651-11 FAN,D.C.
0T501 1-433-731-11 TRANSFORMER, POWER (US,CND)
0T501 1-433-732-11 TRANSFORMER, POWER (AEP,G,UK,SP,MY)
0T601 1-435-476-11 TRANSFORMER, POWER (US,CND)
0T601 1-435-477-11 TRANSFORMER, POWER (AEP,G,UK,SP,MY)
51
52
54
53
59
not supplied
not supplied
#7
#7
#7
#7
#7
T501
#7
#8
#8
#8
#8
#8
not supplied
T601
not supplied
56
57
58
UK MODEL SP MODEL
US,CND MODEL
AEP,G,MY,SP,
UK MODEL
56
60
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
