SA-WCT100/SS-MCT100
4
SECTION 1
SERVICING NOTES
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to fl ow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
NOTE OF REPAIR CONFIRMING
Repair in the state of having connected with SA-WCT100 and SS-
MCT100.
NOTE THE IC3511 and IC3513 ON THE HDMI BOARD
REPLACING
When IC3511 and IC3513 cannot exchange with single. When
IC3511 and IC3513 are damaged, exchange the entire mounted
board.

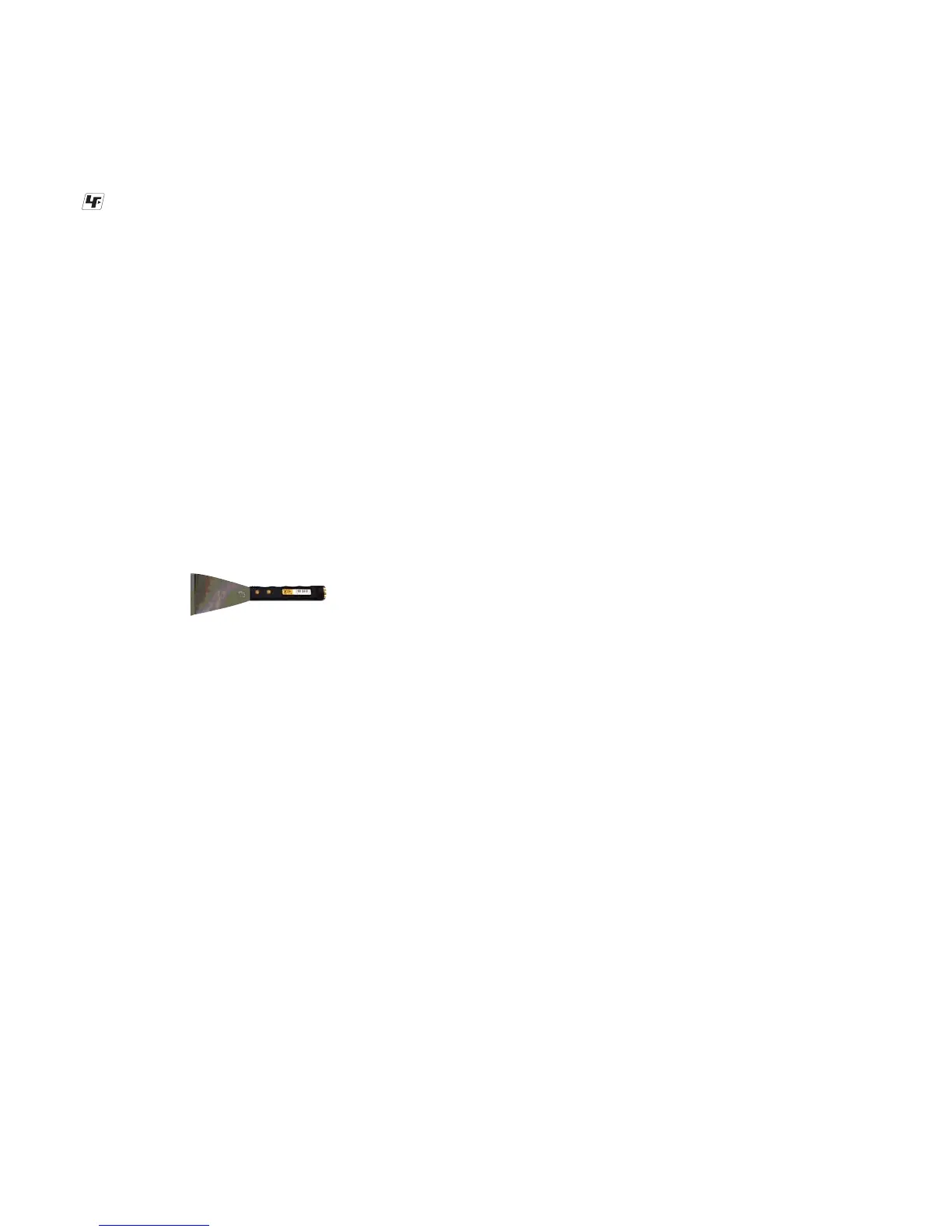

• JIG
When disassembling the set, use the following jig (for speaker
removal).
Part No.: J-2501-238-A
JIG FOR SPEAKER REMOVAL
