Sony SA-WMS335 - Exploded Views and Parts; Front Panel Assembly

7
SA-VE335/WMS335/SS-CN335/V335
SECTION 2
EXPLODED VIEWS
Ref. No. Part No. Description Remark

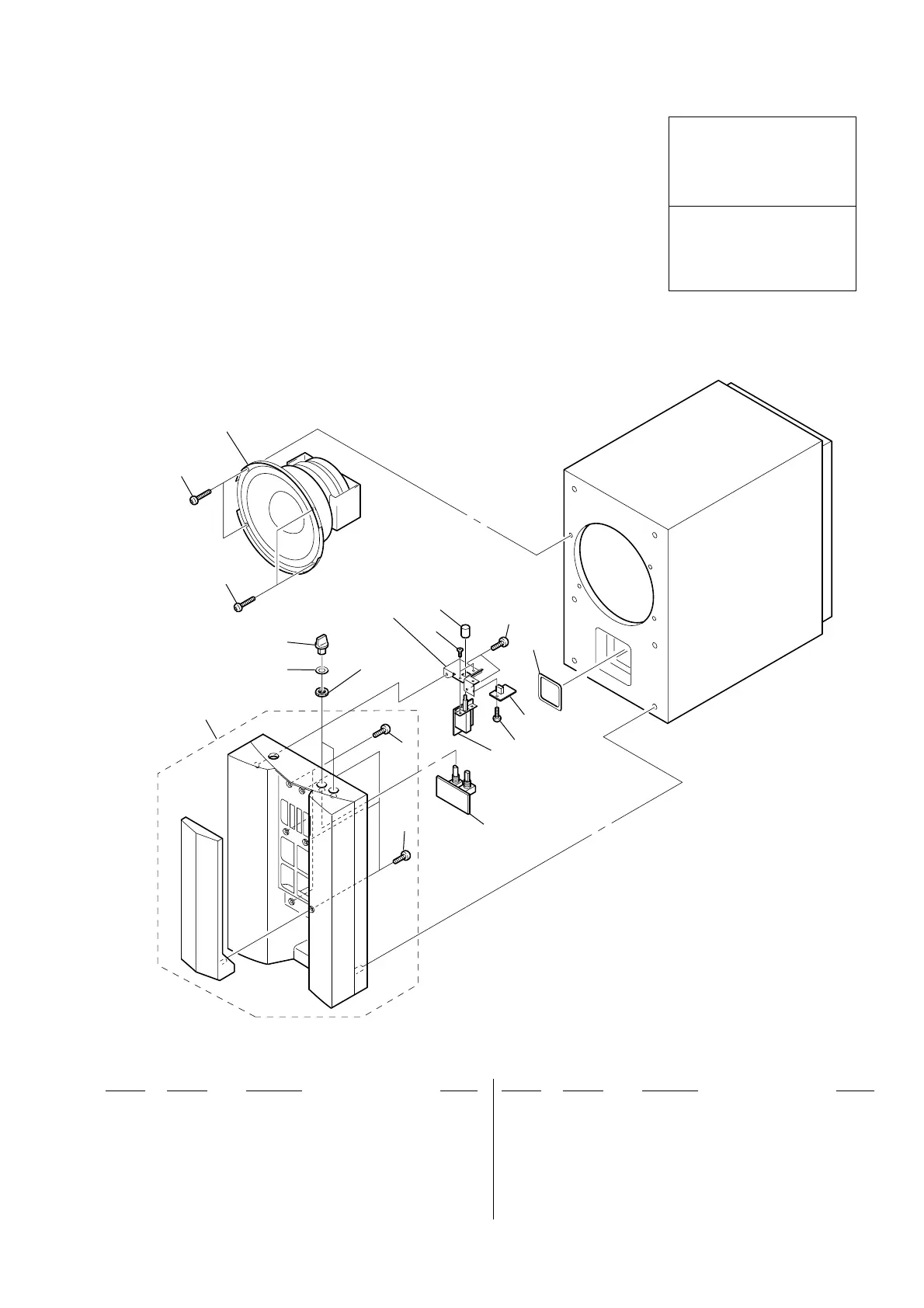

2-1. FRONT PANEL SECTION
(SA-WMS335)
Ref. No. Part No. Description Remark
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• Abbreviation
AR : Argentina model
CND : Canadian model
SP : Singapore model
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this
parts list.
RR
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
2
3
3
4
5
8
9
6
7
10
11
11
SP1
supplied with
RV201 and S201
12
12
1
not
supplied
1 7-682-546-04 SCREW +P 3X5
2 X-4954-596-1 PANEL ASSY, FRONT (AEP,UK,SP,AR)
2 X-4954-680-1 PANEL ASSY, FRONT (US,CND)
3 4-986-971-11 SCREW (3.5)
4 4-227-298-01 SHEET
5 4-999-482-11 KNOB (VOL)
6 4-231-866-01 PACKING
7 1-684-552-11 LED BOARD
8 1-684-553-11 POWER SWITCH BOARD
9 4-973-938-31 KNOB (A), PUSH
10 1-680-785-11 CONTROL BOARD
11 7-685-664-79 SCREW +P 4X20 TYPE1
12 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
SP1 1-529-296-11 SPEAKER (20cm)
