SA-VE345/WMS345/SS-CN345/V345
SECTION 2
EXPLODED VIEWS
Ref. No. Part No. Description Remark

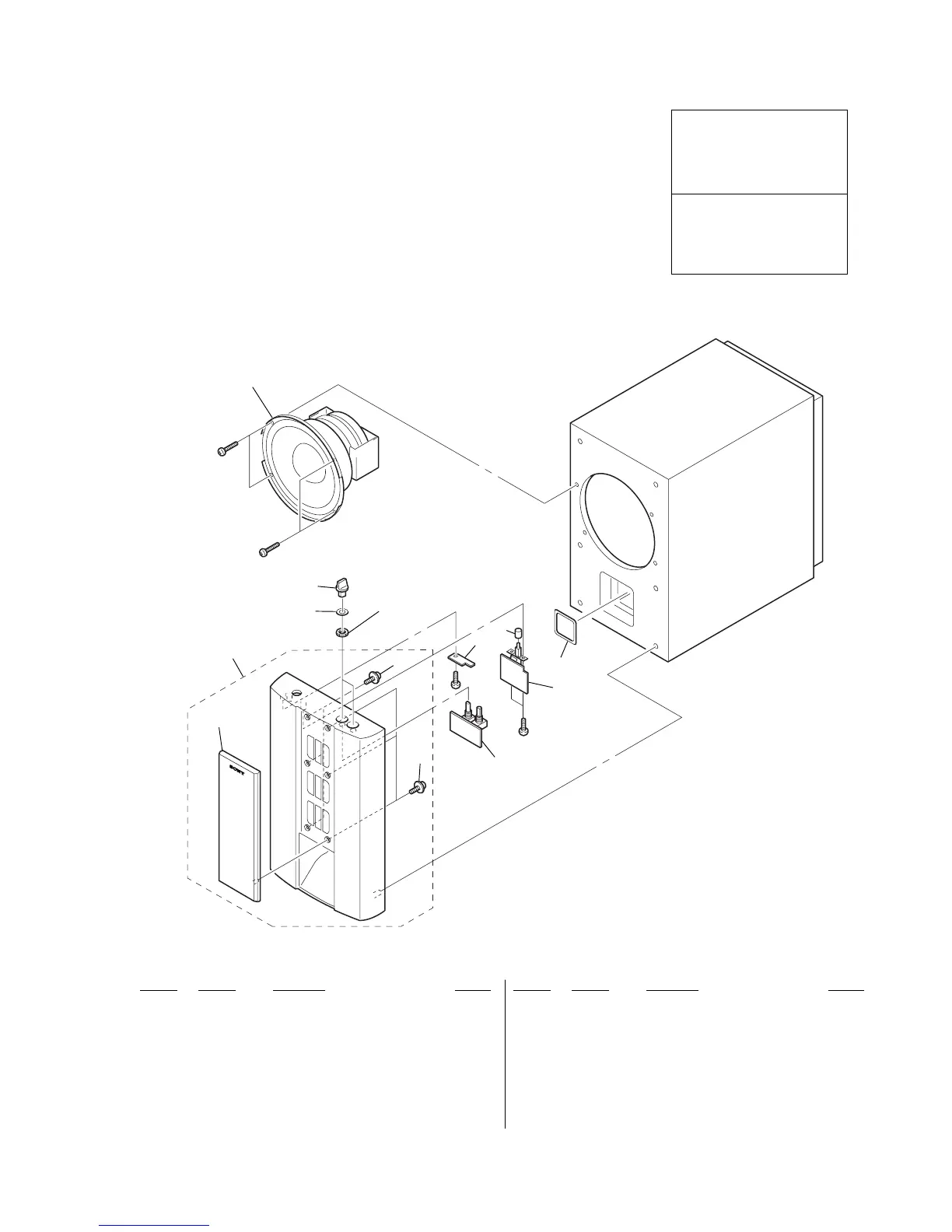

2-1. FRONT PANEL SECTION
(SA-WMS345)
Ref. No. Part No. Description Remark
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
•Abbreviation
CND : Canadian model
AUS: Australian model
SP : Singapore model
MY : Malaysia model
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this
parts list.
RR
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
11-680-785-11 CONTROL BOARD
2 X-4955-364-1 PANEL ASSY, FRONT (US,CND)
2 X-4955-488-1 PANEL ASSY, FRONT (EXCEPT US,CND)
33-703-564-21 SCREW, TAPPING
44-227-298-01 SHEET
54-999-482-11 KNOB (VOL) (SP,MY)
54-999-482-51 KNOB (VOL) (EXCEPT SP,MY)
64-231-866-01 PACKING
7 1-680-788-11 LED BOARD
8 4-973-938-31 KNOB (A), PUSH (SP,MY)
8 4-973-938-61 KNOB (A), PUSH (EXCEPT SP,MY)
9 1-680-787-11 POWER SWITCH BOARD
SP1 1-529-296-12 SPEAKER (20cm) (WOOFER)
#1 7-685-664-79 SCREW +P 4X20 TYPE1
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
2
3
3
4
5
8
9
6
7
1
SP1
supplied with
RV201 and S201
#1
#1
#2
#2
not
supplied
Ver 1.1
To Next Page
