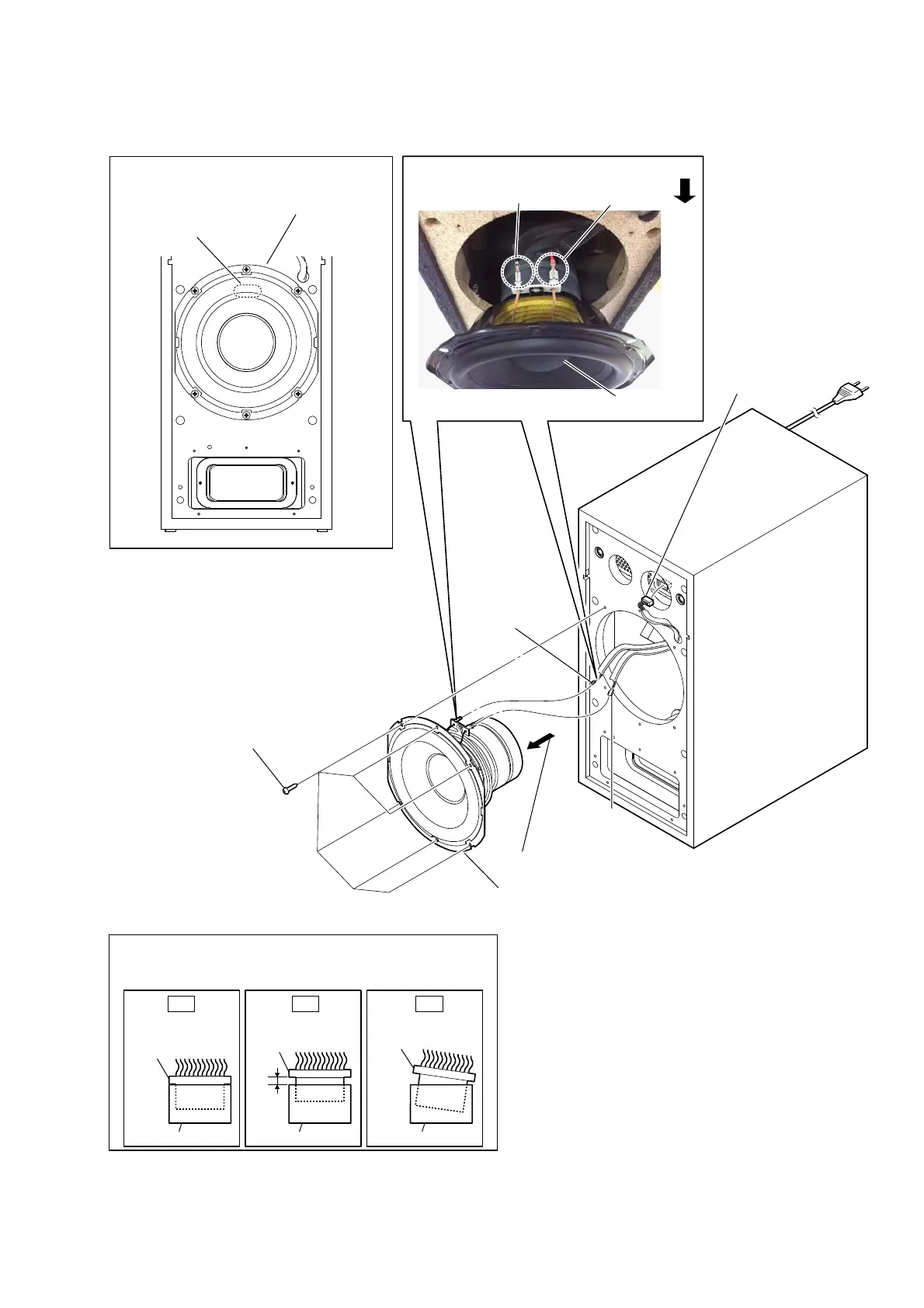

2-4. LOUDSPEAKER 16CM
– Front view –
1 six screws ((1) (4 x 20), +BV TAPPING)
5 CN1001 (4P)
2 Remove the loudspeaker 16cm
in the direction of the arrow.
4 loudspeaker 16cm
3 terminal
(narrow side)
3 terminal
(wide side)
loudspeaker 16cm
loudspeaker 16cm
terminal position
,QVWDOODWLRQGLUHFWLRQIRUWKHORXGVSHDNHU
FP
terminal (wide side)
:LUHVHWWLQJ
front side
terminal (narrow side)
Note:
When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
OK NG NG
