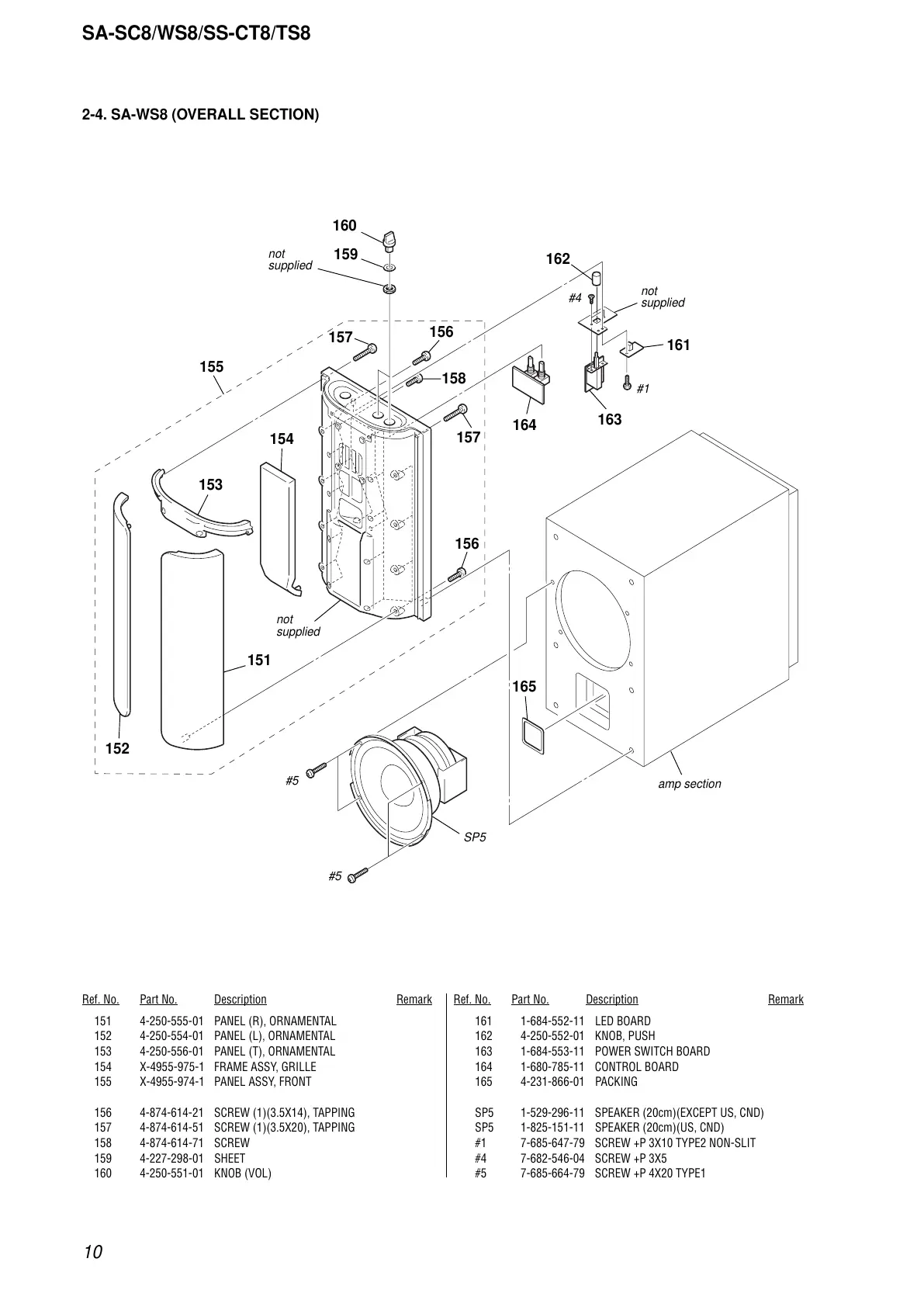

2-4. SA-WS8 (OVERALL SECTION)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 4-250-555-01 PANEL (R), ORNAMENTAL
152 4-250-554-01 PANEL (L), ORNAMENTAL
153 4-250-556-01 PANEL (T), ORNAMENTAL
154 X-4955-975-1 FRAME ASSY, GRILLE
155 X-4955-974-1 PANEL ASSY, FRONT
156 4-874-614-21 SCREW (1)(3.5X14), TAPPING
157 4-874-614-51 SCREW (1)(3.5X20), TAPPING
158 4-874-614-71 SCREW
159 4-227-298-01 SHEET
160 4-250-551-01 KNOB (VOL)
161 1-684-552-11 LED BOARD
162 4-250-552-01 KNOB, PUSH
163 1-684-553-11 POWER SWITCH BOARD
164 1-680-785-11 CONTROL BOARD
165 4-231-866-01 PACKING
SP5 1-529-296-11 SPEAKER (20cm)(EXCEPT US, CND)
SP5 1-825-151-11 SPEAKER (20cm)(US, CND)
#1 7-685-647-79 SCREW +P 3X10 TYPE2 NON-SLIT
#4 7-682-546-04 SCREW +P 3X5
#5 7-685-664-79 SCREW +P 4X20 TYPE1
165
155
152
151
153
154
SP5
not
supplied
not
supplied
159
160
163
156
156
157
157
158
162
161
164
#1
#5
#5
#4
not
supplied
amp section
