Names and Functions of Parts

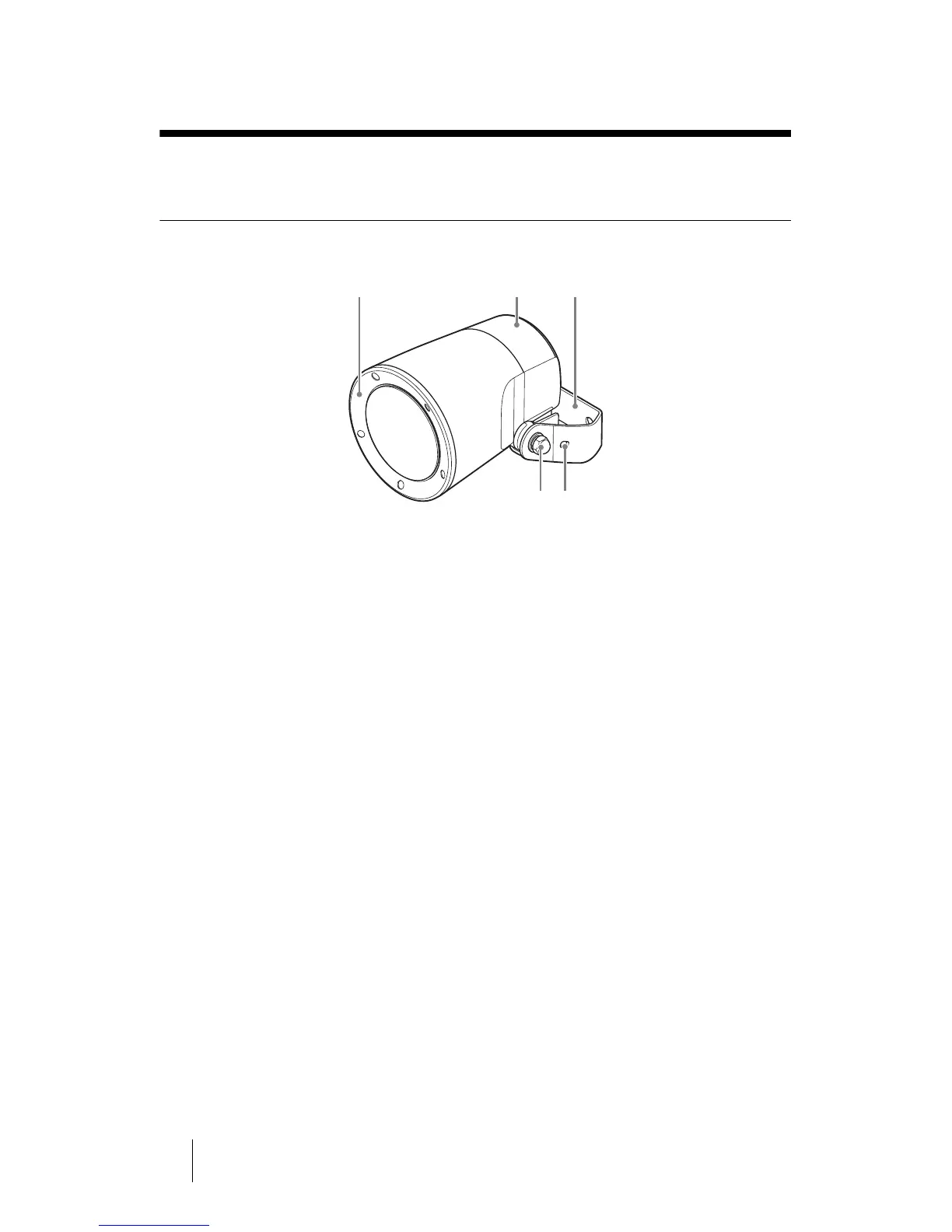

Front
A Front panel
Sound is emitted from here.
B Cover
Covers the cable connections.
Be sure to secure it to prevent detachment.
C Frame
Used for mounting the speaker onto a wall or pole.
Use the screws supplied with the mount bracket (not supplied) to secure the speaker.
D Adjustment bolts
Adjusts the angle of the speaker.
Tighten the bolts to lock the angle.
E Safety wire rope holes
Run the safety wire rope through here.
Always attach the safety wire rope to prevent the unit from falling. (See page 13)
