Names and Functions of Parts

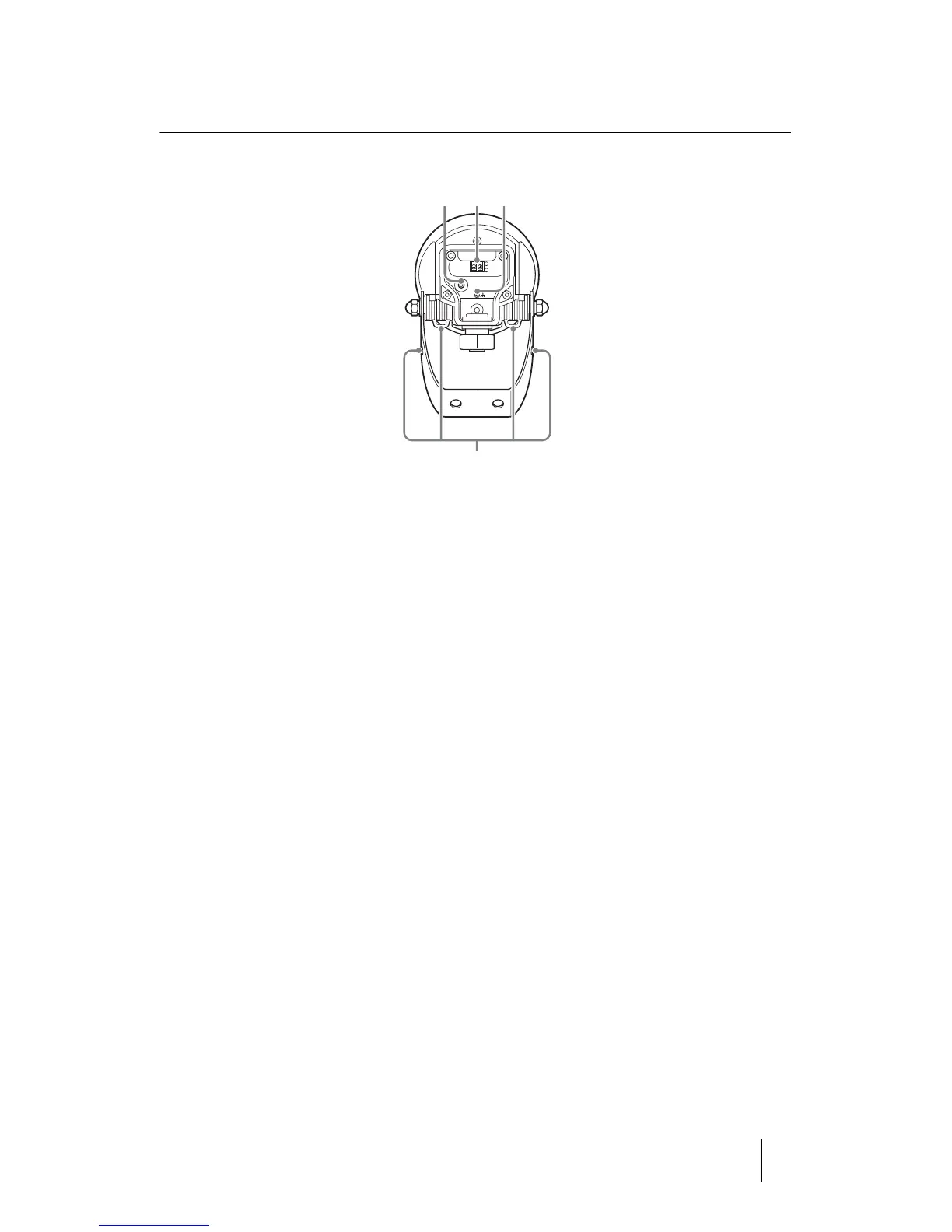

Rear
A AUDIO IN connector (3-pole mini stereo / 2-pole mini plug)
This is the LINE input connector.
Although 3-pole mini stereo is supported, stereo inputs will be output in monaural.
B Power input connector (24 V AC)
Connect to a 24 V AC power supply unit.
C U grounding terminal
Used for grounding the unit. Always ground the unit.
D Safety wire rope holes
Run the safety wire rope through here.
Always attach the safety wire rope to prevent the unit from falling. (See page 13)
