Sony SCPH-50000 - Overall and Main Block

- 7 -

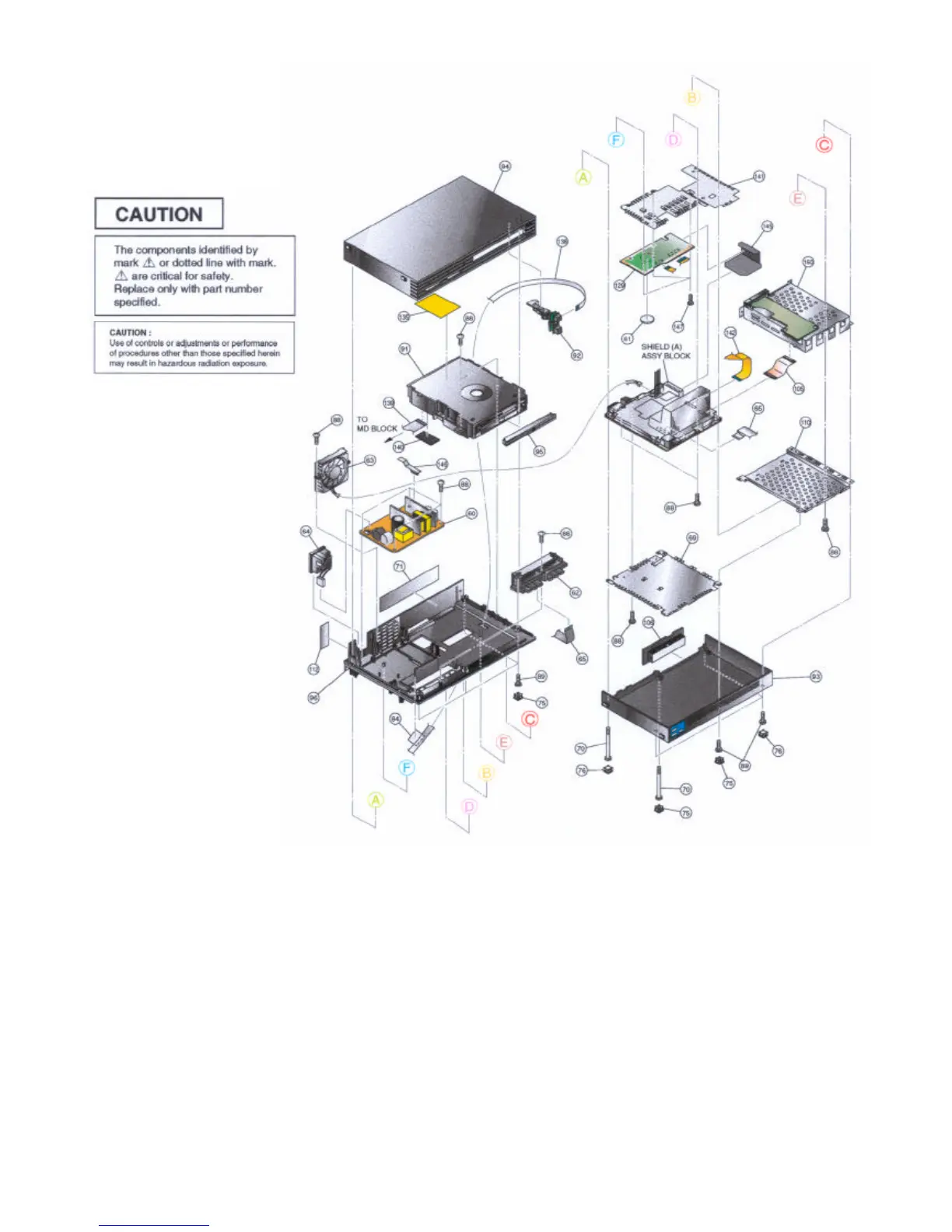

REPAIR PARTS LIST – EXPLODED VIEWS – SCPH-30002/30003/30004 (C, C’)
Ref-No. Part No. Description Remark Place code
60 1-468-565-21 POWER BLOCK #00
61 1-528-174-41 PS2 BATTERY, LITHIUM OTHER NON-PS2 “LITHIUM CR2032 #25GD
(CR2032 TYPE) TYPE BATTERY” MAY BE USED.
62 1-694-767-11 TERMINAL BOARD (FRONT) #17
63 1-763-480-11 DC. FAN #74
64 1-771-995-12 SWITCH, POWER (WITH AC INLET) #00
65 1-792-491-21 CABLE, FLEXIBLE FLAT (FFC-290) #12
69 3-066-489-01 SHIELD (B) #16
70 3-059-622-02 SCREW (M3X54), HEAD TAPPING #87
75 3-059-626-03 COVER, SCREW #22
76 3-059-627-01 CAP #22
88 3-325-679-21 SCREW, TAPPING +BV 3X12 #87
93 X-3951-398-1 COVER ASSY, LOWER #87
94 X-3951-498-1 COVER ASSY, UPPER #87
95 X-3951-099-1 PLATE ASSY, ORNAMENTAL #87
105 1-680-147-11 PWB, FP-324 FLEXIBLE #12
106 X-3951-317-1 LID ASSY #87
112 3-066-498-01 TAPE, VOID #87
138 1-757-588-11 CABLE, FLAT (FFC-308) #12
139 1-757-590-11 CABLE, FLAT (FFC-310) #12
142 1-757-589-11 CABLE, FLAT (FFC-309) #25GD
Overall and Main Block
