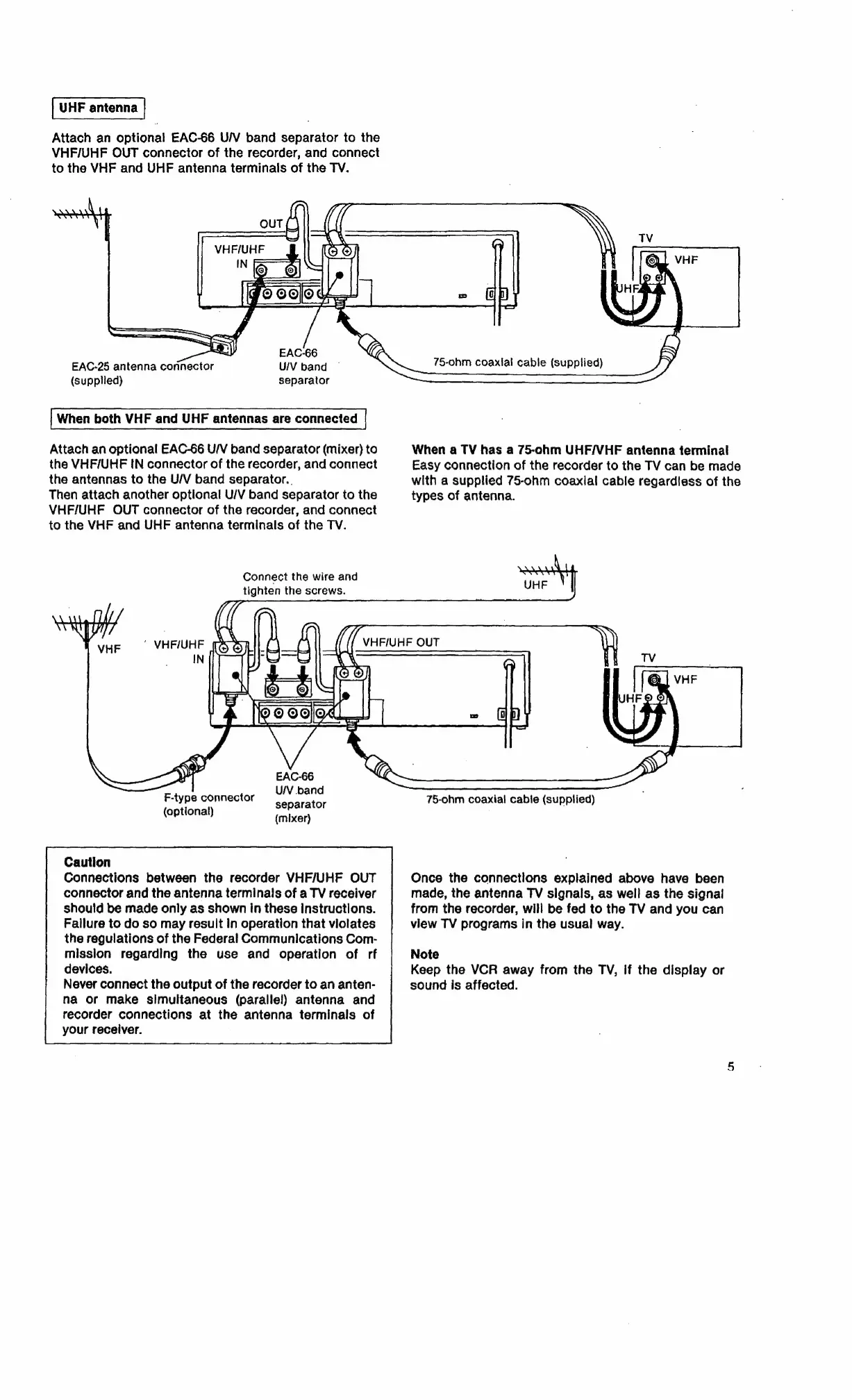

UHF
antenna
Attach
an
optional
EAC-66
U/V
band
separator
to
the
VHF/UHF
OUT
connector
of
the
recorder,
and
connect
to
the
VHF
and
UHF
antenna
terminals
of
the
TV.
Ks
EAC-66
(C
EAC-25
antenna
connector
UIV
band
©
WS
75-ohm
coaxial
cable
(supplied)
,)
(supplied)
separator
When
both
VHF
and
UHF
antennas
are
connected
Attach
an
optional
EAC-66
U/V
band
separator
(mixer)
to
the
VHF/UHF
IN
connector
of
the
recorder,
and
connect
the
antennas
to
the
U/V
band
separator.
Then
attach
another
optional
U/V
band
separator
to
the
VHF/UHF
OUT
connector
of
the
recorder,
and
connect
to
the
VHF
and
UHF
antenna
terminals
of
the
TV.
Connect
the
wire
and
tighten
the
screws.
:
|
in
NF
oft
i
VHF
VHF/UH
27
CY
’
\
<0
:
U/V
band
F-type
connector
separator
(optional)
(mixer)
Caution
Connections
between
the
recorder
VHF/UHF
OUT
connector
and
the
antenna
terminals
of
a
TV
receiver
should
be
made
only
as
shown
in
these
instructions.
Failure
to
do
so
may
result
in
operation
that
violates
the
regulations
of
the
Federal
Communications
Com-
mission
regarding
the
use
and
operation
of
rf
devices.
Never
connect
the
output
of
the
recorder
to
an
anten-
na
or
make
simultaneous
(parallel)
antenna
and
recorder
connections
at
the
antenna
terminals
of
your
receiver.
((
VHF/UHF
OUT
|
q
j=
~
When
a
TV
has
a
75-ohm
UHF/VHF
antenna
terminal
Easy
connection
of
the
recorder
to
the
TV
can
be
made
with
a
supplied
75-ohm
coaxial
cable
regardless
of
the
types
of
antenna.
UHF
~
TV
:
GO
|
VHF
1
aUHF
po]
SV
75-ohm
coaxial
cable
(supplied)
Once
the
connectlons
explained
above
have
been
made,
the
antenna
TV
signals,
as
well
as
the
signal
from
the
recorder,
will
be
fed
to
the
TV
and
you
can
view
TV
programs
in
the
usual
way.
Note
Keep
the
VCR
away
from
the
TV,
if
the
display
or
sound
is
affected.
