6 (E)
SR84 / SR85, CH33

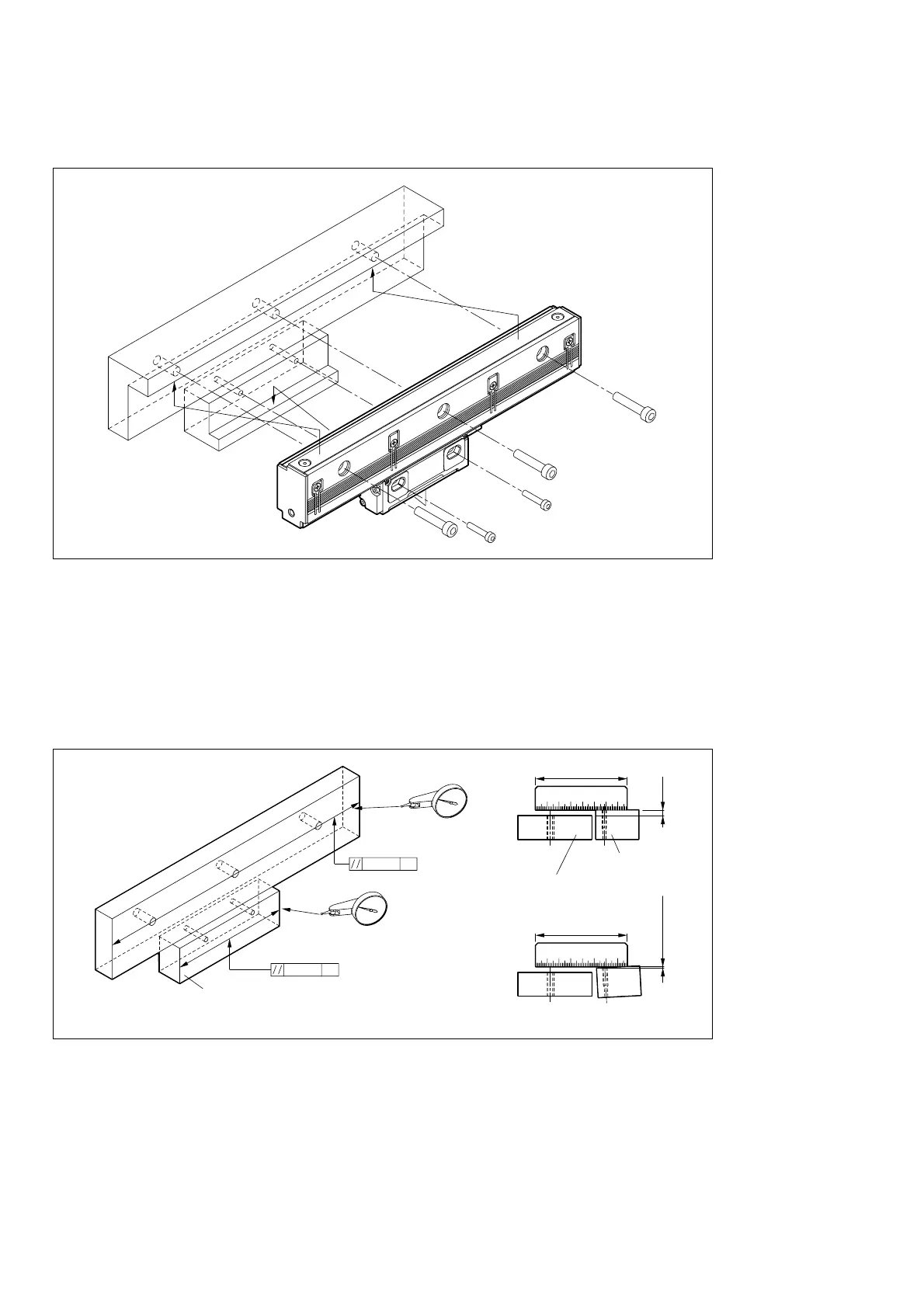

Fig. 8
3. Bring the scale into contact with the stop surfaces and install.
Example 2: Installation when a stop surface of the scale and slider is not made with the
bracket
1. Adjust the parallelism of the scale bracket and slider bracket with respect to the machine guide, and then
secure in place. Adjust the height and parallelism of the slider bracket with respect to the scale bracket,
and then secure in place.
Fig. 9
Unit: mm
0.05 or less
78
±0.3
5
±0.2
78
±0.3
0.05
MG
0.05
MG
Slider bracket
Slider bracket
Scale bracket
To Next Page
