— 15 —
SECTION 5

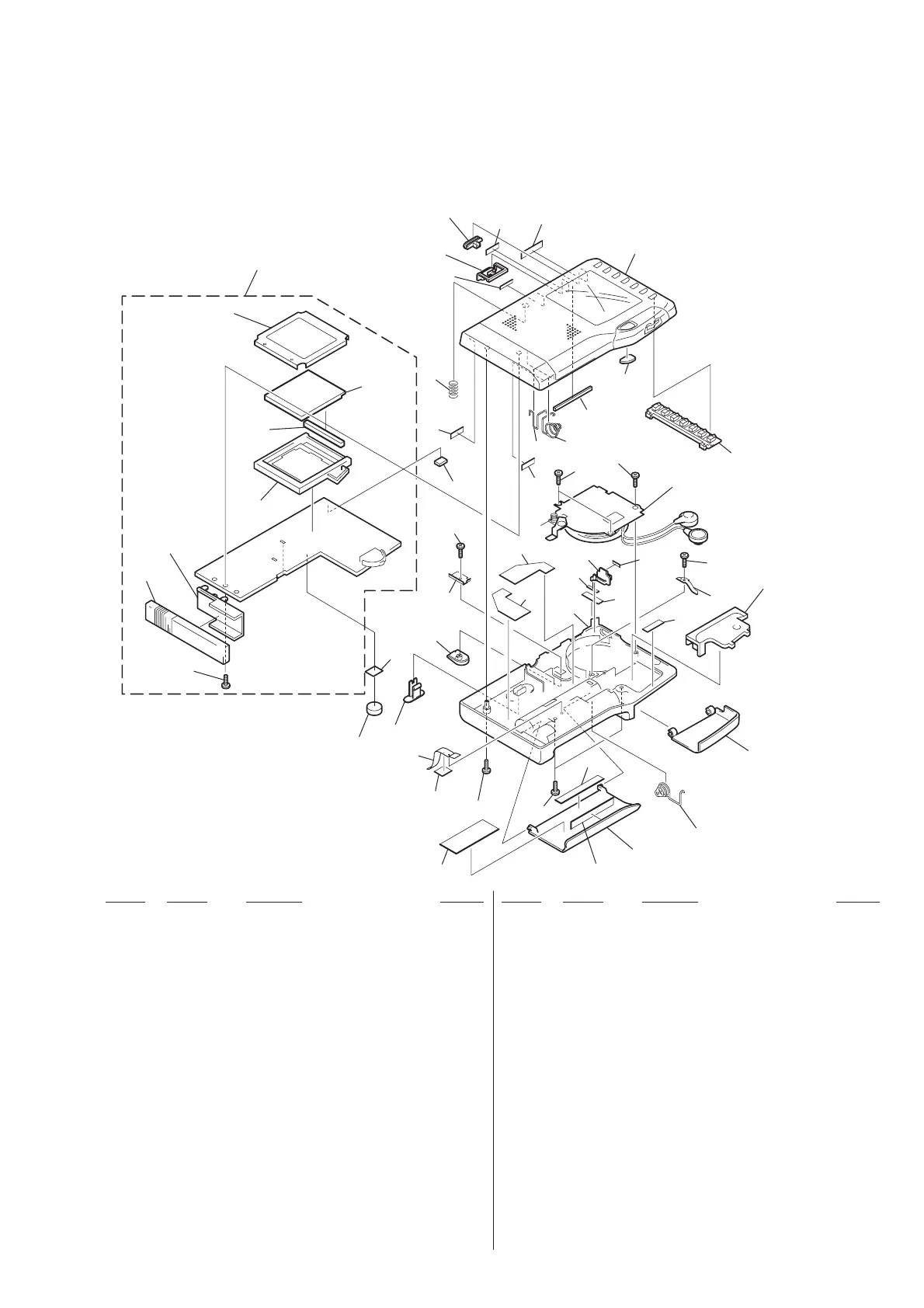

EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Accessories and packing materials is given in
the last of this parts list.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 3-034-732-01 COMBINED (BUTTON)
2 3-965-034-01 SPRING, COMPRESSION
3 3-034-699-01 TERMINAL (+), BATTERY
4 3-034-700-01 TERMINAL (–), BATTERY
5 3-379-174-11 SCREW(+P1.4 × 4)
6 3-032-525-01 SCREW(+P1.2 × 1.5)
7 3-032-492-01 PLATE(REWIND)
8 3-034-712-01 BUTTON (POWER)
9 3-034-697-01 PLATE, CLICK
10 3-034-715-01 COMBINED (COVER)
11 3-034-718-01 TERMINAL (+/–), BATTERY
12 3-034-703-01 LID,BATTERY CASE
13 3-034-722-01 SCREW (M1.7 × 5), TAPPING
14 3-036-917-01 SCREW, TAPPING (1.4 × 10)
15 3-917-963-01 CLOTH, BATTERY PICK
16 3-034-716-01 COMBINED (KNOB)
* 17 A-3683-053-A MAIN BOARD, COMPLETE
18 3-316-938-51 SCREW (B1.4 × 6), TAPPING
19 3-034-717-11 COMBINED (HOLDER)
20 3-035-166-11 SPACER (LCD)
21 3-034-702-11 CABINET (REAR)
22 1-694-499-11 CONDUCTIVE BOARD, CONNECTION
* 23 3-036-658-01 SHEET (SECONDARY BATTERY)
24 3-036-660-01 SPACER (3 × 6)
25 X-3377-656-1 CABINET (FRONT) ASSY (RP)
26 3-038-780-01 SPACER (5 × 3)
27 3-038-906-01 CUSHION (BATTERY CASE LID A)
28 3-039-001-01 SPACER (1.5 × 5)
29 3-038-907-01 CUSHION (BATTERY CASE LID B)
30 3-038-774-01 SPACER (5 × 2)
31 3-038-781-01 SHEET, ADHESIVE (2 × 5)
32 3-038-853-01 SPACER (SHAFT)
33 3-038-775-01 SPACER (12 × 1.8)
L201 1-501-974-21 ANTENNA, FERRITE-ROD (MW)
BATT2 1-528-412-11 BATTERY, PAS SECONDARY
HP101 X-3377-652-1 REEL ASSY
LCD101 1-803-512-11 PANEL, LIQUID CRYSTAL DISPLAY
r
A :
Knob(HOLD)
r
A
r
C
r
B
r
B :
Knob(EAR/SP)
r
C : Button
(NOISE CUT)
4
A :
Cover
W
A : Cap
(MENU)
p
A : Holder (LCD), G
4
A
HP101
not supplied
BATT2
L201
LCD101
2
20
25
3
4
5
5
5
6
24
7
23
8
21
9
10
(including
4
A
1
(including
W
A )
11
12
13
14
18
22
16
(including
r
A -
r
C)
17
19
(including
p
A )
p
A
W
A
26
33
26
28
26
28
30
31
31
27
27
29
15
23
32
32
