Sony SRS-D4100 - 3 Exploded Views; Subwoofer Section

11
SRS-D4100/D5100
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
SECTION 3
EXPLODED VIEWS

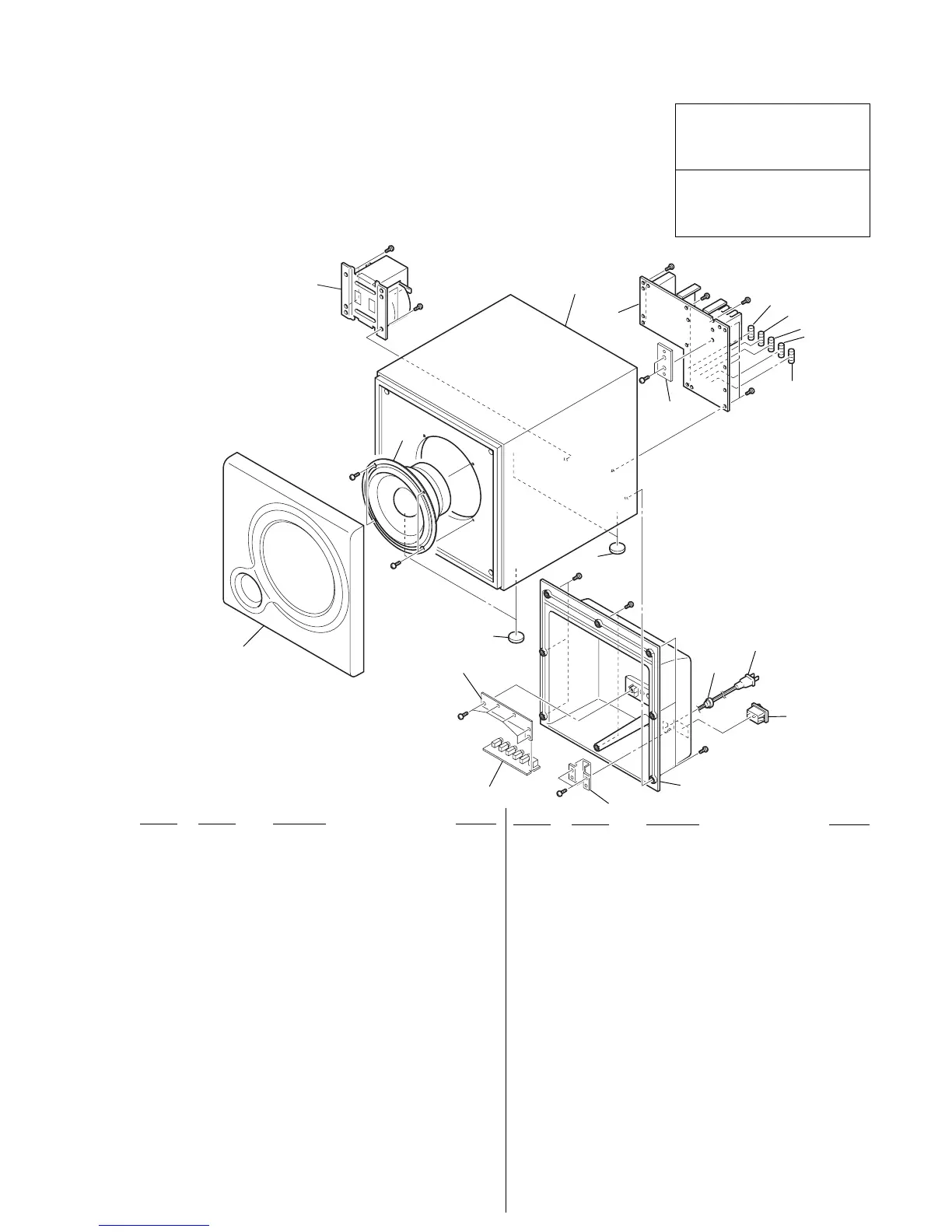

3-1. SUBWOOFER SECTION
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) … (RED)
↑↑
Parts color Cabinet's color
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Accessories are given in the last of this parts
list.
• Abbreviation
CND : Canadian model
KR : Korean model
The components identified by mark 0 or
dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
Les composants identifiés par une
marque 0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
1
not supplied
#2
#2
2
8
#1
#1
4
4
#2
#2
#2
#4
not supplied
not supplied
#4
7
6
5
#3
3
#4
#4
#4
#4
F901
F902
F905
F90
3
F904
T901
not supplied
S901
1 X-3384-826-1 WOOFER CABINET MAIN ASSY (US, CND)
1 X-3384-923-1 WOOFER CABINET MAIN ASSY (AEP, UK, KR)
2 1-825-753-11 SPEAKER UNIT (165mm)
3 A-4547-114-A AMP BOARD, COMPLETE (D5100: US, CND)
3 A-4547-162-A AMP BOARD, COMPLETE (D4100: US)
3 A-4547-341-A AMP BOARD, COMPLETE (D4100: AEP)
3 A-4547-343-A AMP BOARD, COMPLETE (D5100: AEP, UK, KR)
4 3-264-690-01 FOOT, WOOFER
5 3-264-525-01 PANEL, REAR (D5100: US, CND)
5 3-264-525-11 PANEL, REAR (D5100: AEP, UK)
5 3-264-525-31 PANEL, REAR (D5100: KR)
5 3-264-847-01 PANEL, REAR (D4100: US)
5 3-264-847-11 PANEL, REAR (D4100: AEP)
0 6 1-696-169-12 CORD, POWER (AEP, UK)
0 6 1-769-079-32 CORD, POWER (KR)
0 6 1-783-531-72 CORD, POWER (US, CND)
7 4-217-350-11 STOPPER, CORD
8 X-2022-446-1 FRONT SUB ASSY, WOOFER (D4100:US,CND)
8 X-2022-447-1 FRONT SUB ASSY, WOOFER (D4100:AEP,UK)
8 X-2022-453-1 FRONT SUB ASSY, WOOFER (D5100:US,CND)
8 X-2022-454-1 FRONT SUB ASSY, WOOFER (D5100:AEP,UK, KR)
0 F901 1-532-505-32 FUSE (T5AL/250V) (AEP, UK, KR)
0 F901 1-533-420-11 FUSE, GLASS CYLINDRICAL (DIA.5) (5A/125V)
(US, CND)
0 F902 1-532-505-32 FUSE (T5AL/250V) (AEP, UK, KR)
0 F902 1-533-420-11 FUSE, GLASS CYLINDRICAL (DIA.5) (5A/125V)
(US, CND)
0 F903 1-532-506-32 FUSE (T6.3AL/250V) (AEP, UK, KR)
0 F903 1-533-310-11 FUSE, GLASS CYLINDRICAL (DIA.5) (6.3A/125V)
(US, CND)
0 F904 1-532-506-32 FUSE (T6.3AL/250V) (AEP, UK, KR)
0 F904 1-533-310-11 FUSE, GLASS CYLINDRICAL (DIA.5) (6.3A/125V)
(US, CND)
0 F905 1-532-463-32 FUSE (T1AL/250V) (AEP, UK, KR)
0 F905 1-533-689-11 FUSE, GLASS CYLINDRICAL (DIA.5) (1A/125V)
(US, CND)
0 S901 1-762-876-11 SWITCH, AC POWER (AEP, UK, KR)
0 T901 1-443-207-11 TRANSFORMER, POWER (US, CND)
0 T901 1-443-209-11 TRANSFORMER, POWER (AEP, UK, KR)
#1 7-685-664-79 SCREW +PTP 4X20 TYPE1
#2 7-685-663-71 SCREW +BVTP 4X16 TYPE2 N-S
#3 7-682-550-04 SCREW +B 3X12 (AEP, UK, KR)
#3 7-685-550-04 SCREW +BTP 3X16 TYPE1 (US, CND)
#4 7-685-647-14 SCREW +BVTP 3X10 TYPE2 SLIT
Ver 1.1
