2-3. GRILLE FRAME ASSY (SS-CT350)

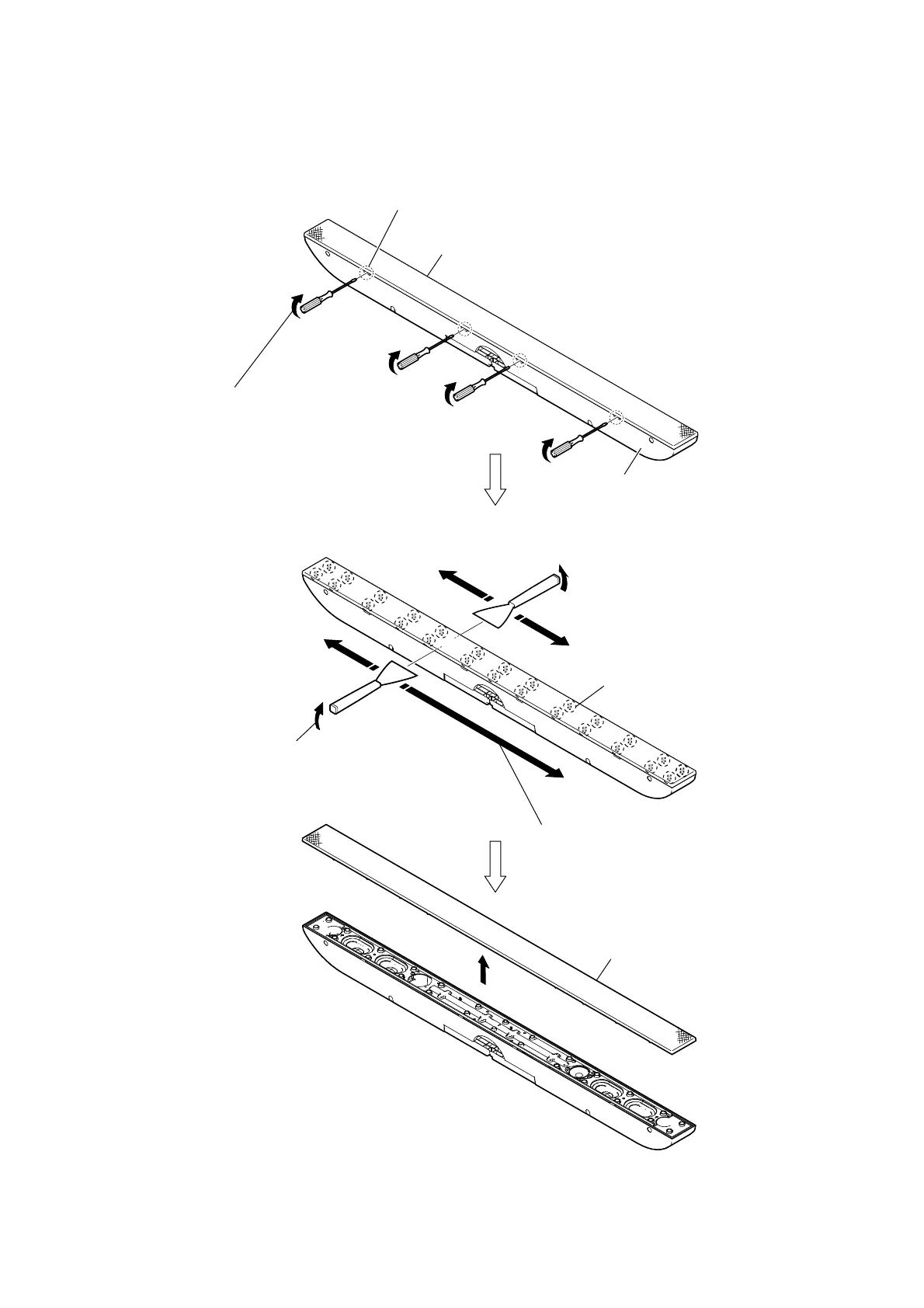

Note 1: Please set as shown in fi gure and work.
bottom side
total twenty-six bosses
total four slits
1 Insert a flat-head screwdriver into
a recess in the bottom of the set
to raise the grille frame assy a little.
1
1
1
2
3
3
3
4
3 All bosses are removed while
moving jig in the direction of
the arrow, and grille frame assy
is removed.
5 grille frame assy
grille frame assy
2 Insert the jig (Part No. J-2501-238-A) into a space
and raise the grille frame assy gradually.
Note 2: When using a jig, please work so as not
to injure grille frame assy and speaker
cabinet assy.
