Sony SS-CT150 - Diagrams; SS-SPEAKER Board Printed Wiring Board; SS-SPEAKER Board Schematic Diagram

SS-CT150/CT350
5
For Schematic Diagrams.
Note:
• C : Panel designation.
• Signal path.
F : AUDIO
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
For Printed Wiring Boards.
Note:
• X : Parts extracted from the component side.
• : Pattern from the side which enables seeing.
(The other layers’ patterns are not indicated.)
SECTION 3
DIAGRAMS

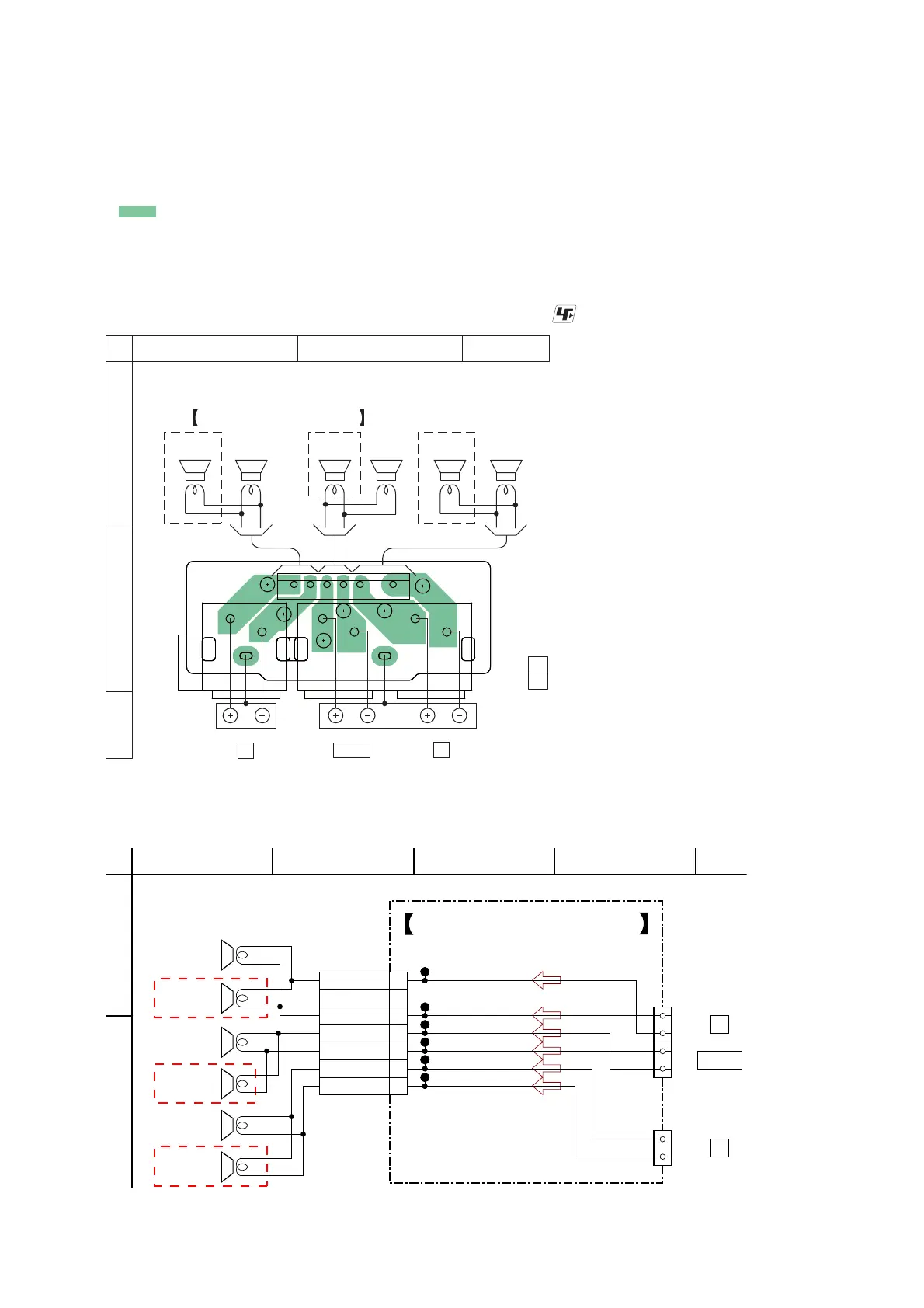

3-1. PRINTED WIRING BOARD - SS-SPEAKER Board -
3-2. SCHEMATIC DIAGRAM - SS-SPEAKER Board -
• : Uses unleaded solder.
JL891
JL893
JL894
JL895
JL896
JL897
137
TB891
TB892
CN892
CENTER
L
R
1-881-169-
11
(11)
SS-SPEAKER BOARD
(FRONT R-ch)
SP891
(CENTER)
SP894
(CENTER)
SP893
(FRONT L-ch)
SP896
(CT350)
(CT350)
(CT350)
(FRONT L-ch)
SP895
A
B
C
1 2 3
(FRONT R-ch)
SP892
JL897
JL893
JL891
JL896
(+)
(-)
(+)
(-)
TB891
JL895
JL894
(-)
(+)
TB892
1
3
4
5
6
7
7P
CN892
FR-
FR+
2NC
C-
C+
FL-
FL+
L
CENTER
R
SS-SPEAKER BOARD
SP893
(CENTER)
SP895
(FRONT L-ch)
SP892
(FRONT R-ch)
SP896
(FRONT L-ch)
4
B
351
A
2
SP891
(FRONT R-ch)
(CT350)
(CT350)
(CT350)
SP894
(CENTER)
