SS-CT150/CT350
3
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.

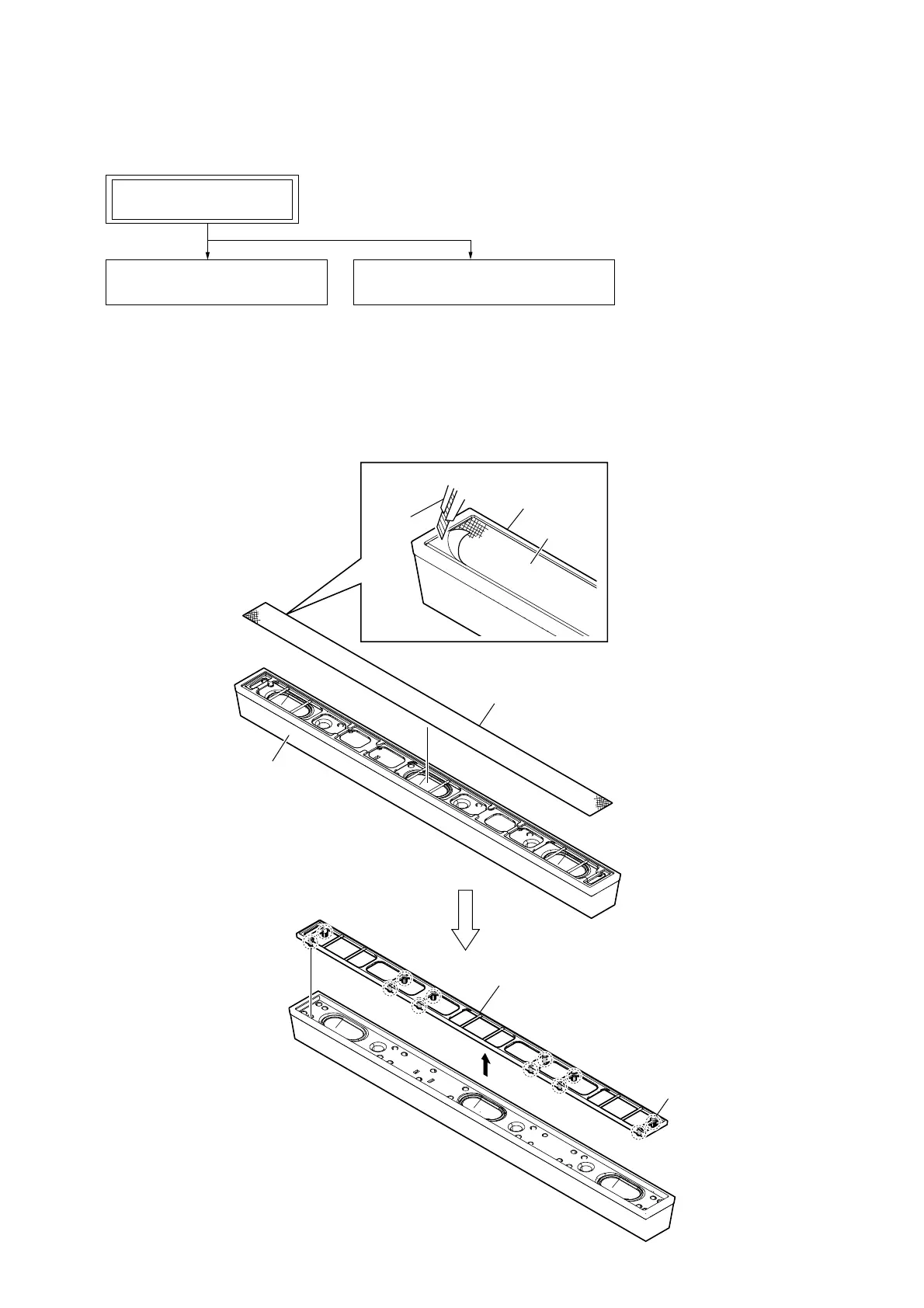

2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
2-2. FRAME GRILLE (SS-CT150)
Note 1: Please set as shown in fi gure and work.
Note 2: When assembling, exchange cloth grille and frame grille for new grille frame assy.
SET
2-2. FRAME GRILLE (SS-CT150)
(Page 3)
2-3. GRILLE FRAME ASSY (SS-CT350)
(Page 4)
bottom side
total twelve bosses
1 Cut the cloth grille with cutter etc..
cutter
etc.
grille frame assy
cloth grille
3
4 frame grille
Note 4: Frame grille cannot re-used.
2 cloth grille
Note 3: Cloth grille cannot re-used.
