Sony SS-SHAKE33 - Page 6

6
SS-SHAKE33/SHAKE44/SHAKE55/SHAKE66/SHAKE77/SHAKE88
Ver. 1.3

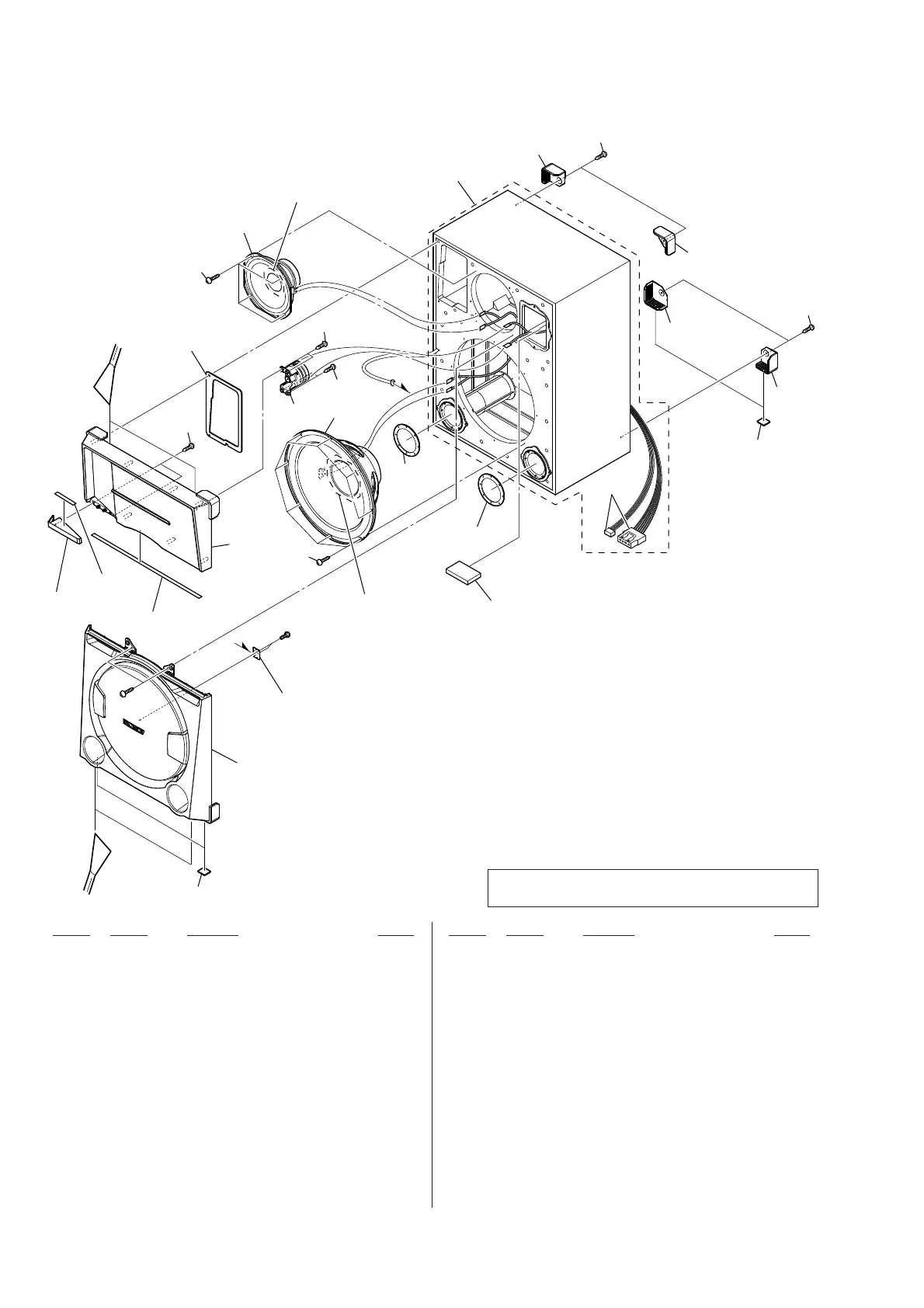

2-2. SS-SHAKE55/SHAKE66
51 4-874-614-12 SCREW (1) (3.5X14), TAPPING
52 4-462-486-02 PROTECTOR, CORNER
53 4-534-892-01 FOOT
54 4-874-614-02 SCREW (1) (3.5X14), TAPPING
55 1-826-143-61 LOUDSPEAKER (2.5CM)
(for dust cap of loudspeaker (20CM)/(35CM): gray)
55 1-826-143-81 LOUDSPEAKER (2.5CM)
(for dust cap of loudspeaker (20CM)/(35CM): black)
56 A-1999-109-A PANEL (L) ASSY, FRONT
56 A-1999-110-A PANEL (R) ASSY, FRONT
57 4-238-407-02 SCREW (1) (4X20), +BV TAPPING
58 1-858-902-21 LOUDSPEAKER (20CM)
(dust cap of loudspeaker: black)
58 1-859-038-11 LOUDSPEAKER (20CM)
(dust cap of loudspeaker: gray)
59 1-858-903-21 LOUDSPEAKER (35CM)
(dust cap of loudspeaker: black)
59 1-859-039-11 LOUDSPEAKER (35CM)
(dust cap of loudspeaker: gray)
60 A-1999-111-A PANEL (SW) ASSY, FRONT
61 A-1999-112-A CABINET (L) ASSY, SPEAKER
(SHAKE55: EXCEPT US/SHAKE66)
61 A-1999-113-A CABINET (R) ASSY, SPEAKER
(SHAKE55: EXCEPT US/SHAKE66)
61 A-1999-178-A CABINET (L) ASSY, SPEAKER (SHAKE55: US)
61 A-1999-179-A CABINET (R) ASSY, SPEAKER (SHAKE55: US)
62 1-848-271-11 CABLE WITH CONNECTOR
(LEFT CHANNEL SPEAKER)
62 1-848-271-21 CABLE WITH CONNECTOR
(RIGHT CHANNEL SPEAKER)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
This diagram is for R channel speaker.
The mechanical position of L channel is reversed.
not supplied
dust cap of loudspeaker
dust cap of loudspeaker
not supplied
not supplied
not supplied
51
51
52
61
62
52
52
52
53
54
54
59
54
58
55
56
60
57
57
not supplied
not supplied
not
supplied
#1
A
A
53
not supplied
(SPK LED board)
