Sony SS-SHAKE33 - Section 2 Exploded Views

5
SS-SHAKE33/SHAKE44/SHAKE55/SHAKE66/SHAKE77/SHAKE88

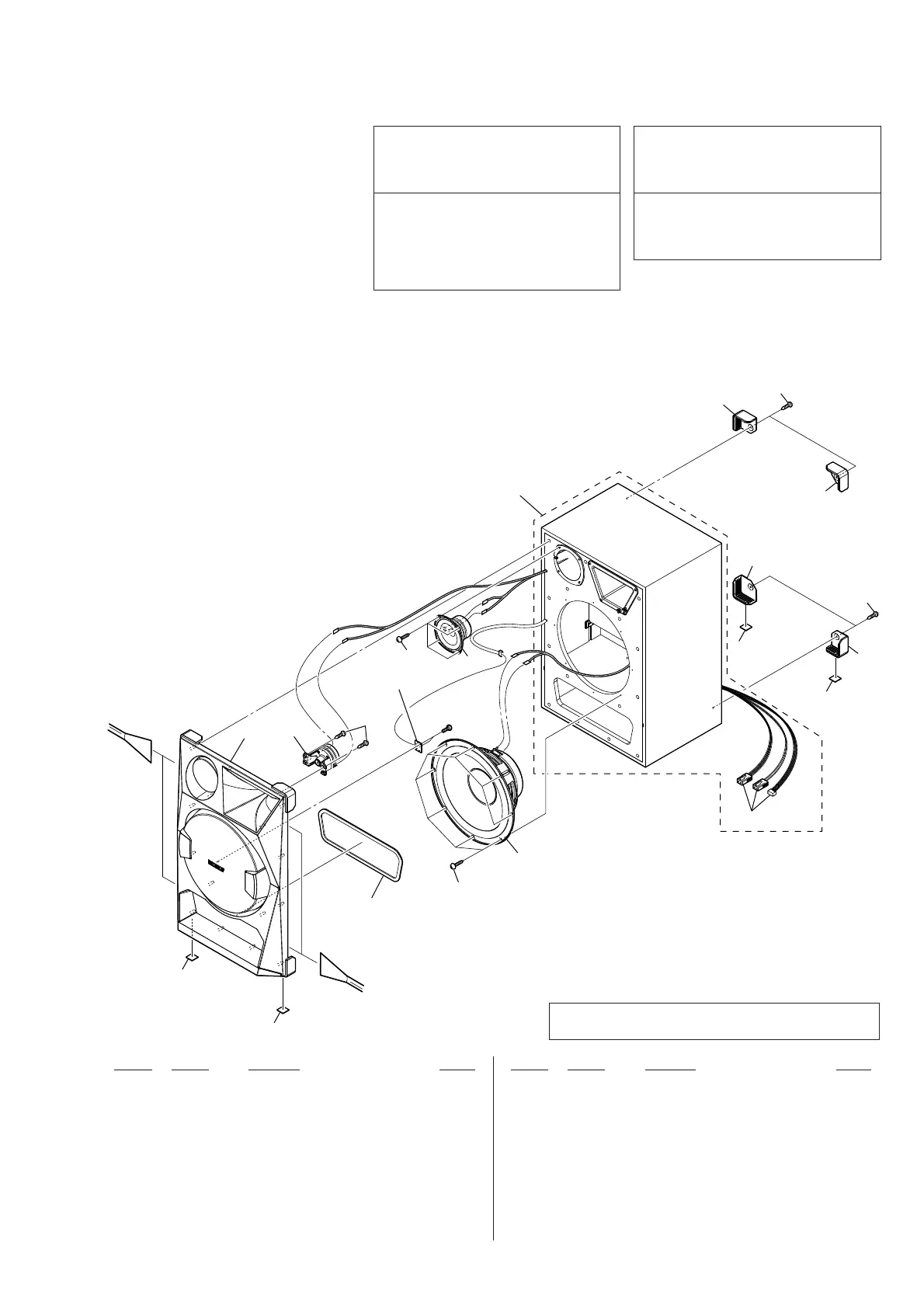

SECTION 2
EXPLODED VIEWS
The components identified by mark
0
or dotted line with mark
0
are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
The components identifi ed by mark
9
con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9
contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est rem-
placé et / ou réparé.
1
not supplied
#1
not supplied
(SPK LED board)
1
2
2
3
3
2
2
4
5
7
7
3
3
8
9
10
11
6
Note:
This diagram is for L channel speaker.
The mechanical position of R channel is reversed.
1 4-874-614-12 SCREW (1) (3.5X14), TAPPING
2 4-462-486-02 PROTECTOR, CORNER
3 4-176-619-01 FOOT, RUBBER
4 4-874-614-52 SCREW (1) (3.5X20), TAPPING
5 1-826-143-71 LOUDSPEAKER (2.5CM)
6 1-859-000-21 LOUDSPEAKER (10CM)
7 4-238-407-02 SCREW (1) (4X20), +BV TAPPING
8 1-859-009-21 LOUDSPEAKER (30CM)
9 A-1981-773-B PANEL (L) ASSY, FRONT
9 A-1981-774-B PANEL (R) ASSY, FRONT
10 A-1981-775-A CABINET (L) ASSY, SPEAKER
(SHAKE33: EXCEPT US/SHAKE44)
10 A-1981-776-A CABINET (R) ASSY, SPEAKER
(SHAKE33: EXCEPT US/SHAKE44)
10 A-1988-408-A CABINET (L) ASSY, SPEAKER (SHAKE33: US)
10 A-1988-410-A CABINET (R) ASSY, SPEAKER (SHAKE33: US)
11 1-848-136-21 CABLE WITH CONNECTOR
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.2
2-1. SS-SHAKE33/SHAKE44
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “
*
” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• Abbreviation
AR : Argentina model
AUS : Australian model
E2 : 120 V AC area in E model
E4 : African model
E12 : 220-240 V AC area in E model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MX : Mexican model
MY : Malaysia model
RU : Russian model
SAF : South African model
TH : Thai model
