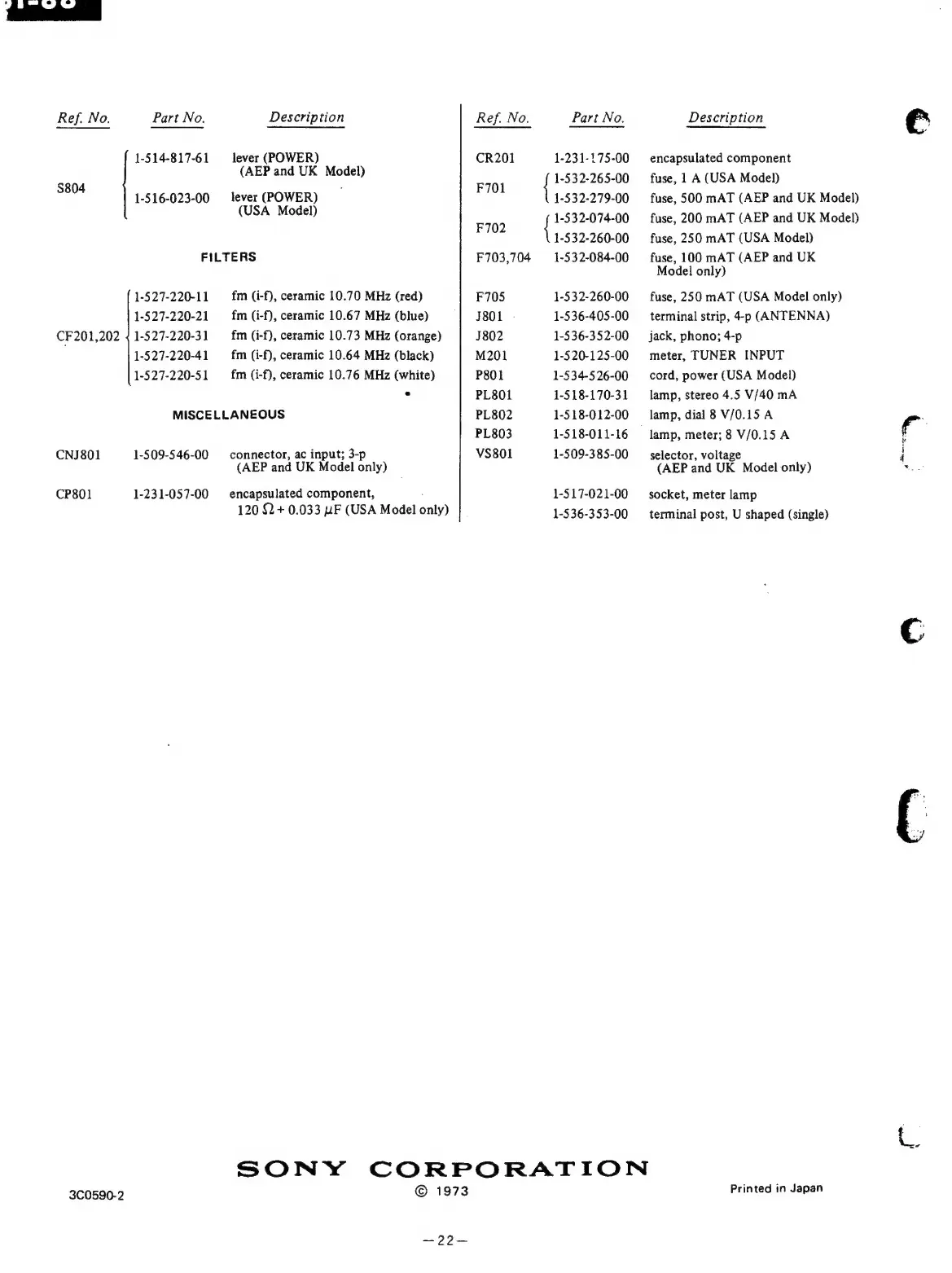

Sony ST-88 - Electrical Parts List: Filters and Miscellaneous; Filters and Miscellaneous Parts Listing

Ref. No. Part No. Description Ref. No. Part No. Description €
1-514-817-61 lever (POWER) CR201 1-231-175-00 encapsulated component
any Cer ey ae 1-532-265-00 fuse, 1 A (USA Model)
1-516-023-00 lever (POWER) 1-532-279-00 fuse, 500 mAT (AEP and UK Model)
Sar Mees) an 1-532-074-00 fuse, 200 mAT (AEP and UK Model)
af { 1-532-260-00 fuse, 250 mAT (USA Model)
FILTERS F703,704 1-532-084-00 fuse, 100 mAT (AEP and UK
Model only)
1-527-220-11 fm (i-f), ceramic 10.70 MHz (red) F705 1-532-260-00 fuse, 250 mAT (USA Model only)
1-527-220-21 fm (i-f), ceramic 10.67 MHz (blue) J801 1-536-405-00 terminal strip, 4-p (ANTENNA)
CF201,202 { 1-527-220-31 fm (i-f), ceramic 10.73 MHz (orange) J802 1-536-352-00 jack, phono; 4-p
1-527-220-41 fm (i-f), ceramic 10.64 MHz (black) M201 1-520-125-00 meter, TUNER INPUT
1-527-220-51 fm (i-f), ceramic 10.76 MHz (white) P801 1-534-526-00 cord, power (USA Model)
* PL801 1-518-170-31 lamp, stereo 4.5 V/40 mA
MISCELLANEOUS PL802 1-518-012-00 lamp, dial 8 V/0.15 A :
PL803 1-518-011-16 lamp, meter; 8 V/0.15 A ‘-
CNJ801 1-509-546-00 connector, ac input; 3-p VS801 1-509-385-00 selector, voltage i
(AEP and UK Model only) (AEP and UK Model only) ome:
CP801 1-231-057-00 encapsulated component, . 1-517-021-00 socket, meter lamp
120 S2+ 0.033 uF (USA Model only) 1-536-353-00 terminal post, U shaped (single)
