Sony ST-D50L - Page 13

SONY. raid
SERVICE MANUAL ihe

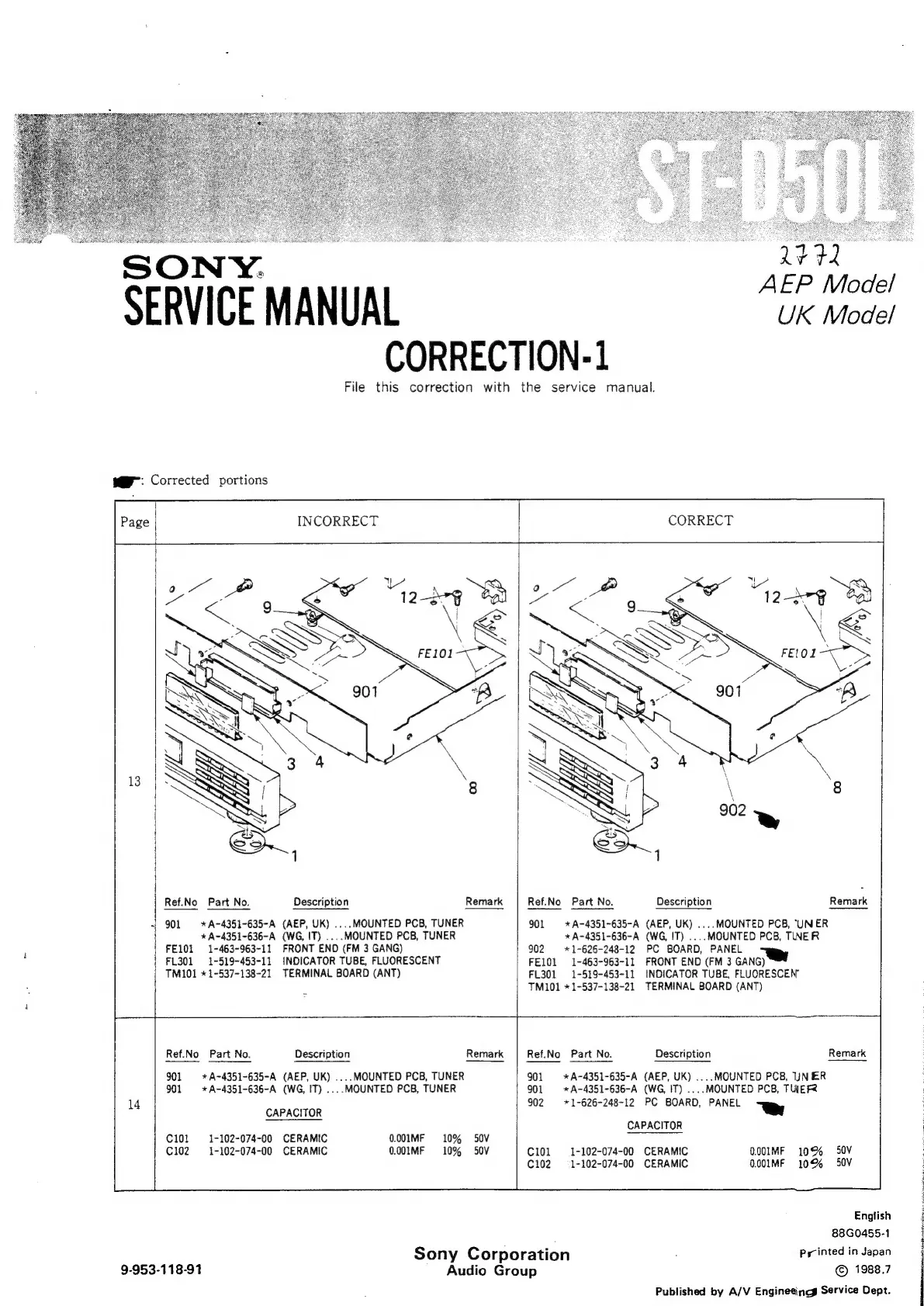

CORRECTION-1
File this correction with the service manual.
sq. Corrected portions
Page INCORRECT CORRECT
13
Ref.No Part No. Description Remark Ref.No Part No. Description Remark
+ 901 * A-4351-635-A (AEP, UK) .... MOUNTED PCB, TUNER 901 * A-4351-635-A (AEP, UK) .... MOUNTED PCB, UNER
* A-4351-636-A (WG, IT) .... MOUNTED PCB, TUNER * A-4351-636-A (WG, IT) .... MOUNTED PCB, TINER
FE101 1-463-963-11 FRONT END (FM 3 GANG) 902 * 1-626-248-12 PC BOARD, PANEL “ar
FL301 1-519-453-11 {INDICATOR TUBE, FLUORESCENT FE101 1-463-963-11 FRONT END (FM 3 GANG)
TM101 * 1-537-138-21 TERMINAL BOARD (ANT) FL301 1-519-453-11 INDICATOR TUBE, FLUORESCENT
TM101 *1-537-138-21 TERMINAL BOARD (ANT)
Ref.No Part No. Description Remark Ref.No Part No. Description Remark
901 + A-4351-635-A (AEP, UK) .... MOUNTED PCB, TUNER 901 * A-4351-635-A (AEP, UK) .... MOUNTED PCB, UNER
901 *A-4351-636-A (WG, IT) ....MOUNTED PCB, TUNER 901 * A-4351-636-A (WG, IT) .... MOUNTED PCB, TUIERR
902 *1-626-248-12 PC BOARD, PANEL
Me CAPACITOR ww
CAPACITOR
C101 1-102-074-00 CERAMIC OQ.001IMF 10% 50V
C102 1-102-074-00 CERAMIC Q.OCLMF 10% 50V C101 1-102-074-00 CERAMIC O.00IMF 100% SOV
C102 =: 1-102-074-00 CERAMIC O.00LMF 10% 50V
English
88G0455-1
Sony Corporation parinted ie leper
9-953-118-91 Audio Group © 1988.7
Published by A/V Engineeincg Service Dept.
