Sony STR-D515 - Exploded Views - Front Panel Section

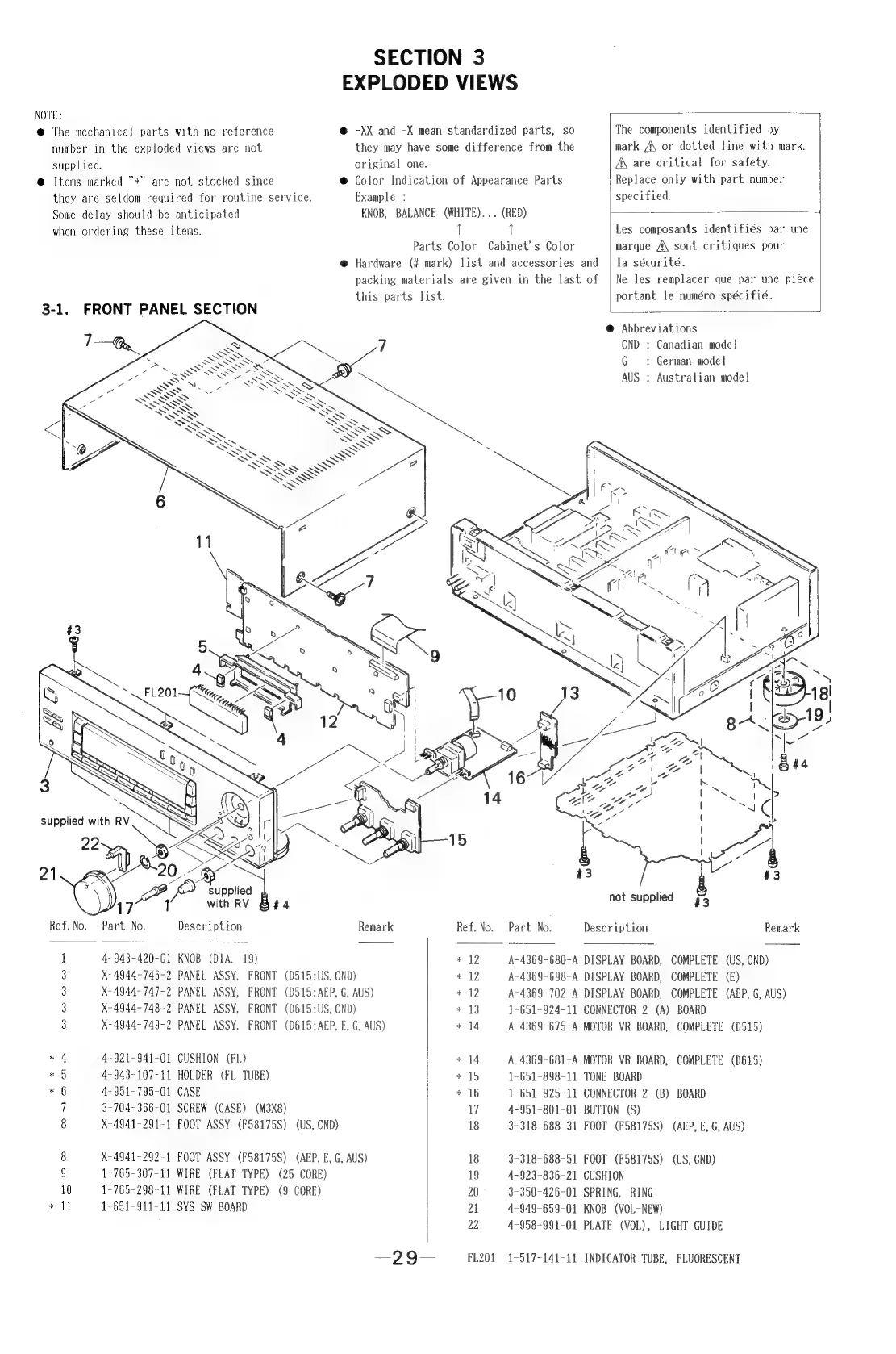

SECTION 3
EXPLODED VIEWS
NOTE: Soe ~
@ The mechanical parts with no reference @ -XX and -X mean standardized parts, so The components identified by
number in the exploded views are not they may have some difference from the mark A\ or dotted line with mark
supplied. original one. A\ are critical for safety.
@ tems marked "*" are not stocked since @ Color Indication of Appearance Parts Replace only with part number
they are seldom required for routine service. Example : specified.
Some delay should be anticipated KNOB, BALANCE (WHITE)... (RED) _— <= — -
when ordering these items. t t Les composants identifiés par une
Parts Color Cabinet's Color marque A\ sont critiques pour
@ Hardware (# mark) list and accessories and | la sécurité.
packing materials are given in the last of | Ne Jes remplacer que par une piece
this parts list. portant le numéro spécifié.
3-1. FRONT PANEL SECTION C ae
@ Abbreviations
CND : Canadian mode!
G =: German model
AUS : Australian model
~~
3
j
Ag
tied
Oy,
7
i
with
RV
#4
not
supplied
4-3
Ref. No. Part No. Description Remark Ref.No. Part No. Description Remark
1 4-943-420-01 KNOB (DIA. 19) #12 A-4369-680-A DISPLAY BOARD, COMPLETE (US, CND)
3 X-4944-746-2 PANEL ASSY, FRONT (D515:US, CND) * 12 A-4369-698-A DISPLAY BOARD, COMPLETE (E)
3 X-4944-747-2 PANEL ASSY, FRONT (D515: AEP, G, AUS) * 12 A-4369-702-A DISPLAY BOARD, COMPLETE (AEP, G, AUS)
3 X-4944-748-2 PANEL ASSY, FRONT (D615:US, CND) * 13 1-651-924-11 CONNECTOR 2 (A) BOAR
3
X-4944-749-2
PANEL
ASSY,
FRONT
(D615:AEP,
E,
G,
AUS)
*
14
A-4369-675-A
MOTOR
VR
BOARD,
COMPLETE
(D515)
a4 4-921-941-01 CUSHION (FL) * 14 A-4369-681-A MOTOR VR BOARD, COMPLETE (D615)
* 5 4-943-107-11 HOLDER (FL TUBE) | * 15 1-651-898-11 TONE BOARD
* 6 4-951-795-01 CASE * 16 1-651-925-11 CONNECTOR 2 (B) BOAR
7 3-704-366-01 SCREW (CASE) (M3X8) 17 4-951-801-01 BUTTON (S)
8
X-4941-291-1
FOOT
ASSY
(F58175S)
(US,
CND)
18
3-318-688-31
FOOT
(F58175S)
(AEP,
E,
G,
AUS)
8 X-4941-292-1 FOOT ASSY (F58175S) (AEP, E, G, AUS) 18 3-318-688-51 FOOT (F58175S) (US, CND)
9 1-765-307-11 WIRE (FLAT TYPE) (25 CORE) 19 4-923-836-21 CUSHION
10 1-765-298-11 WIRE (FLAT TYPE) (9 CORE) 20 3-350-426-01 SPRING, RING
«(i 1-651-911-11 SYS SW BOARD 21 4-949-659-01 KNOB (VOL-NEW)
22 4-958-991-01 PLATE (VOL), LIGHT GUIDE
—29— FL201 1-517-141-11 INDICATOR TUBE, FLUORESCENT
