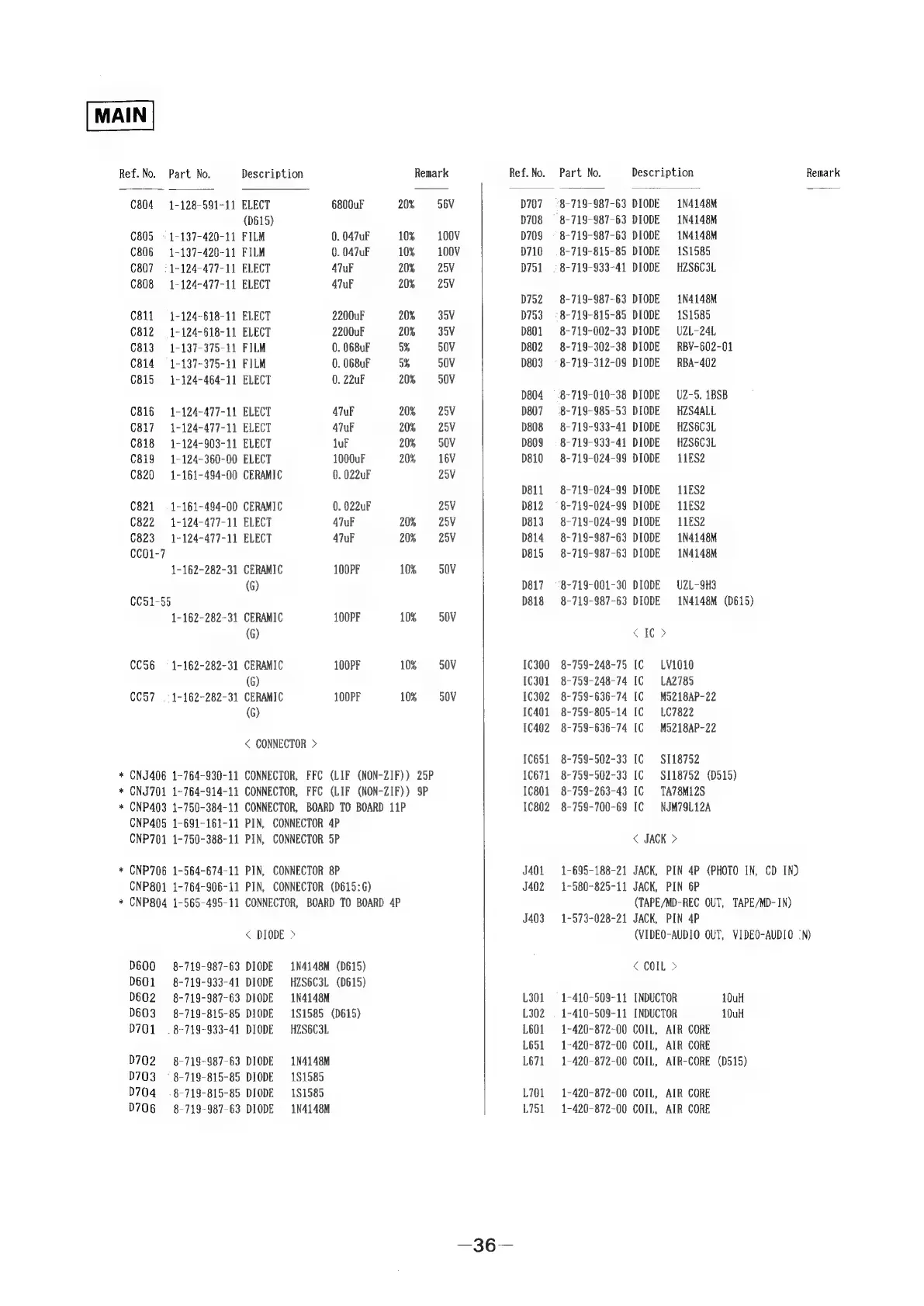

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C804 =1-128-591-11 ELECT 6800uF 20% 56V D707. «=: 8-719-987-63 DIODE 1N4148M
(D615) D708 = 8-719-987-63 DIODE 1N4148M
C805 = 1-137-420-11 FILM 0. 047uF 10% 100V D709 = 8-719-987-63 DIODE 1N4148M
C806 = =1-137-420-11 FILM 0. 047uF 10% 100V D710 «= 8-719-815-85 DIODE 181585
C807 = 1-124-477-11 ELECT 47uF 20% 25V D751 = 8-719-933-41 DIODE HZS6C3L
C808 1-124-477-11 ELECT 47uF 20% 25V
D752 8-719-987-63 DIODE 1N4148M
C811 = 1-124-618-11 ELECT 2200uF 20% 35V D753 = 8-719-815-85 DIODE 181585
6812 = 1-124-618-11 ELECT 2200uF 20% 35V D801 8-719-002-33 DIODE UZL-24L
C813 1-137-375-11 FILM 0. 068uF 5% 50V D802 8-719-302-38 DIODE RBY-602-01
€814 = 1-137-375-11 FILM 0. O68uF 5% 50V D803 = 8-719-312-09 DIODE RBA-402
C815 1-124-464-11 ELECT 0. 22uF 20% 50V
D804 «=: 8-719-010-38 DIODE UZ-5. 1BSB
C816 = 1-124-477-11 ELECT 47uF 20% 25V D807 =: 8-719-985-53 DIODE HZS4ALL
C817 1-124-477-11 ELECT 47uF 20% 25V D808 8-719-933-41 DIODE HZS6C3L
C818 =1-124-903-11 ELECT luF 20% 50V D809 = 8-719-933-41 DIODE HZS6C3L
C819 1-124-360-00 ELECT 1000uF 20%, 16V D810 8-719-024-99 DIODE i1£S2
C820 ~=1-161-494-00 CERAMIC 0. 022uF 25V
D811 «8-719-024-99 DIODE 11ES2
C821 = 1-161-494-00 CERAMIC 0. 022uF 25V D812 = 8-719-024-99 DIODE 11ES2
C822 1-124-477-11 ELECT 47uF 20% 25V D813 © 8-719-024-99 DIODE 11ES2
C823 1-124-477-11 ELECT 47uF 20% 25V D814. 8-719-987-63 DIODE 1N4148M
CC01-7 D815 8-719-987-63 DIODE 1N4148M
1-162-282-31 CERAMIC 100PF 10% 50V
(G) D817 =: 8-719-001-30 DIODE UZL-SH3
0051-55 D818 8-719-987-63 DIODE 1N4148M (D615)
1-162-282-31 CERAMIC 100PF 10% 50V
(G) < 1 >
CC56 = 1-162-282-31 CERAMIC 100PF 10% 50V 1C300 8-759-248-75 IC LV1010
(6) 1€301 8-759-248-74 IC LA2785
CC57 = 1-162-282-31 CERAMIC 100PF 10% 50V 1€302 8-759-636-74 IC M5218AP-22
(G) 1C401 8-759-805-14 IC C7822
1C402 8-759-636-74 IC M5218AP-22
< CONNECTOR >
1C651 8-759-502-33 IC $118752
* CNJ406 1-764-930-11 CONNECTOR, FFC (LIF (NON-ZIF)) 25P 1€671 8-759-502-33 IC $118752 (D515)
* CNJ701 1-764-914-11 CONNECTOR, FFC (LIF (NON-ZIF)) $P 1¢801 8-759-263-43 IC TA78M12S
* CNP403 1-750-384-11 CONNECTOR, BOARD TO BOARD 11P 1€802 8-759-700-69 IC NJM79L12A
CNP405 1-691-161-11 PIN, CONNECTOR 4P
CNP701 1-750-388-11 PIN, CONNECTOR 5P < JACK >
* CNP706 1-564-674-11 PIN, CONNECTOR 8P J401 1-695-188-21 JACK, PIN 4P (PHOTO IN, CD IN)
CNP801 1-764-S06-11 PIN, CONNECTOR (D615:G) J402 1-580-825-11 JACK, PIN 6P
* CNP804 1-565-495-11 CONNECTOR, BOARD TO BOARD 4P (TAPE/MD-REC OUT, TAPE/MD-IN)
J403. 1-573-028-21 JACK, PIN 4P
< DIODE > (VIDEO-AUDIO OUT, VIDEO-AUDIO ‘N)
D600 8-719-9$87-63 DIODE 1N4148M (D615) < COIL >
D601 8-719-933-41 DIODE HZS6C3L (D615)
D602 8-719-987-63 DIODE 1N4148M L301 = 1-410-509-11 INDUCTOR 10uH
D603 8-719-815-85 DIODE 181585 (D615) L302 = 1-410-509-11 INDUCTOR 10uH
D701 = 8-719-933-41 DIODE HZS6C3L L601 1-420-872-00 COIL, AIR CORE
L651 1-420-872-00 COIL, AIR CORE
D702 8-719-987-63 DIODE 1N4148M L671 1-420-872-00 COIL, AIR-CORE (D515)
D703 = 8-719-815-85 DIODE 181585
D704 = 8-719-815-85 DIODE 181585 L701 1-420-872-00 COIL, AIR CORE
D706 8-719-987-63 DIODE 1N4148M L751 1-420-872-00 COIL, AIR CORE
