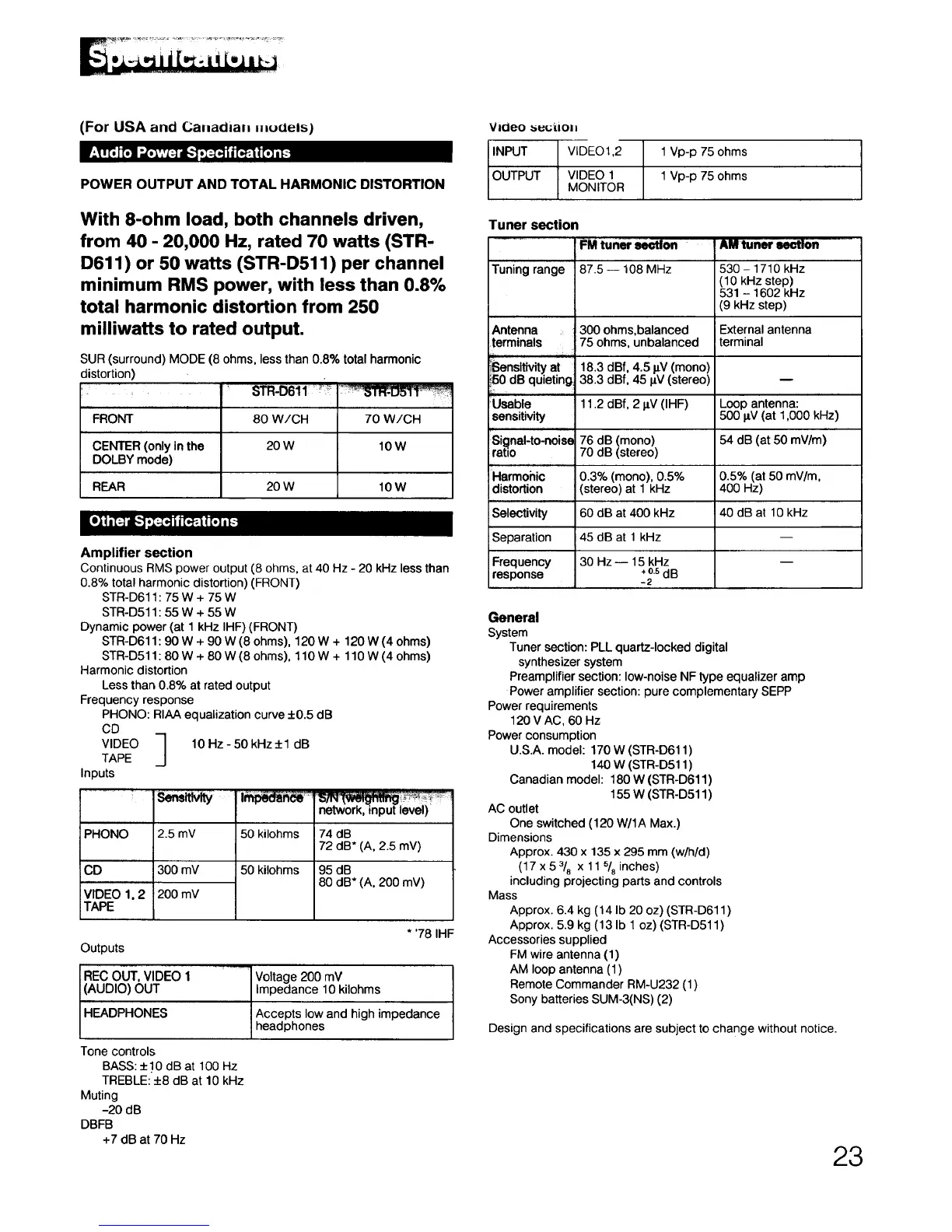

POWER OUTPUT AND TOTAL HARMONIC DISTORTION
With 8-ohm load, both channels driven,
from 40 - 20,000 Hz, rated 70 watts (STR-
D611 ) or 50 watts (STR-D511) per channel
minimum RMS power, with less than 0.8%
total harmonic distortion from 250
milliwatts to rated output.
SUR (surround) MODE (8 ohms, less than 0.8% total harmonic
distortion)
STR.D611 =,_ _-
' FRONT 80 W/CH 70 W/CH
CENTER (only In the 20 W 10 W
DOLBY mode)
REAR 20 W 10 W
Amplifier section
Continuous RMS power output (8 ohms, at 40 Hz - 20 kHz less than
0.8% total harmonic distortion) (FRONT)
STR-D611: 75 W + 75 W
STR-D511: 55 W + 55 W
Dynamic power (at 1 kHz IHF) (FRONT)
STR-D611: 90 W + 90 W (8 ohms), 120 W + 120 W (4 ohms)
STR-D511:80 W + 80 W (8 ohms), 110 W + 110 W (4 ohms)
Harmonic distortion
Less than 0.8% at rated output
Frequency response
PHONO: RIAA equalization curve +0.5 dB
CD
VIDEO
TAPE
Inputs
PHONO
CD
VIDEO 1, 2
TAPE
2.5 mV
300 mV
200 mV
10 Hz - 50 kHz +1 dB
50 kilohms
50 kilohms
networK, tnpu[ level)
74 dB
72 dB* (A, 2.5 mY)
95 dB
80 dB* (A, 200 mY)
Outputs
REC OUT, VIDEO 1
(AUDIO) OUT
HEADPHONES
Tone controls
BASS: +10 dB at 100 Hz
TREBLE: +8 dB at 10 kHz
Muting
-20 dB
DBFB
+7 dB at 70 Hz
* '78 IHF
Voltage 200 mV
Impedance 10kilohms
Accepts low and high impedance
headphones
Vaaeo _uutioil
INPUT VIDEO 1,2
OUTPUT VIDEO 1
MONITOR
1 Vp-p 75 ohms
1 Vp-p 75 ohms
Tuner section
FM tuner sectlon AM tun_eectlon
Tuning range 87.5 -- 108 MHz 530 - 1710 kHz
(10 kHz step)
531 - 1602 kHz
(9 kHz step)
Antenna 300 ohms,balanced External antenna
:_:terminals 75 ohms, unbalanced terminal
'Sensitivity at 18.3 dBf, 4.5 IW (mono)
50 dB quieting 38.3 dBf, 45 l_V(stereo)
'Usable 11.2 dBf, 2 llV (IHF) Loop antenna:
sensitivity 500 llV (at 1,000 kHz)
Signal-to-noise 76 dB (mono) 54 dB (at 50 mV/m)
ratio 70 dB (stereo)
Harmonic 0.3% (mono), 0.5% 0.5% (at 50 mV/m,
distortion (stereo) at 1 kHz 400 Hz)
Selectivity 60 dB at 400 kHz 40 dB at 10 kHz
Separation 45 dB at 1 kHz
Frequency 30 Hz- 15 kHz
,0.5 dB
response -2
General
System
Tuner section: PLL quartz-locked digital
synthesizer system
Preamplifier section: low-noise NF type equalizer amp
Power amplifier section: pure complementary SEPP
Power requirements
120 V AC, 60 Hz
Power consumption
U.S.A. model: 170 W (STR-D611)
140 W (STR-D511)
Canadian model: 180 W (STR-D611)
155 W (STR-D511)
AC outlet
One switched (120 W/1A Max.)
Dimensions
Approx. 430 x 135 x 295 mm (w/h/d)
(17 x53/8 x 11 5/8inches )
including projecting parts and controls
Mass
Approx. 6.4 kg (14 Ib 20 oz) (STR-D611 )
Approx. 5.9 kg (13 Ib 1 oz) (STR-D511 )
Accessories supplied
FM wire antenna (1)
AM loop antenna (1)
Remote Commander RM-U232 (1)
Sony batteries SUM-3(NS) (2)
Design and specifications are subject to change without notice.
